| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:GT15-25 FORWARD

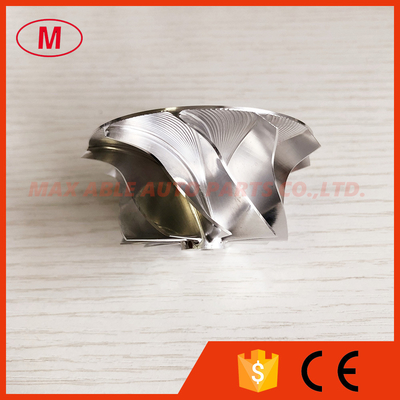

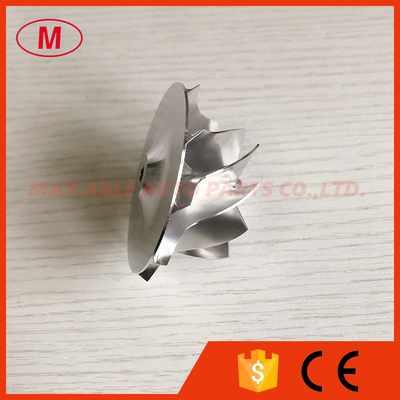

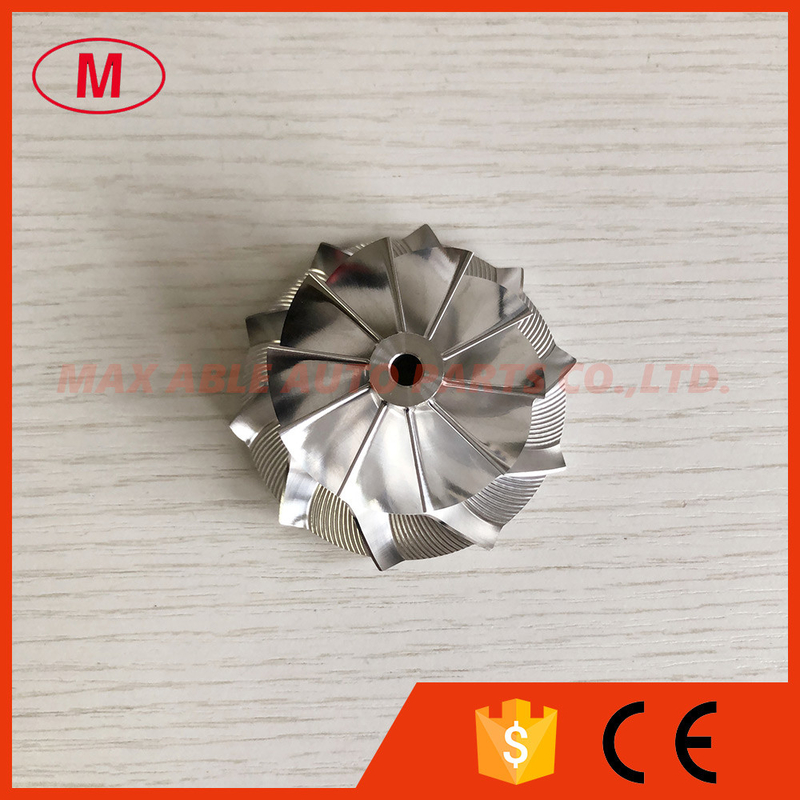

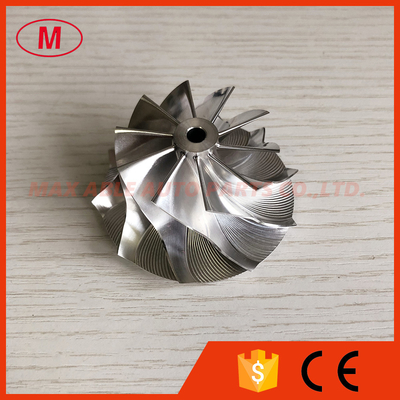

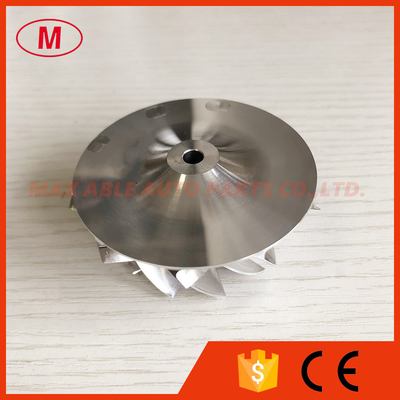

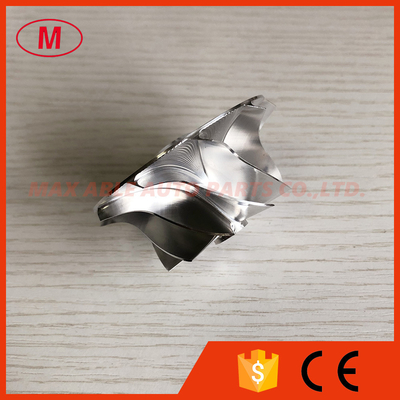

2. GT15-25 770240-0001U 44.50/60.40mm 10+0 blades performance turbo milling/aluminum 2618/billet compressor wheel for 777853-0011 N57D OL
3.Size:
Nose diameter:11.92mm
Inducer:44.50mm
Exducer:60.40mm
Tapered tip exducer:64.48mm
Tip height:4.53mm
Superback:3.71mm
Overall height:32.40mm
Bore size:5.08mm
Trailing angle:60
Cutback:6.0
Blade height:26.99mm
Splitter height:0.00
Splitter height:0.00
10+0 blades forward
Tapered tip angle:30 degree
Forward rotation
It is for OE compressor housing
5.if you want more details, please send email to me.
We can produce as your requirement.The minimun order is 5pcs .
All the turbine shaft and compressor wheel have balanced .
The more models we also have.
