| Model Number: | GT3788 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 63.42/88.25mm | Type: | Turbochargers |
|---|
1. MODEL:GT3788 forward

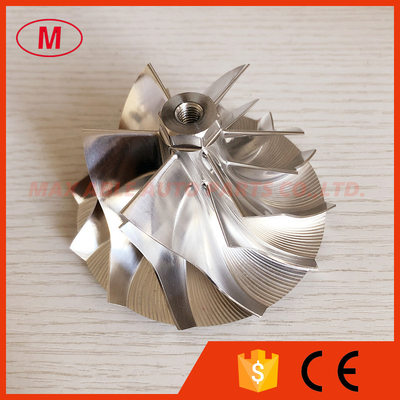

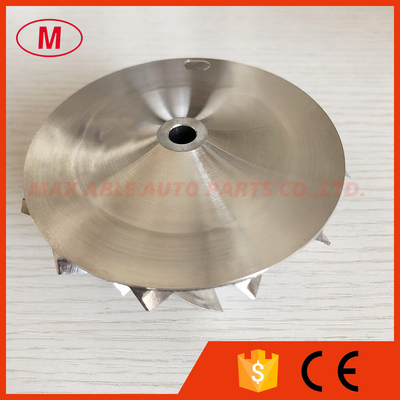

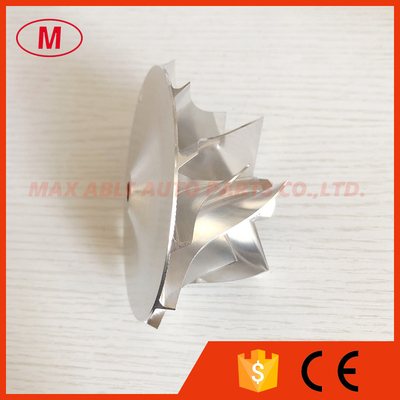

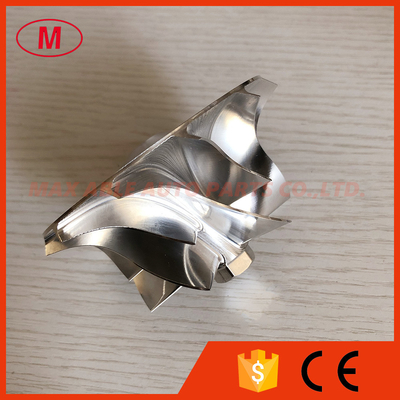

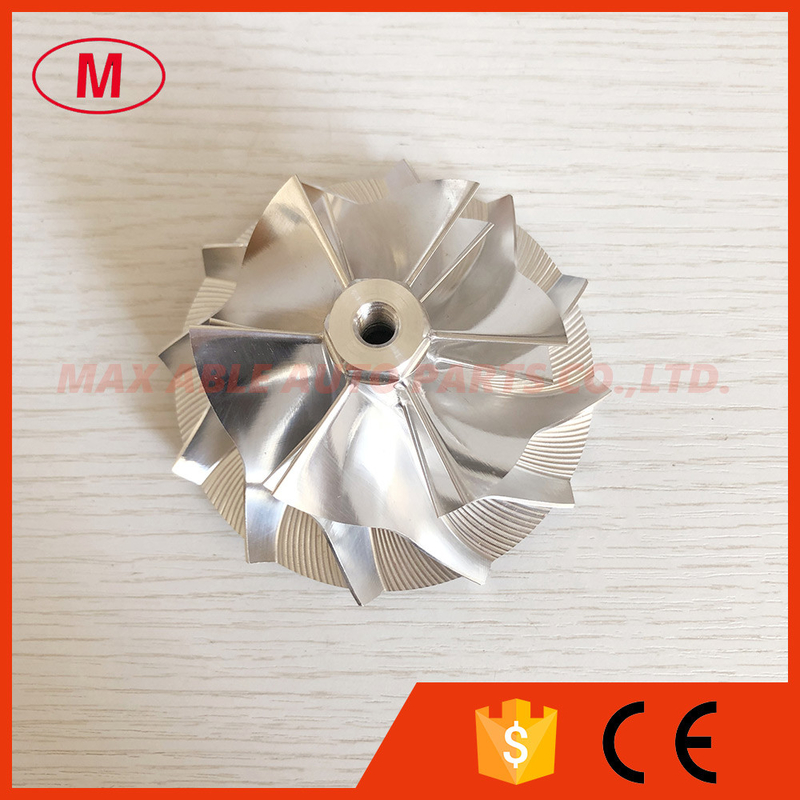

2. GT3788 449521-0026 63.42/88.25mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for Chevy 6.6L 766172-0001
Size:
inducer:63.42mm
Exducer:88.25mm
Nose Diameter:17.67mm
Tapered tip exducer:93.85mm
Tip height:5.85mm
Superback:5.30mm
Bore type:Threaded-M7x1.0LHT
Overall height:54.00mm
Bore size:7.48mm
Trailing angle:60
Cutback:0.0
Splitter height:28.10mm
SP height angle:-0.80
Blades height:41.08mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.Any questions please send email to me.
6.Application:
2001-2004 Duramax LB7 766172-0001
Chevy 6.6L
