| Model Number: | GT3788LVA |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 60.98/88.25mm | Type: | Turbochargers |
|---|
1. MODEL:GT3788LVA forward

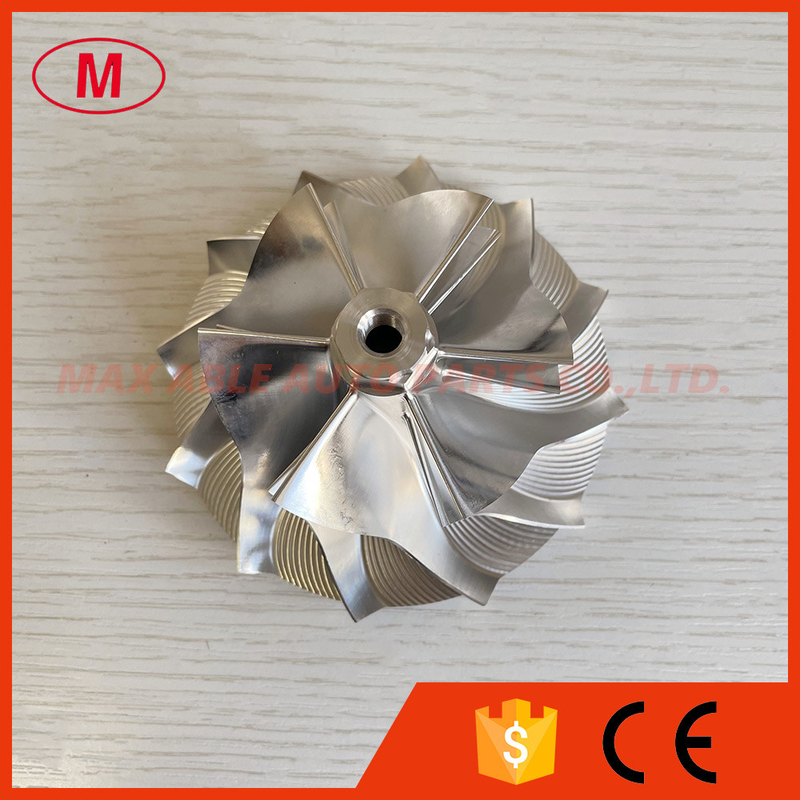

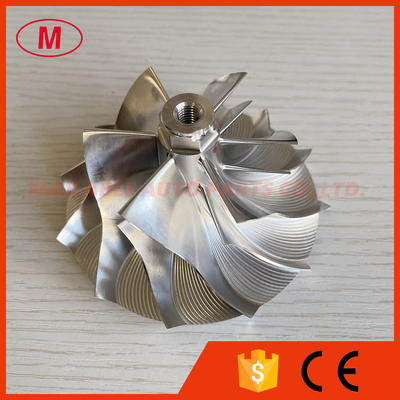

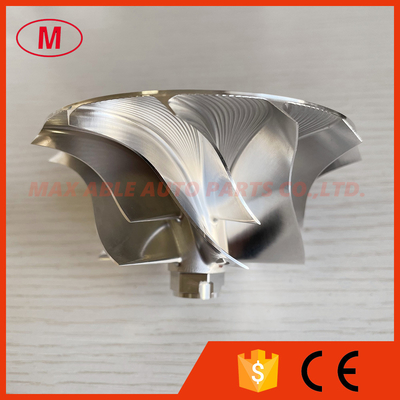

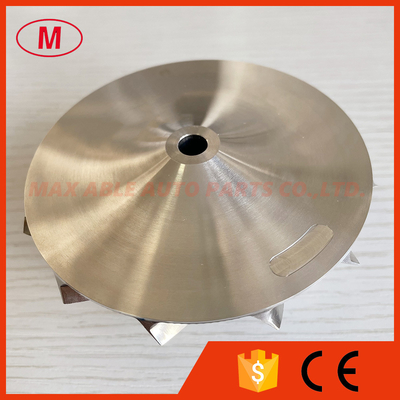

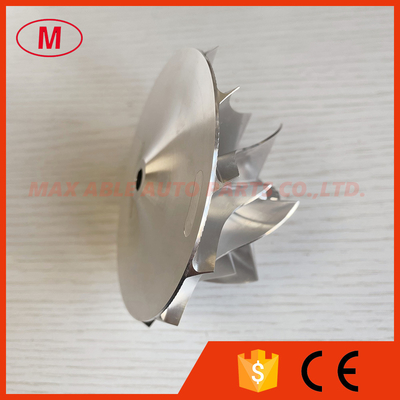

2. GT3788LVA 753610-0004 60.98/88.25mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for Chevy 6.6L .
3.Size:
Nose diameter:17.35mm
inducer:60.98mm
Exducer:88.25mm
Tapered tip exducer:93.98mm
Tip height:5.97mm
Superback:5.30mm
Overall height:50.93mm
Bore size:7.48mm
Trailing angle:45
Bore type:Threaded-M7x1.0LHT
Cutback:0.0
SP Height angle:-5.50
Blades height:36.09mm
Splitter height:25.90mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.Any questions please send email to me.
6.Application:
2006-2007 Duramax LBZ (8-98003-3661)
Chevy 6.6L
