| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Type: | Turbochargers |
|---|
1. MODEL:TD05H forward

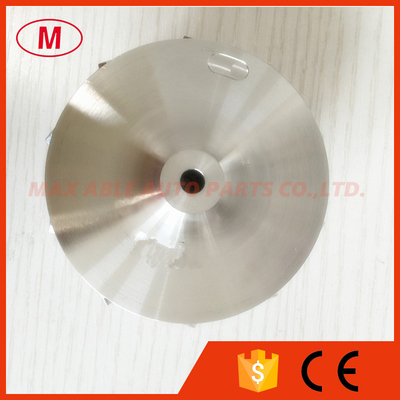

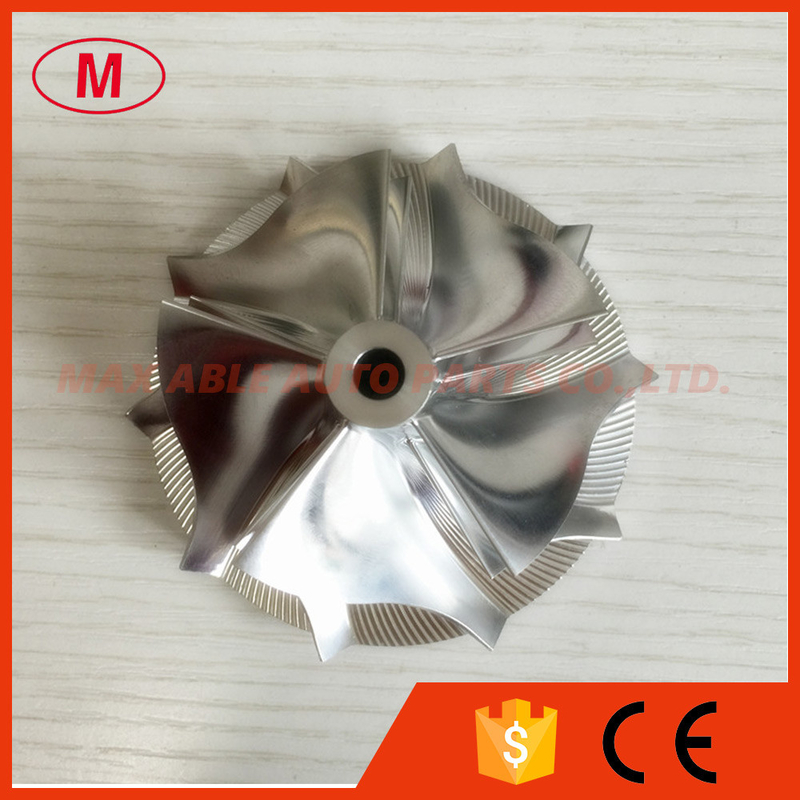

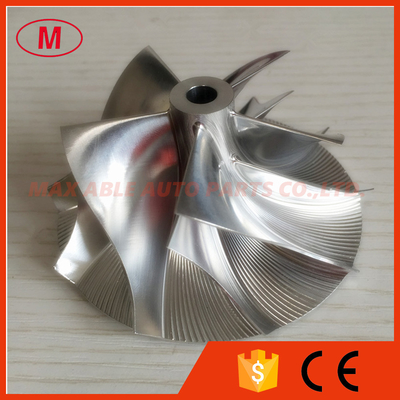

2.TD05H 5+5 blades 60.50/78.00mm Turbocharger Billet/aluminum 2618/milling compressor wheel
3.Size:
Nose diameter:13.92mm
Inducer:60.50mm
Exducer:78.00mm
Tapered tip exducer:83.54mm
Tip height:5.80mm
Superback:2.60mm
Overall height:37.01mm
bore size :6.50mm
bore type:through
Trailing angle:50
Cutback:2.5
Blades height:31.90mm
Splitter height:20.90mm
SP Height angle:-1.60
5+5 Blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
