| Model Number: | TF035-14G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Type: | Turbochargers |
|---|
1. MODEL:TF035 14G Forward

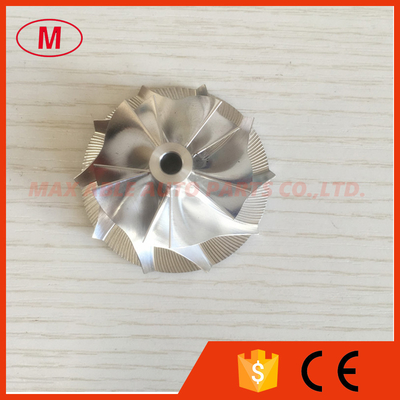

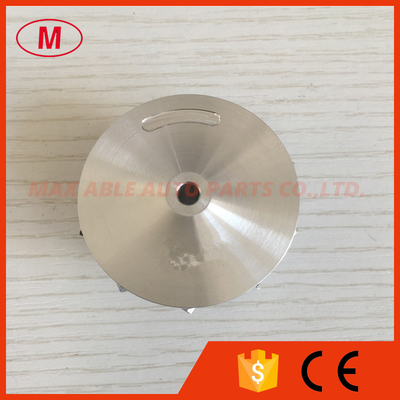

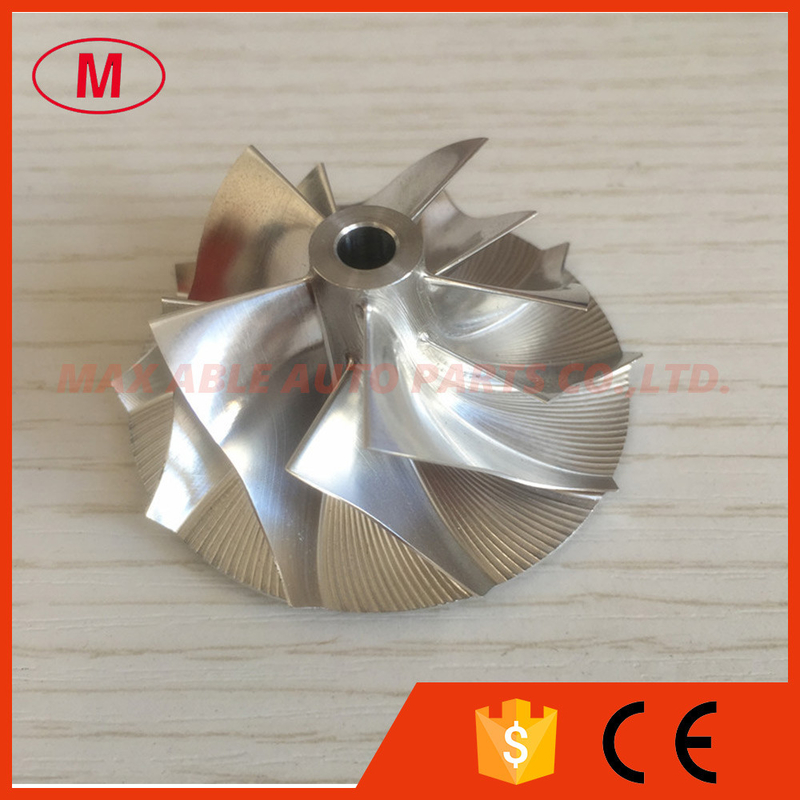

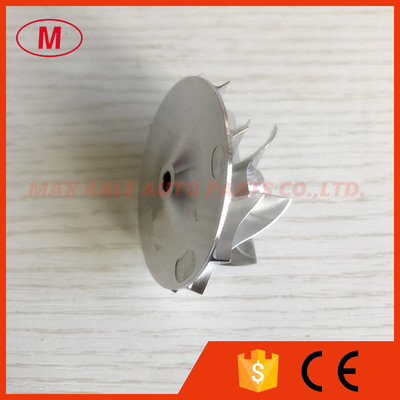

2.TF035 14G 49377-00015 39.40/50.97mm 6+6 blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel for 49135-03410
3.Size:
Nose diameter:12.29mm
inducer:39.40mm
Exducer:50.97mm
Tapered tip exducer:54.78mm
Tip height:4.30mm
Superback:2.05mm
Overall height:25.03mm
Bore size:5.00mm
Trailing angle:60
Cutback:0.0
SP Height angle:0.00
Blades height:20.72mm
Splitter height:13.25mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.Any questions please send email to me
