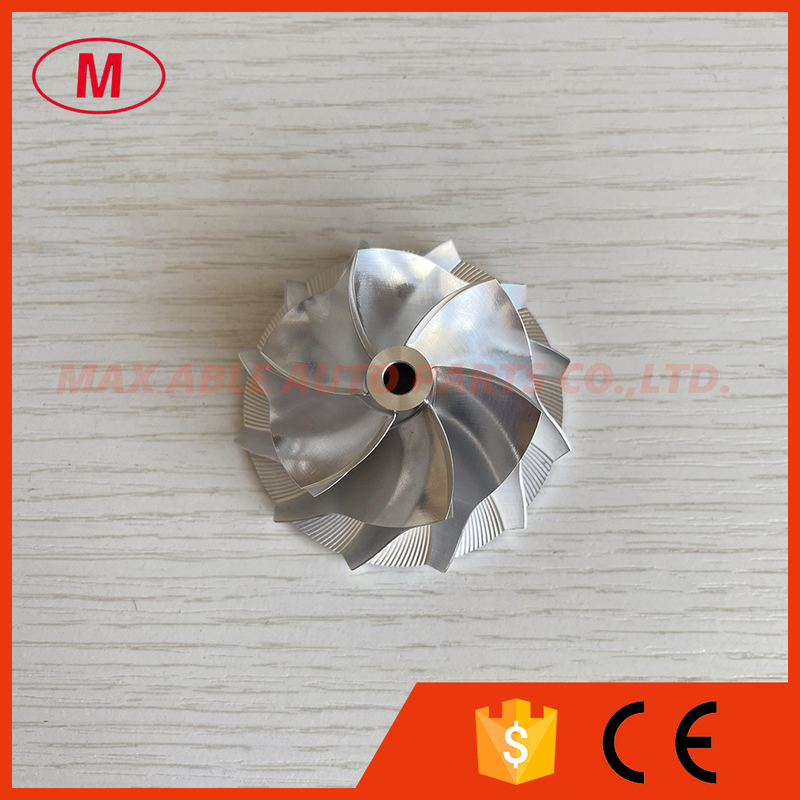

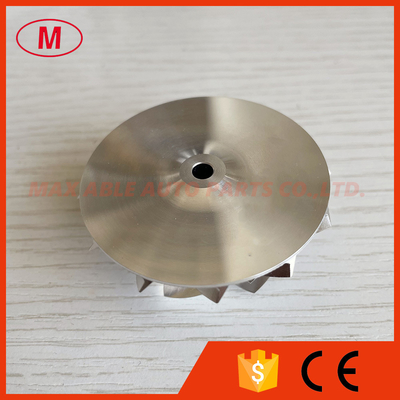

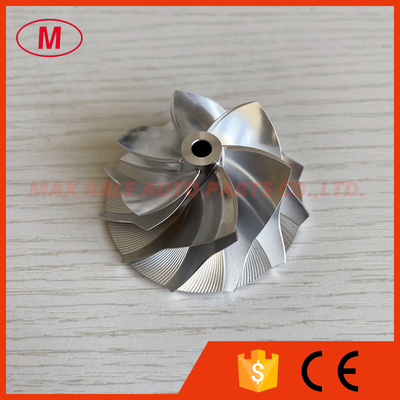

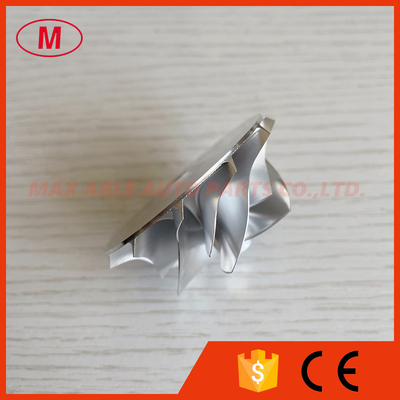

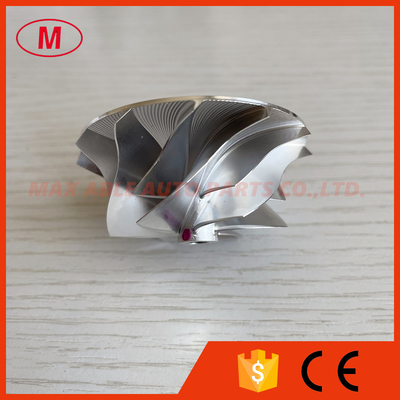

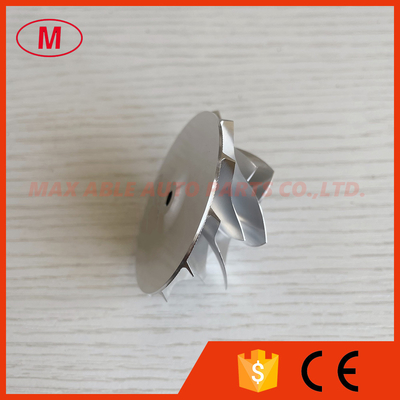

RHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheel

RHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheel

    • RHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheel
    • RHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheel
    • RHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheel
    • RHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheel
    • RHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheel
    • RHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheel
    • RHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Model Number: RHF3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:RHF3 reverse
    2.RHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheel
    3.Size:
    Nose diameter:9.00mm
    Inducer:39.50mm
    exducer:51.00mm
    Tapered tip exducer:54.33mm
    Tip height:3.68mm
    Superback:1.06mm
    bore size :4.41mm
    bore type:through
    Overall height:24.00mm
    Cutback:2.5mm
    Trailing Angle:60 degree
    SP height angle:-4.70
    Splitter height:14.69mm
    Blades height:21.00mm
    6+6 blades reverse
    It is custom size ,please check carefully before buying.
    Tapered tip Angle:30 degree
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    RHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheel



    RHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheelRHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheelRHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheelRHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheelRHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheelRHF3 reverse 39.50/51.00mm 6+6blades LEP Style Performance Design Turbo milling/aluminum 2618/billet compressor wheel
