| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | - |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:FORWARD

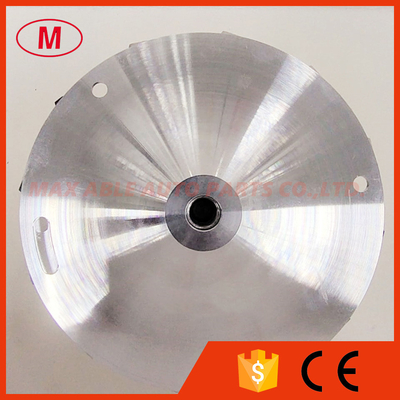

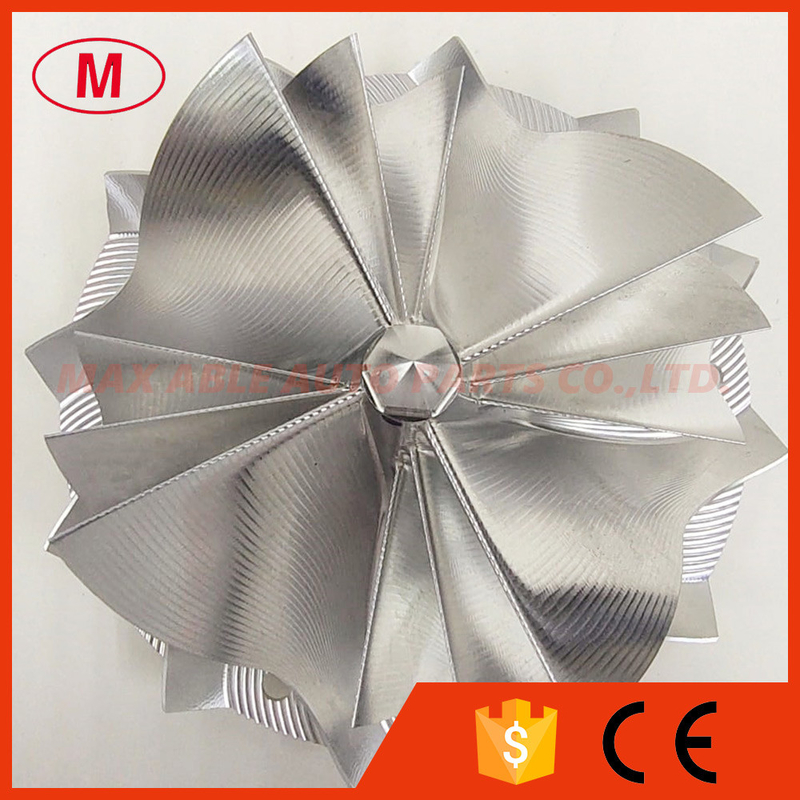

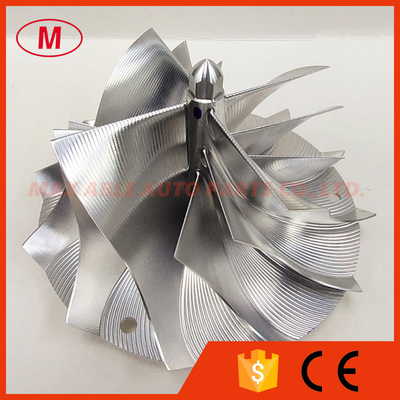

2. 85.00/113.00mm 4+4+4 blades Point Milling, Extreme Nose, Performance Design turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.00mm
inducer:85.00mm
Exduder:113.00mm
Tapered tip exducer:121.01mm
Tip height:7.94mm
Superback:8.41mm
Overall height:70.90mm
bore size :10.00mm
Trailing angle:50 degree
Bore type:Boreless M10x1.5LHT
Cutback:0.0mm
SP height angle:-10.50
Blade height:49.29mm
Splitter height:34.70mm
4+4+4blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
