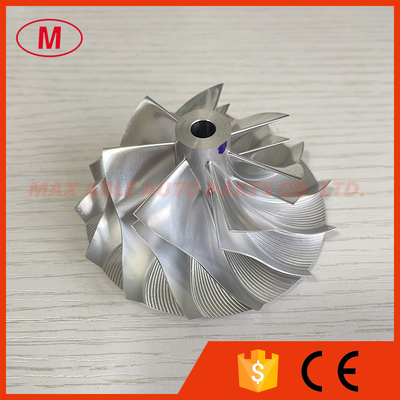

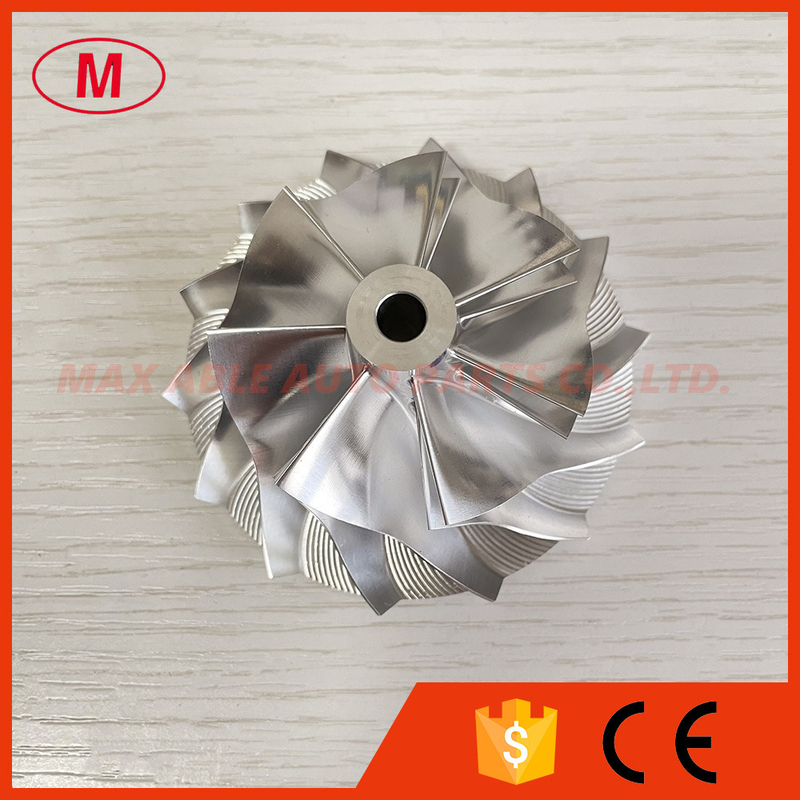

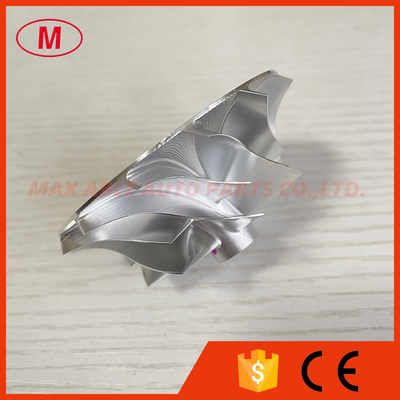

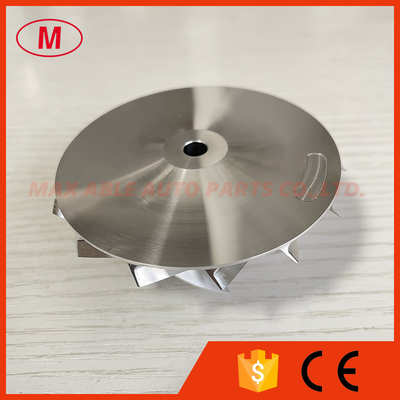

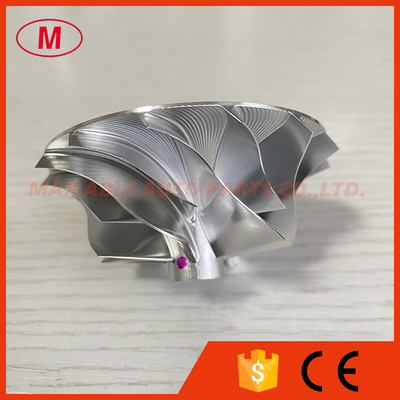

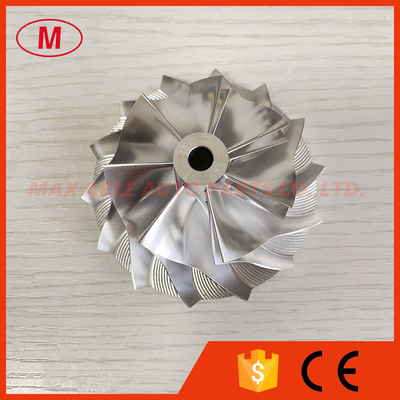

GT3576 53.11/73.00mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel

Contact Now

Detailed Product Description

1. MODEL:GT3576 forward

2.GT3576 53.11/73.00mm 7+7 blades turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:14.06mm

Inducer:53.11mm

exducer:73.00mm

Tapered tip exducer:77.78mm

Tip height:5.14mm

Superback:2.32mm

bore size :6.35mm

bore type:through

Overall height:34.75mm

Trailing angle:60 degree

Cutback:6.0mm

Blade height:27.63mm

Splitter height:18.35mm

SP Height angle:-0.70

7+7 blades forward

It is custom size ,please check carefully before buying.

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
