| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF55 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1.Model:RHF55 forward

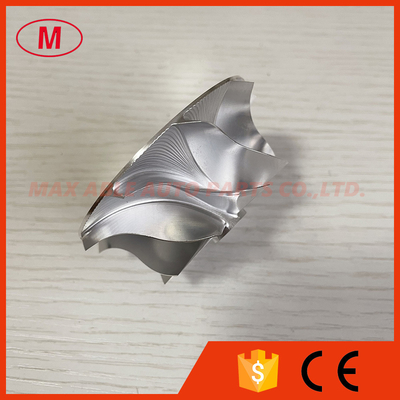

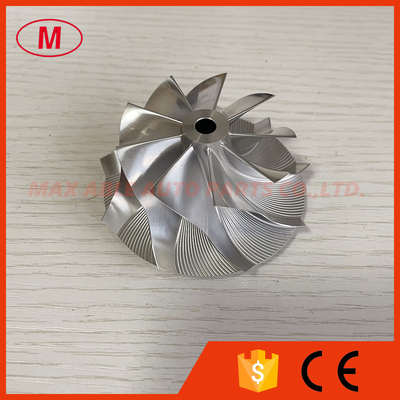

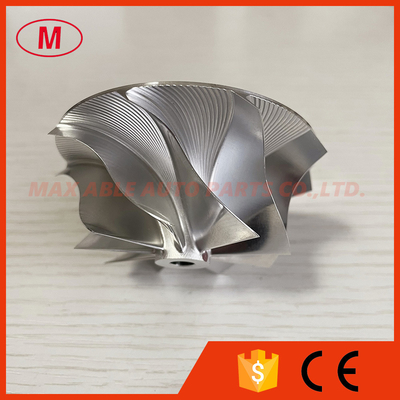

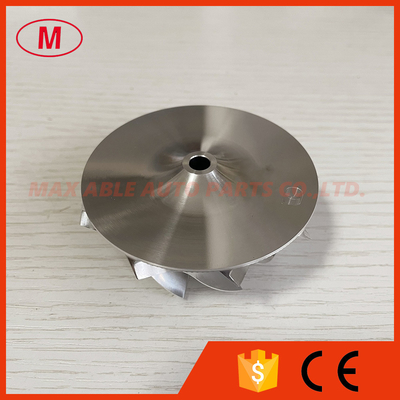

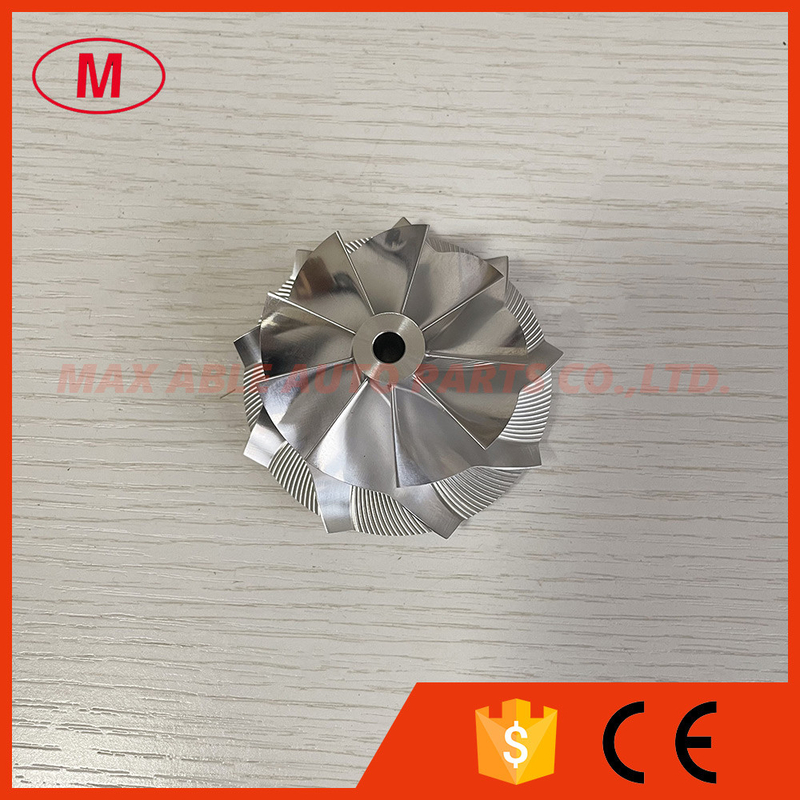

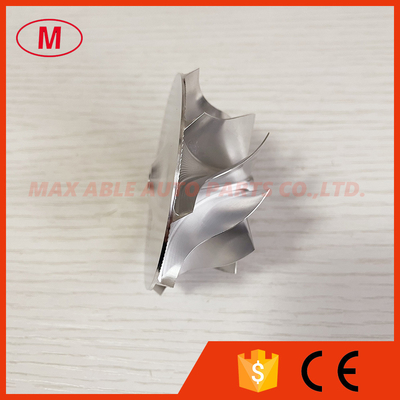

2. RHF55 52.56/68.01mm 9+0 Blades milling/aluminum 2618/billet turbo compressor wheel collar:10.00mm
3.Size:
Nose diameter:13.51mm
Inducer:52.56mm
Exducer:68.01mm
Tapered tip exducer :73.05mm
Tip height:5.37mm
Superback:3.68mm
Overall height:33.00mm
Bore Size:6.10mm
bore type:through
Trailing angle:60 degree
Cutback:0.0
SP height angle:0.00
Splitter height:0.00mm
Blades height:27.32mm
9+0 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price.
5.if you want to know more details ,please send email to me !
We have more model you want.
All the compressor wheels have been balanced.
