| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | G25-660 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |

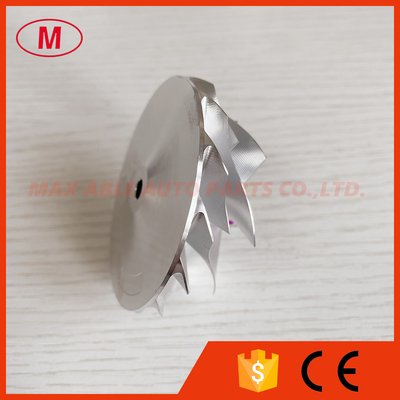

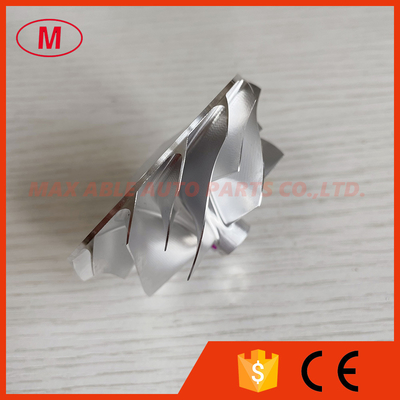

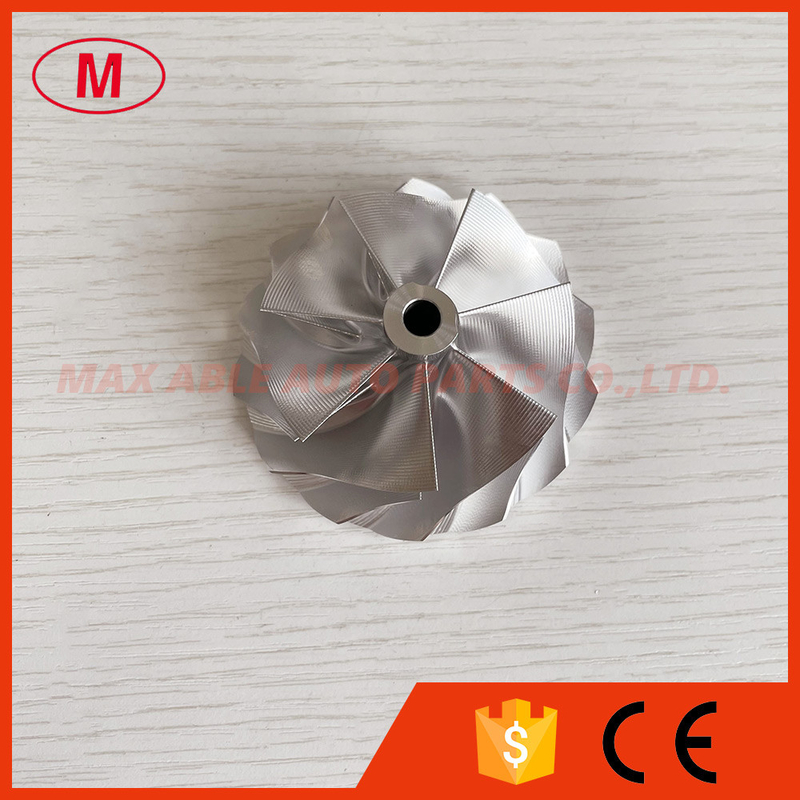

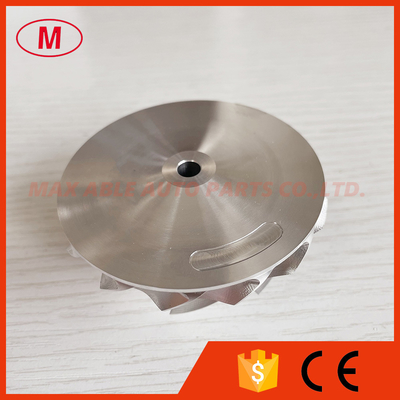

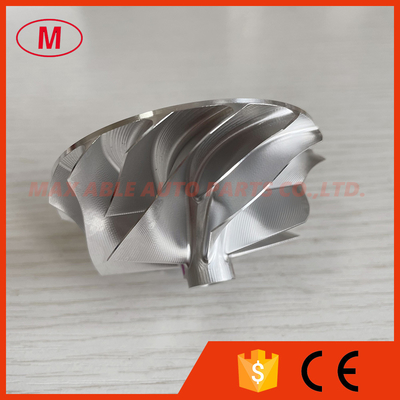

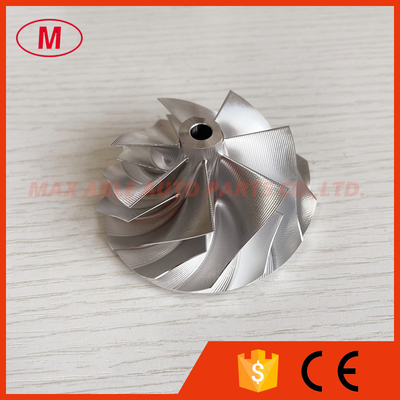

1.Model:G25-660 reverse
2.G25-660 reverse 54.28/67.40mm 7+7 Blades point milling turbo billet/aluminum 2618/Milling compressor wheel for 858161-5003S/877895-5002S/5005S/5006S/871389-5010S/5011S
3.Size:
Nose diameter:12.40mm
Inducer:54.28mm
Exducer:67.40mm
Tapered tip exducer:69.80mm
Tip height:7.17mm
Trailing angle:35 degree
Superback:2.23mm
Bore:6.00mm
Cutback:6.6mm
Overall height:33.85mm
SP Height angle:-8.00
Blades height:26.05mm
Splitter height:15.00mm
7+7 blades
Tapered tip angle:11.4 degree
reverse rotation
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
All the compressor wheel have been balanced.
we can produce as your requirement ,the minimum order is 5pcs.
