1.Model: GTX5544R GEN-II FORWARD

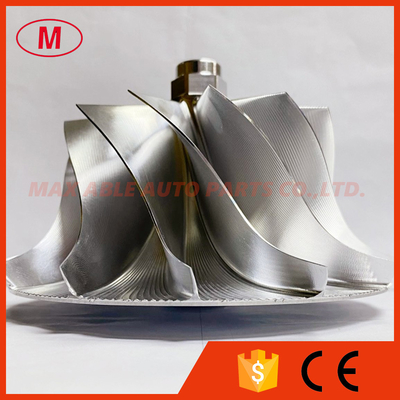

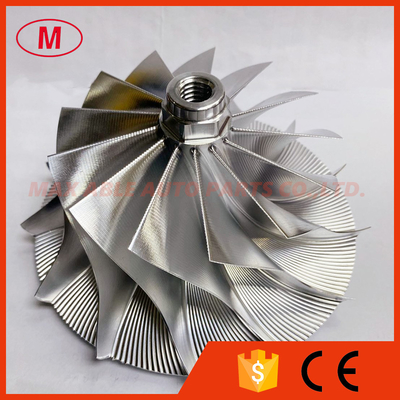

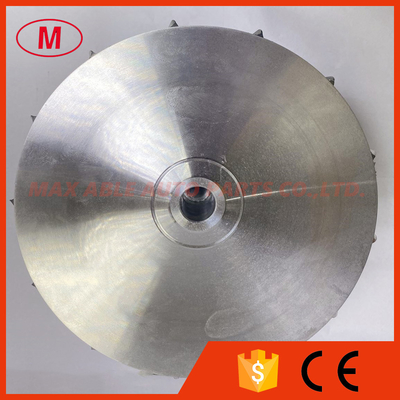

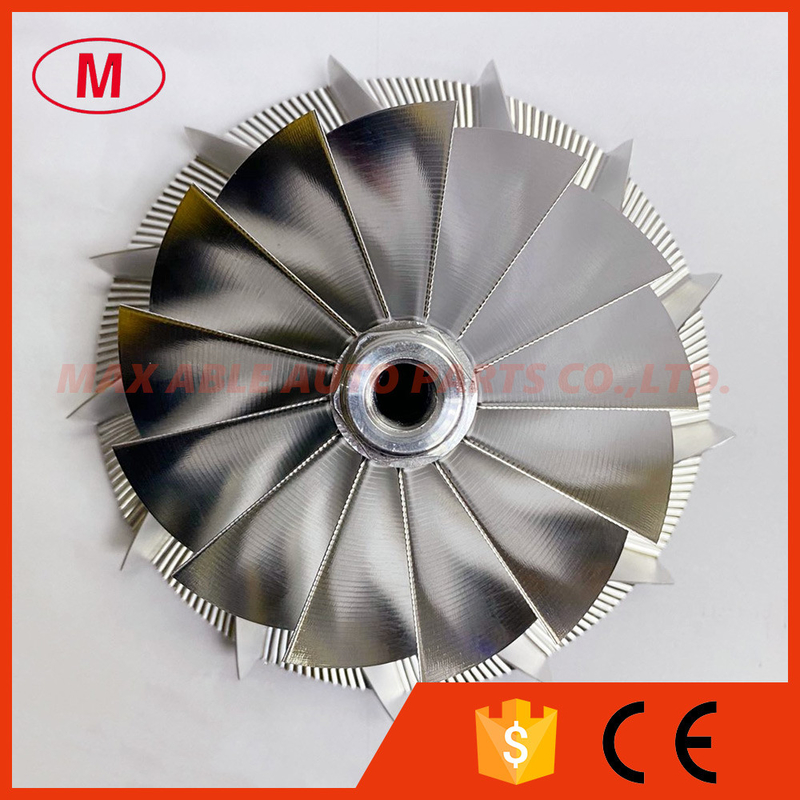

2. GTX5544R GEN-II forward 871505-0001, 150501-12329 106.50/144.36mm 13+0 Blades point milling turbo billet/aluminum 2618/Milling compressor wheel FOR 851285-5022S Supercore 1750 - 2850 PS for 3.0 - 12.0 L
3.Size:
Nose diameter:25.52mm
Inducer:106.50mm
Exducer:144.36mm
Tapered tip exducer:154.00mm
Tip height:8.40mm
Trailing angle:80 degree
Superback:8.30mm
Bore:13.49mm
bore type:Threaded-1/2-13G-LHT
Cutback:7.5mm
Overall height:81.60mm
SP Height angle:0.00
Blades height:58.30mm
Splitter height:0.00mm
13+0 blades
Tapered tip angle:33.65 degree
Forward rotation
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
All the compressor wheels have been balanced.
