Turbo Model GT2556S
Part Number 711736-5016S
Previous Version 711736-0016 711736-16
OE Number 2674A215
Year 2003-
Description Agricultural
CHRA 433289-0185 433289-5185S
Fuel Diesel
Angle α (compressor housing) 85
Angle β (turbine housing) 197
Bearing Housing 713782-0010/433275-0002/713782-0002 (Oil Cooling Type)

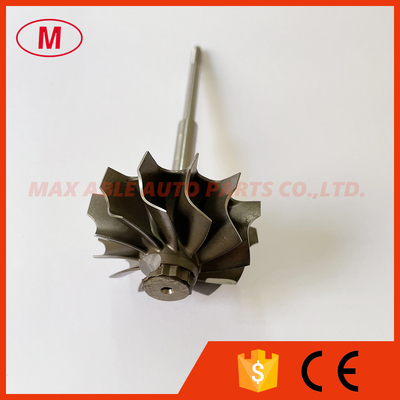

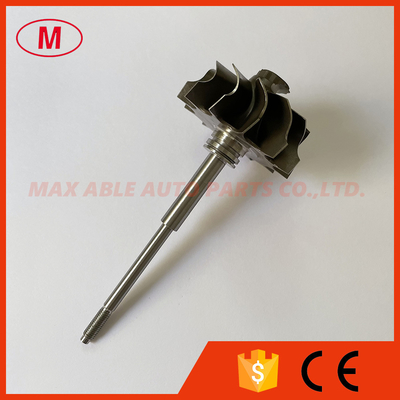

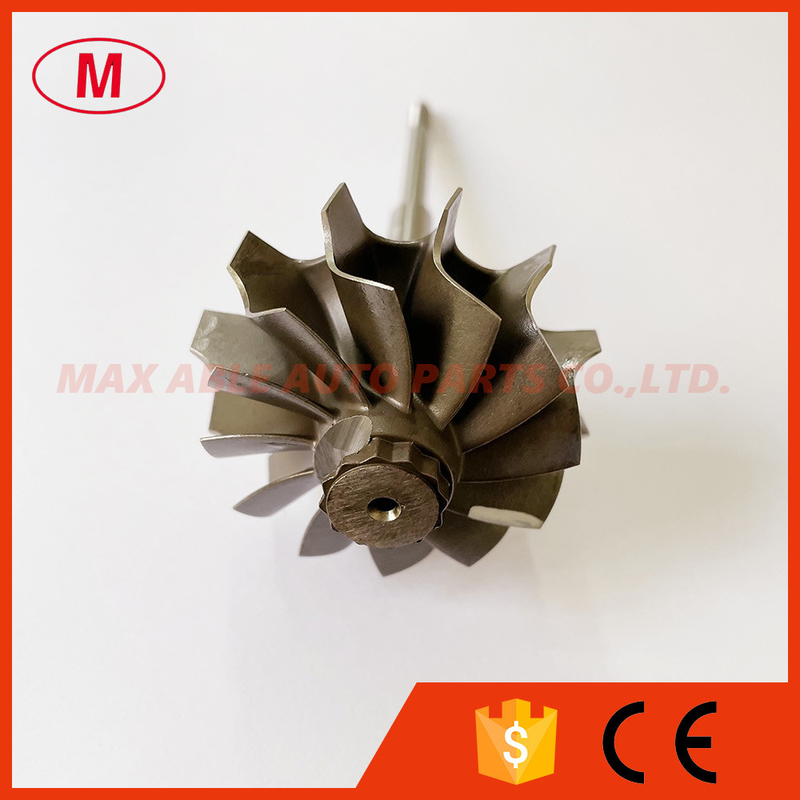

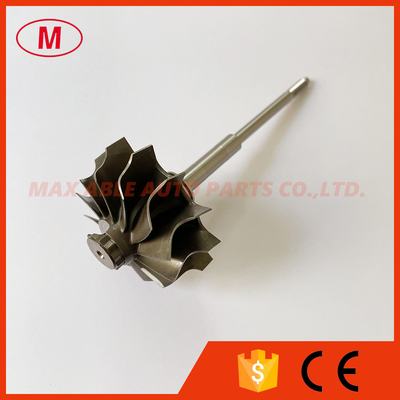

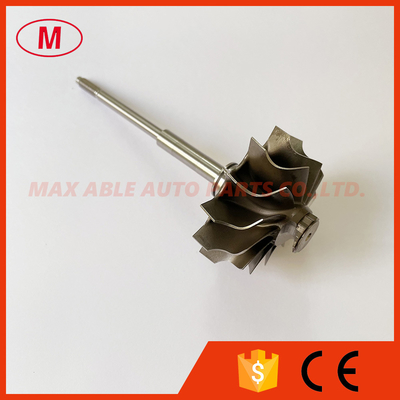

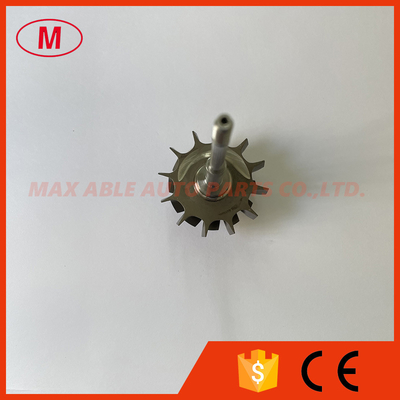

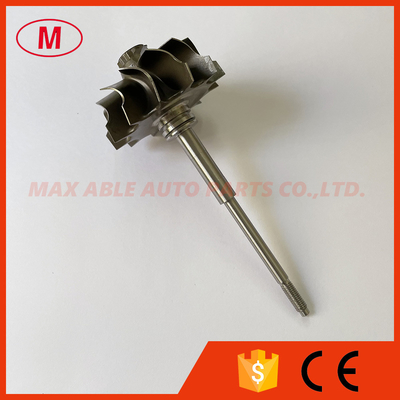

Turbine Wheel 434717-0013
Comp. Wheel 436563-0003
Back plate 721086-0001
Heat shield Number 434686-0001
Repair Kit 732252-0001
Turbine Housing 711739-0001
Compressor Cover 721261-0013
Turbine Housing AR 0.52
Actuator 436806-0013
Settings waste gate (pressure) 1.250-1.310 bar
Settings Waste gate (lift shaft) 1.00 mm
Gasket (turbine inlet) 210658
Gasket (oil outlet) 210553 (Non Metallic)
Interchangeable with 711736-5026S
Applications
2003- For Perkin-s Agricultural Tractor T4.40
