1.Model:PTE55 Forward

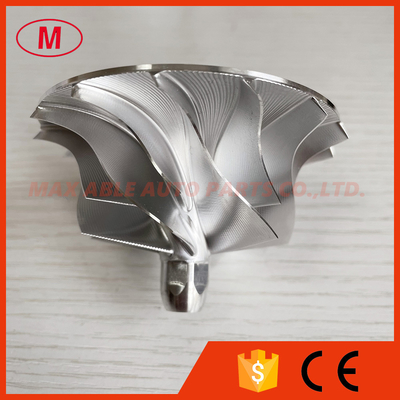

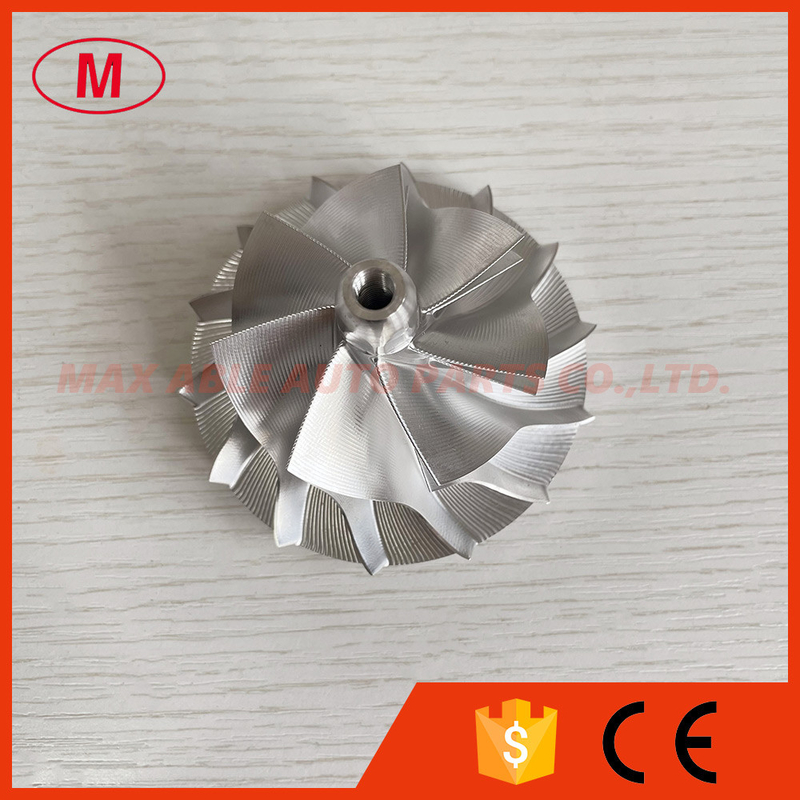

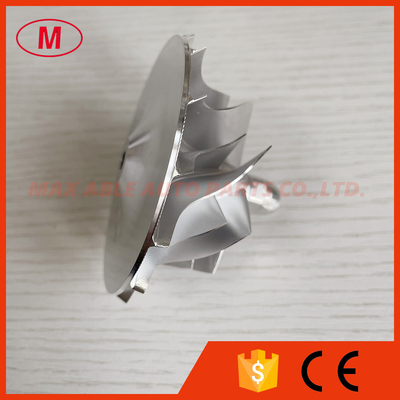

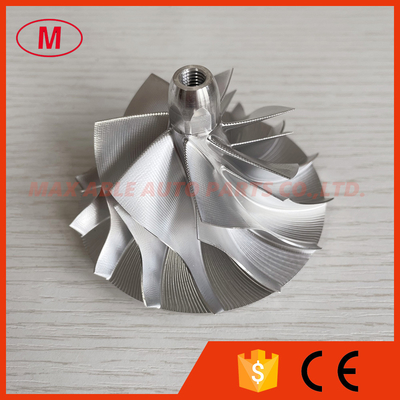

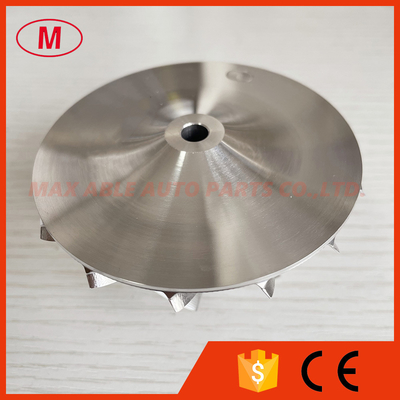

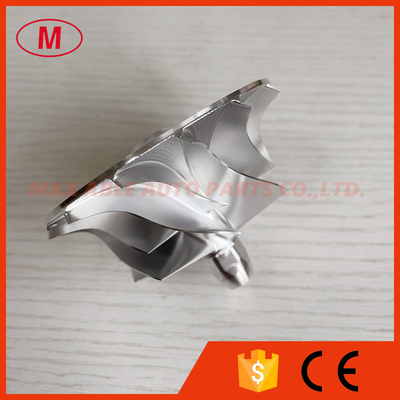

2.PTE55 55.00/76.20mm A22255-102.Rev 0 00411 7+7 blades point milling turbocharger billet/milling/aluminum 2618 compressor wheel for PTE5558 CEA GEN2
3.Size:
Nose diameter:13.00mm
Inducer:55.00mm
Exducer:76.20mm
Tapered tip exducer:79.95mm
Tip height:5.16mm
Superback:4.64mm
Overall height:51.65mm
Bore size:6.35mm
bore type:Threaded 1/4-28G-LHT
Trailing angle:65 degree
Cutback:10.2mm
SP Height angle:2.40
Blade height:33.00mm
Splitter height:21.70mm
7+7 blades
Forward rotation
Tapered tip angle:26.5 degree
It is for OE compressor housing
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
All the compressor wheels have been balanced.
