Model Number: | TD05H |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:TD05H reverse rotation

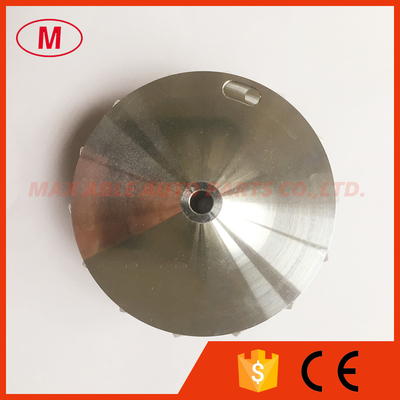

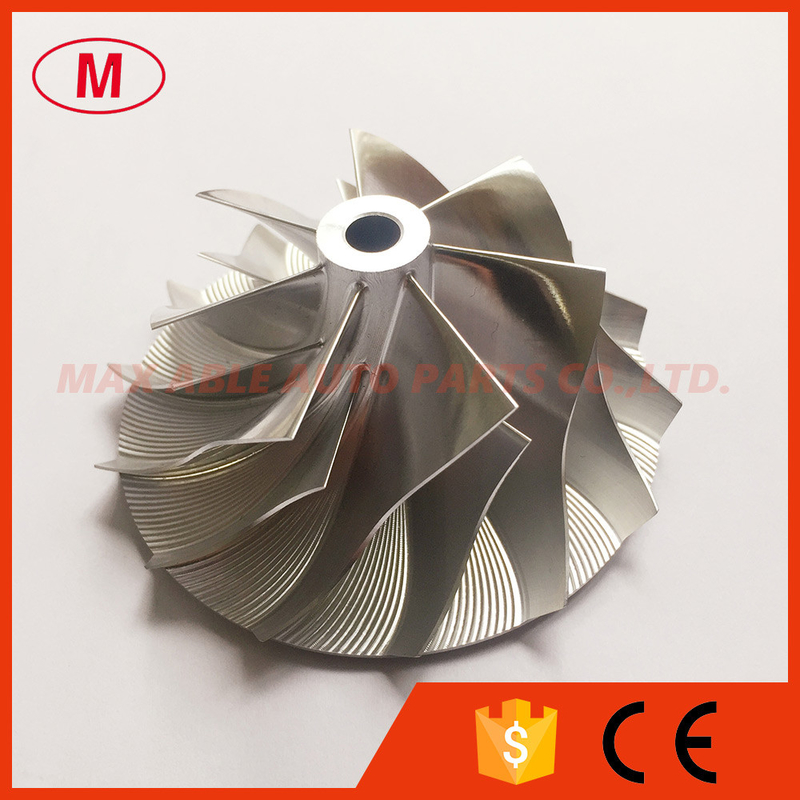

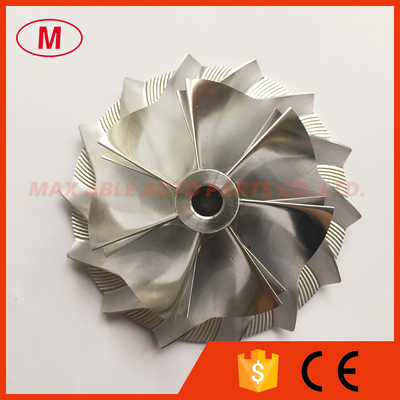

2. TD05H reverse 54.90/76.13mm 7+7 blades high performance High Blade Height, Slimnose Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:13.47mm
Inducer:54.90mm
Exducer:76.13mm
Tapered tip exducer:81.05mm
Tip height:5.26mm
Superback:2.90mm
Overall height:35.70mm
Bore size:6.50mm
bore type:through
Trailing angle:55 degree
Blades height:30.41mm
Cutback:7.0
Splitter height:19.70mm
Sp height angle:-7.30
7 +7 blades
reverse rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheels have been balanced.
