Customer Satisfy is the eternal pursue of corporation.
Brand Name: | NO |
Certification: | ISO |
Model Number: | TD05 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1.Model:TD05 Forward

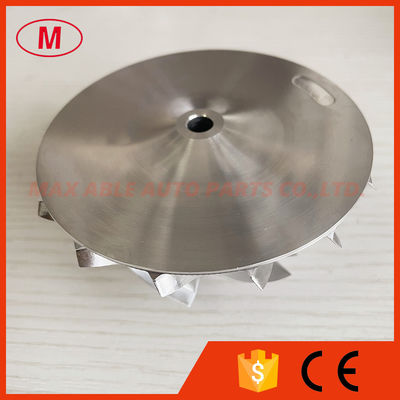

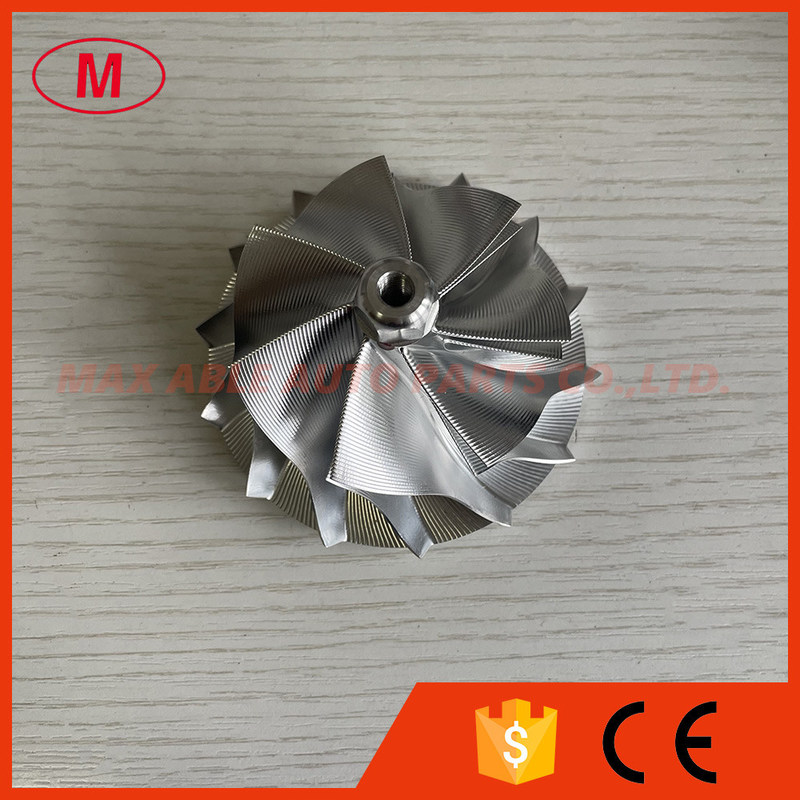

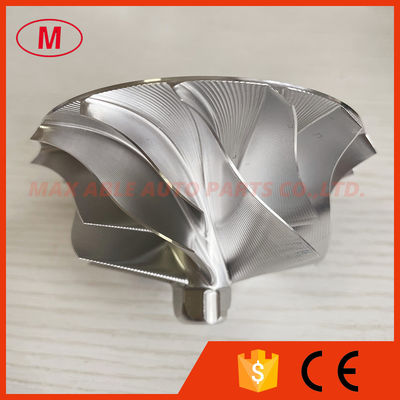

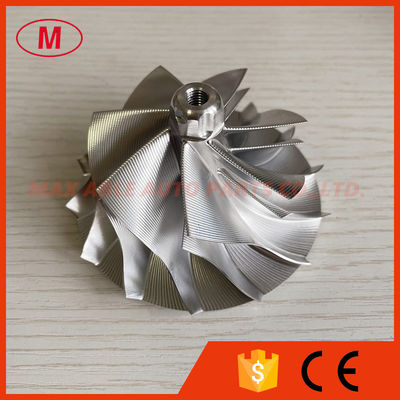

2.TD05 7+7 blades 64.40/82.00mm point milling turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:15.05mm
Inducer:64.40mm
Exducer:82.00mm
Tapered tip exducer:87.26mm
Tip height:5.56mm
Superback:2.90mm
Bore size:6.50mm
Bore type:Threaded 1/4-28G-LHT
Trailing angle:60 degree
Cutback:12.0
SP height angle:2.60
Splitter height:22.90mm
Blade height:35.15mm
Overall height:47.94mm
7+7 blades
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
We can produce as your requirements.
All the compressor wheel have been balanced.
Skype: maxabledieselparts
Wechat/Whatsapp:+86-18018657719
