| Brand Name: | NO |
| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | NETRUAL PACKING |
| Delivery Time: | 3-4 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000PCS |

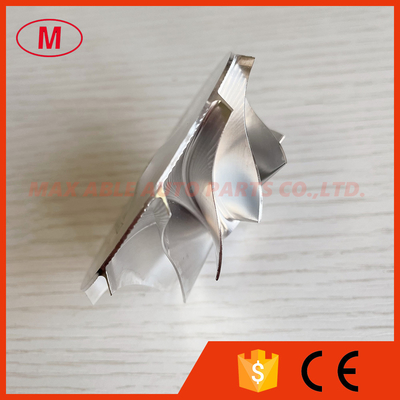

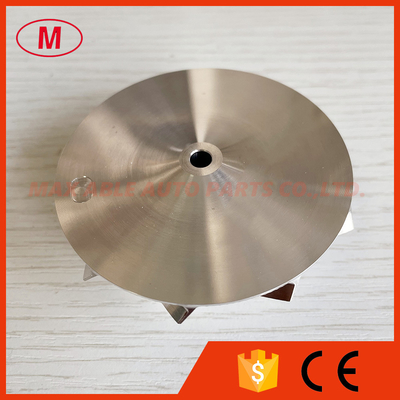

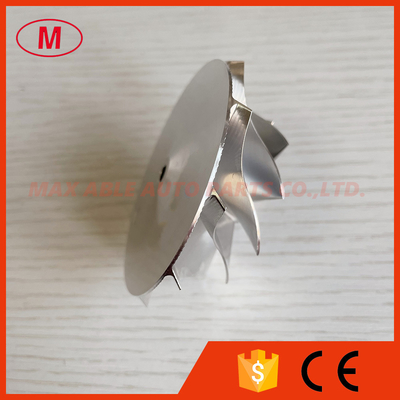

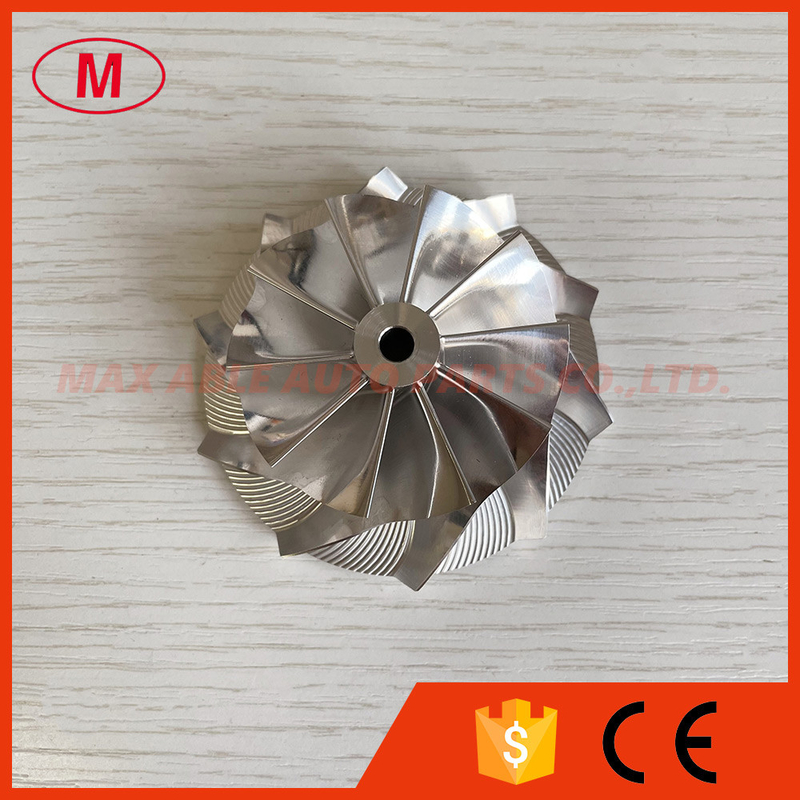

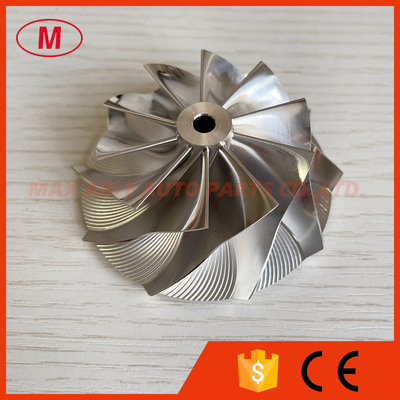

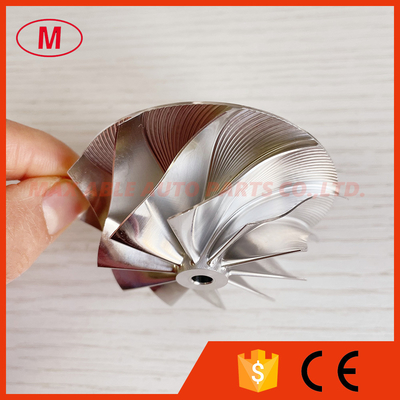

1.Model:TD04HL reverse
3.Size:
Nose diamter:12.50mm
inducer:50.38mm
Exduder:68.00mm
Tapered tip exducer:72.45mm
Tip height:4.85mm
Superback:1.90mm
Overall height:26.50mm
bore size :5.00mm
Trailing Angle:50
Cutback:0.00
SP height angle:0.00
Blade height:22.94mm
Splitter height:0.00mm
It is custom size,please check carefully before buying.
10+0 blades
reverse rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
