| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT15-25 reverse

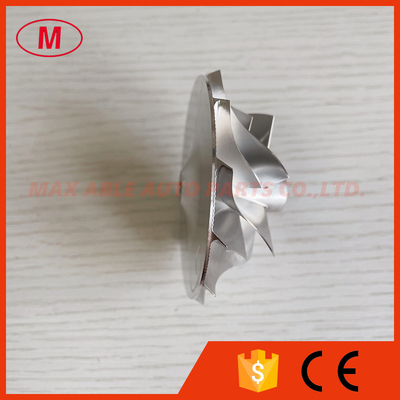

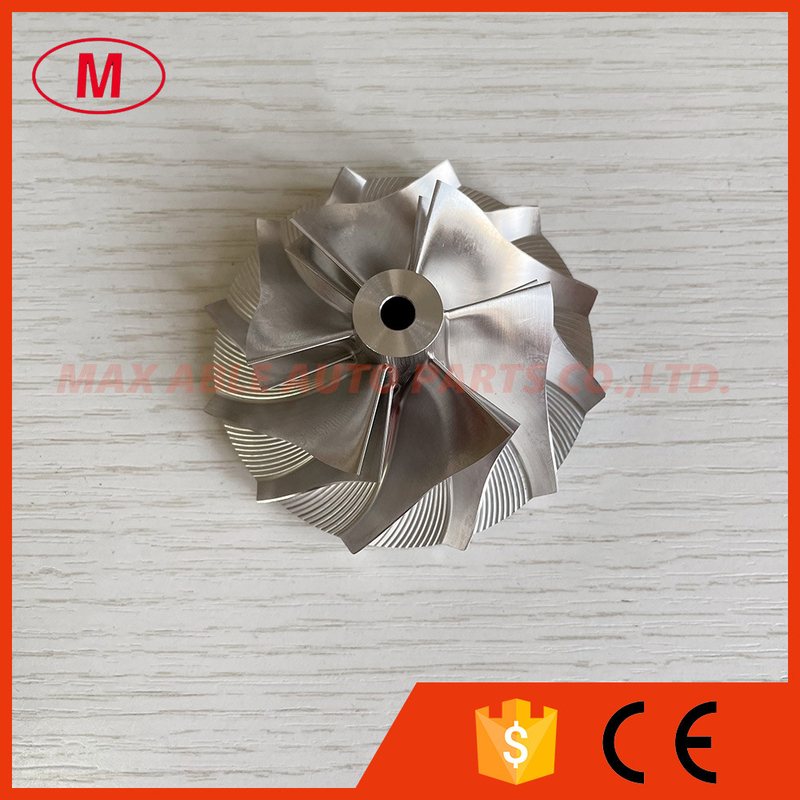

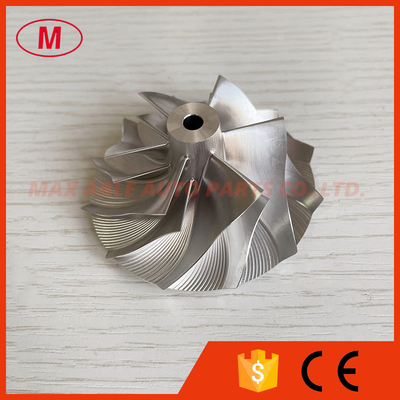

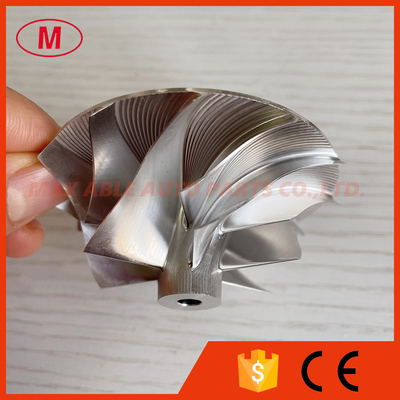

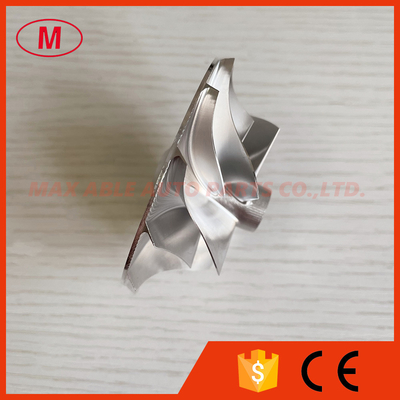

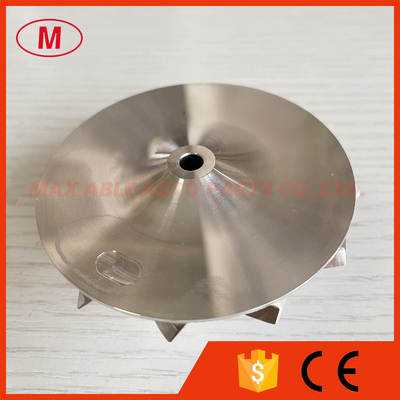

2.GT15-25 reverse 48.30/68.01mm 6+6 blades high performance milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:13.50mm
Inducer:48.30mm
Exducer:68.01mm
Tapered tip exducer:72.18mm
Tip height:4.61mm
Superback:3.71mm
Ovearll height:32.31mm
Bore:5.08mm
Blade height:22.74mm
cutback:0.0
Splliter height:15.40mm
Sp height angle:-3.50
6 long 6 short reverse
Trailing angle:55 degree
Tapered tip angle:30 degree
it is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
