| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | NEUTRAL PACKING |
| Delivery Time: | 1-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 |
1. MODEL:RHF5 Forward

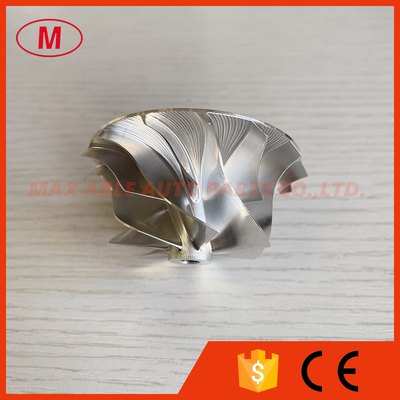

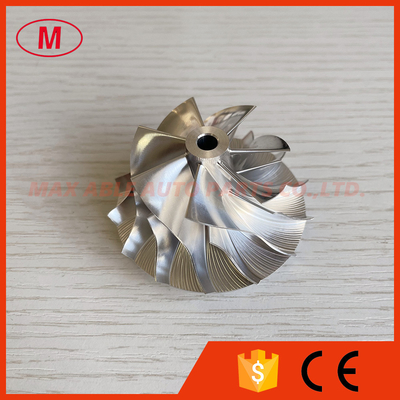

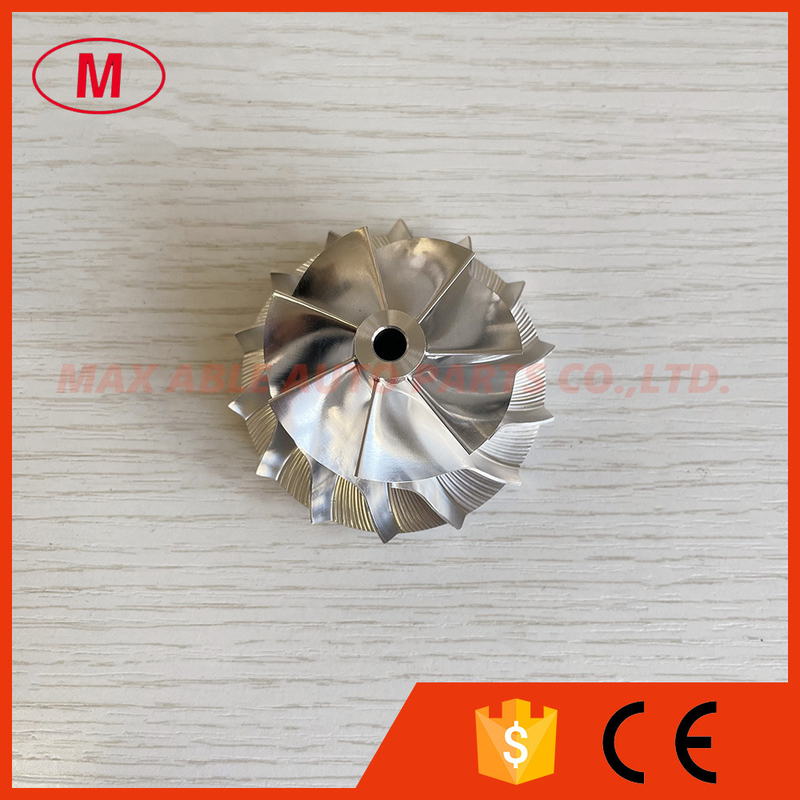

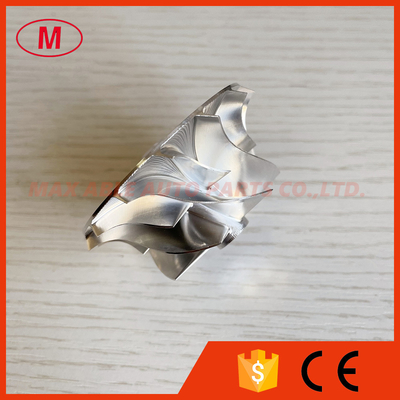

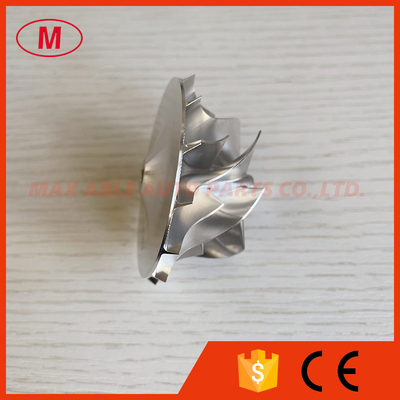

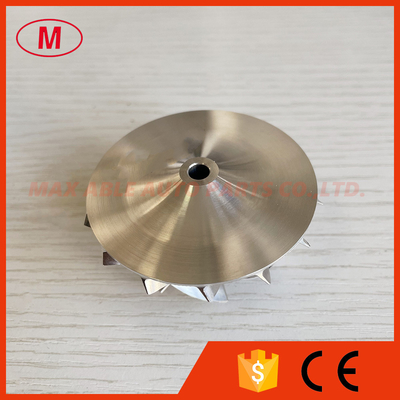

2.RHF5 41.24/56.00mm 7+7 blades high performance Turbo milling/aluminum 2618/billet compressor wheel for VIFB
3.Size:
Nose diameter:11.00mm
Inducer:41.24mm
Exducer:56.00mm
Tapered tip exducer:59.78mm
Tip height:4.27mm
super back:4.00mm
overall height:31.80mm
bore size :5.10mm
Trailing angle:60 degree
Cutback:4.0
SP height angle:-3.00
Splitter height:14.50mm
Blades height:25.45mm
7+7 blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.Application:
VIFB
5.High quality and competitive price.
6.Any questions please send email to me.
All the compressor wheel have been balanced.
