| Brand Name: | NO |
| Model Number: | S400 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:S400 Forward

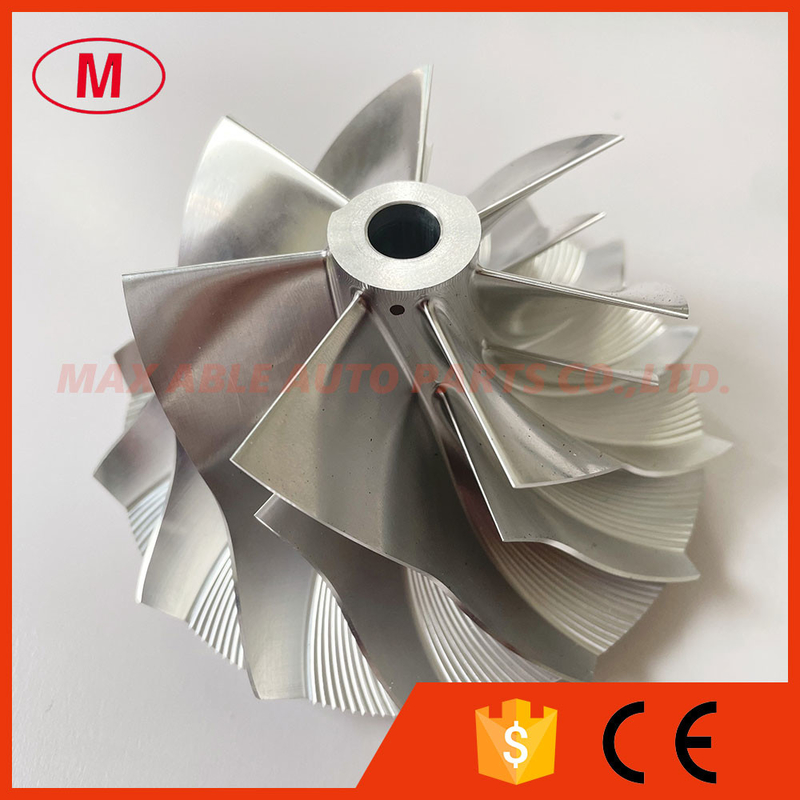

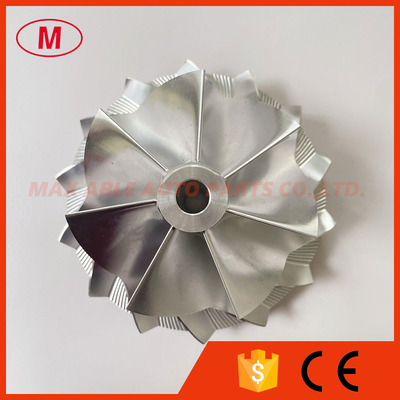

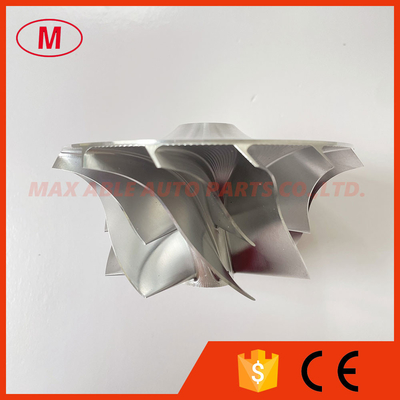

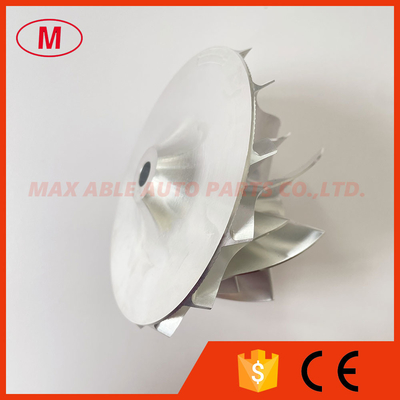

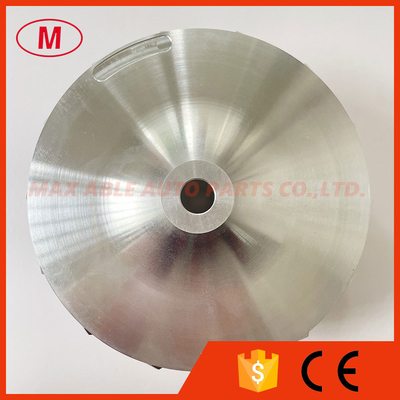

2. S400 78.23/106.20mm 7+7 blades Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:20.93mm
Inducer:78.23mm
Exducer:106.20mm
Tapered tip exducer:113.37mm
Tip height:7.21mm
Superback:8.90mm
Bore size:10.00mm
Bore type:through
Trailing angle:55
Overall height:60.37mm
Cutback:0.0
SP Height angle:-7.00
Blades height:48.00mm
Splitter height:31.30mm
7+7blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheel have been balanced.
