| Model Number: | TD08L |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:TD08L forward

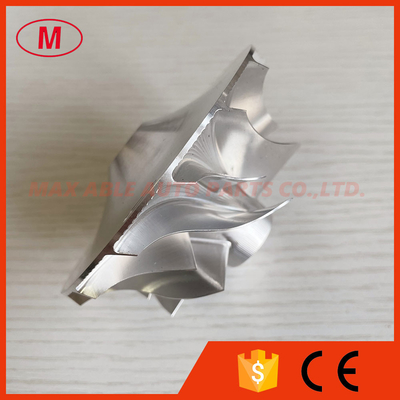

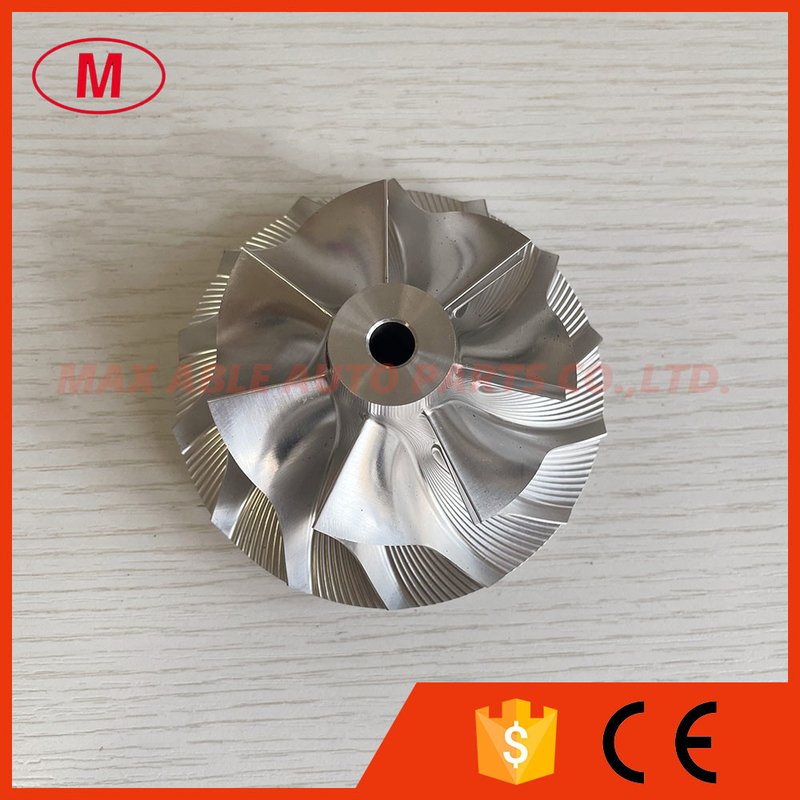

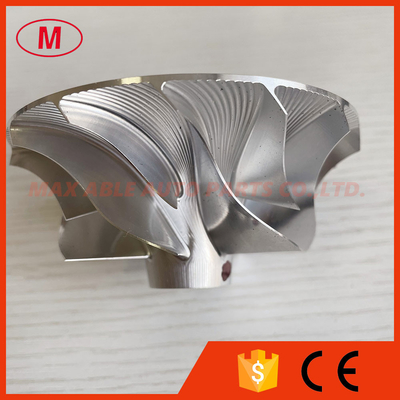

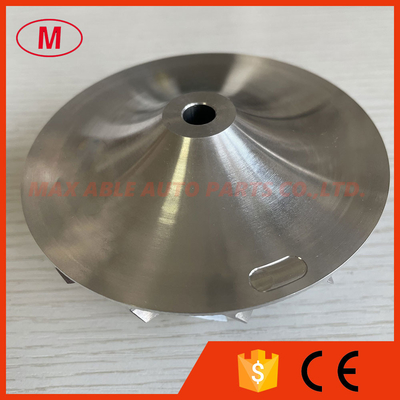

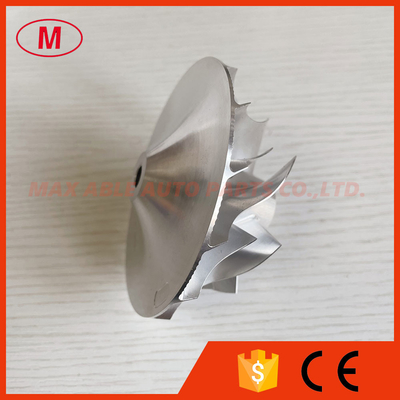

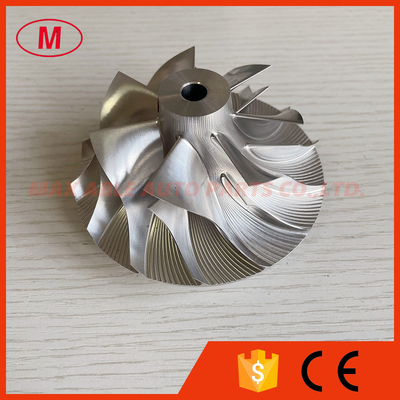

2.TD08L 67.53/92.00mm 7+7blades turbo aluminum 2618/milling/billet compressor wheel for 14201-00Z2C 49134-01810 MITSUBISHI Truck/Bus Engine:GE13
3.Size:
Nose diameter:21.80mm
inducer:67.53mm
Exduder:92.00mm
Tip height:6.64mm
Superback:11.00mm
Overall height:50.30mm
Bore size:7.95mm
Blade height:31.45mm
cutback:0.0mm
Splitter height:22.40mm
SP Height angle:-17.50
7+7 blades
Trailing angle: 55 degree
Tapered tip angle:0 degree
It is for OE COMPRESSOR HOUSING
4.Good quality and competitive price
5.We have many other size ,please send email to me !
All the compressor wheel have been balanced.
