Model Number: | GA15-25 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1.Model:GTA15-25 forward

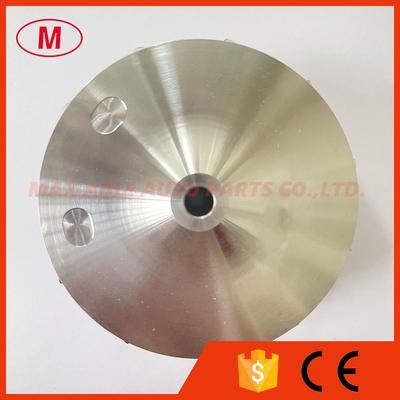

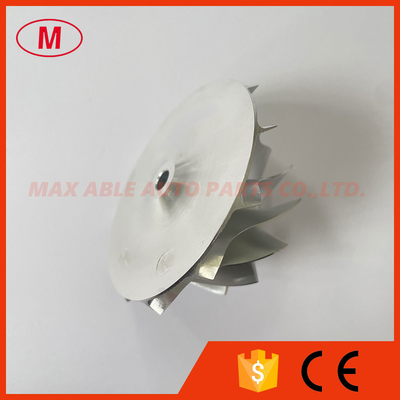

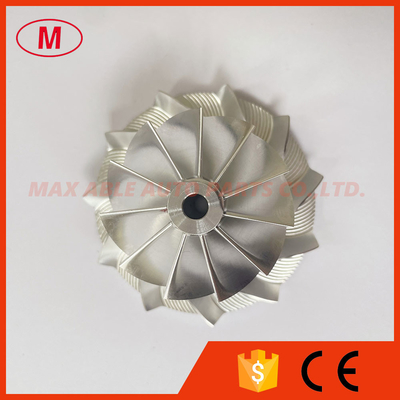

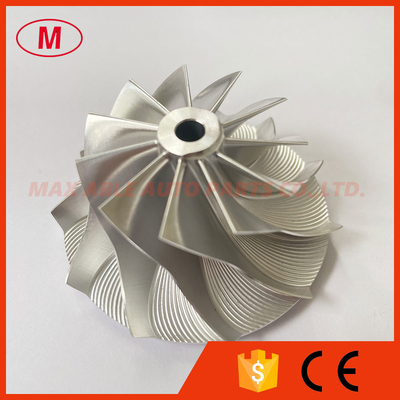

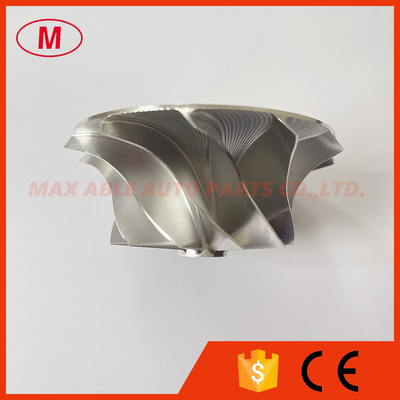

2. GTA15-25 39.61/56.02mm 701374-0003 1102-022-402 11+0 blades high performance turbo aluminum 2618/milling/billet compressor wheel for 709837-0001/2/709838-0001/3/4/5/721020-0001
3.Size:
Nose diameter:11.16mm
inducer:39.61mm
Exduder:56.02mm
Tapered tip exducer:59.86mm
Tip height:4.32mm
Superback:2.39mm
Overall height:28.00mm
Bore size:5.08mm
Blade height:24.26mm
cutback:4.0mm
Splitter height:0.00mm
SP Height angle:0.00
6+6 blades
Trailing angle: 50 degree
Tapered tip angle:30 degree
It is for OE COMPRESSOR HOUSING
4.Good quality and competitive price
5.Application:
709837-0001
709837-0002
709838-0001
709838-0003
709838-0004
709838-0005
721020-0001
6.We have many other size ,please send email to me !
All the compressor wheel have been balanced.
