Home ProductsBillet compressor wheel

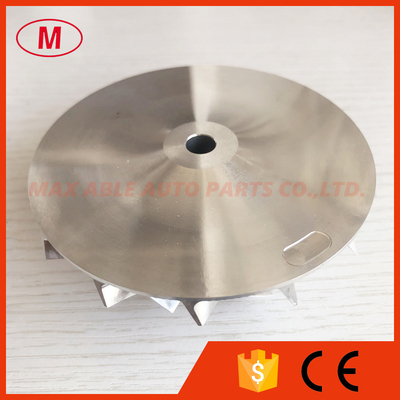

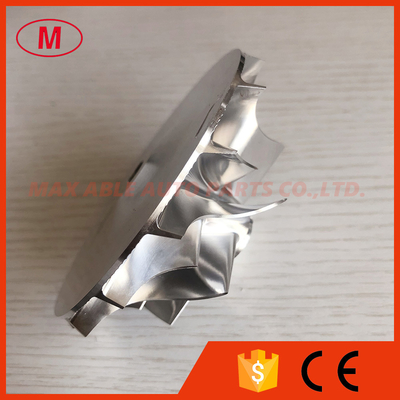

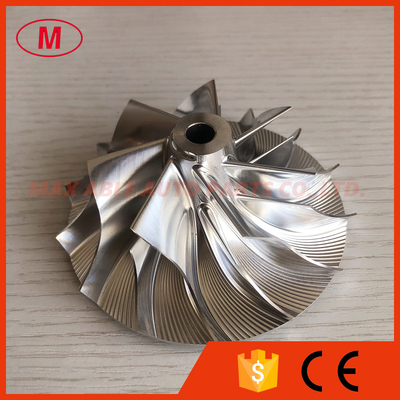

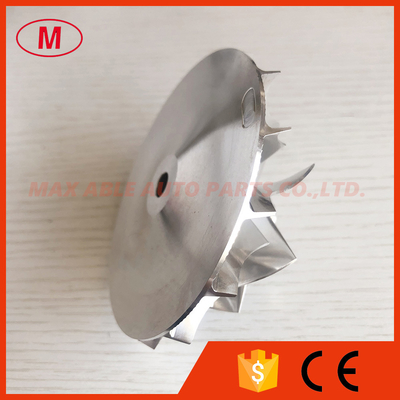

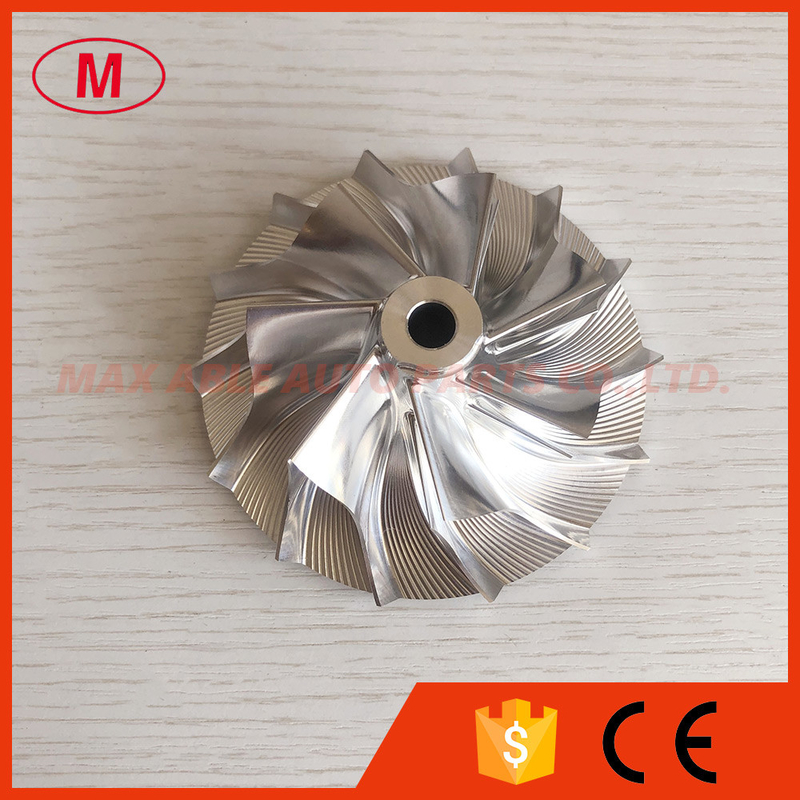

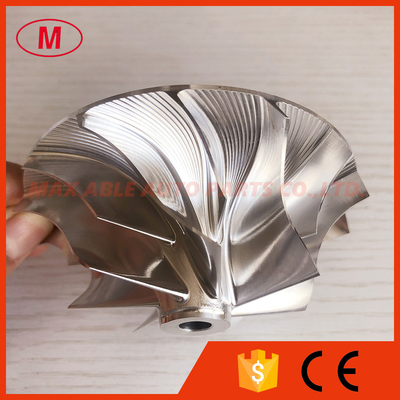

TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel

TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel

    • TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
    • TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
    • TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
    • TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
    • TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
    • TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
    • TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel

    Product Details:

    Model Number: TD08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 40.62/55.93mm Type: Turbochargers

    1. MODEL: TD08H forward
    2.TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo Billet/milling/Aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:17.00mm
    Inducer:64.00mm
    exducer:89.97mm
    Tapered tip exducer:93.86mm
    Tip height:7.49mm
    Superback:2.74mm
    bore size :7.95mm
    bore type: through
    Overall height:38.50mm
    Cutback:5.0
    Trailing Angle:60
    Splitter height:19.06mm
    Sp height angle:0.00
    Blade height:31.58mm
    7+7 blades forward
    It is for OE compressor housing
    Tapered tip Angle:18 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.
    All the compressor wheel have been balanced.
    Skype: maxabledieselparts
    Wechat/whatsapp:+ 86-18018657719
    TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel



    TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheelTD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheelTD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheelTD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheelTD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheelTD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheelTD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
