| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 45.78/61.98mm | Type: | Turbochargers |
|---|
1. MODEL:K04 forward

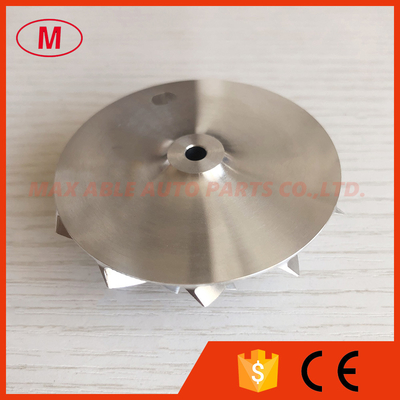

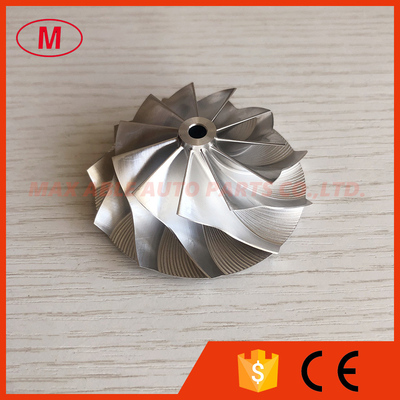

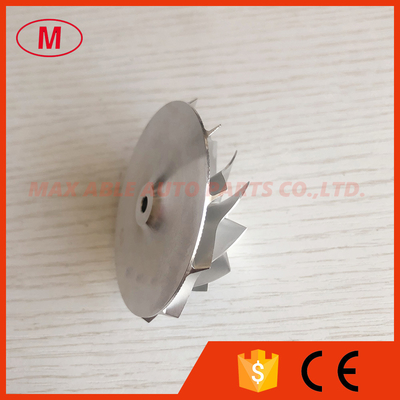

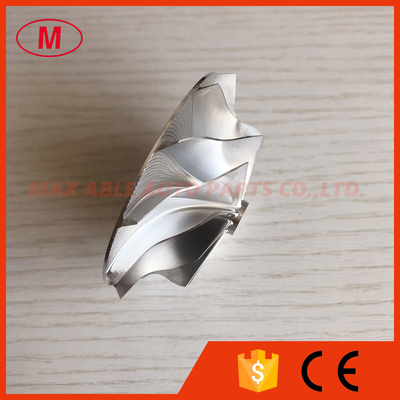

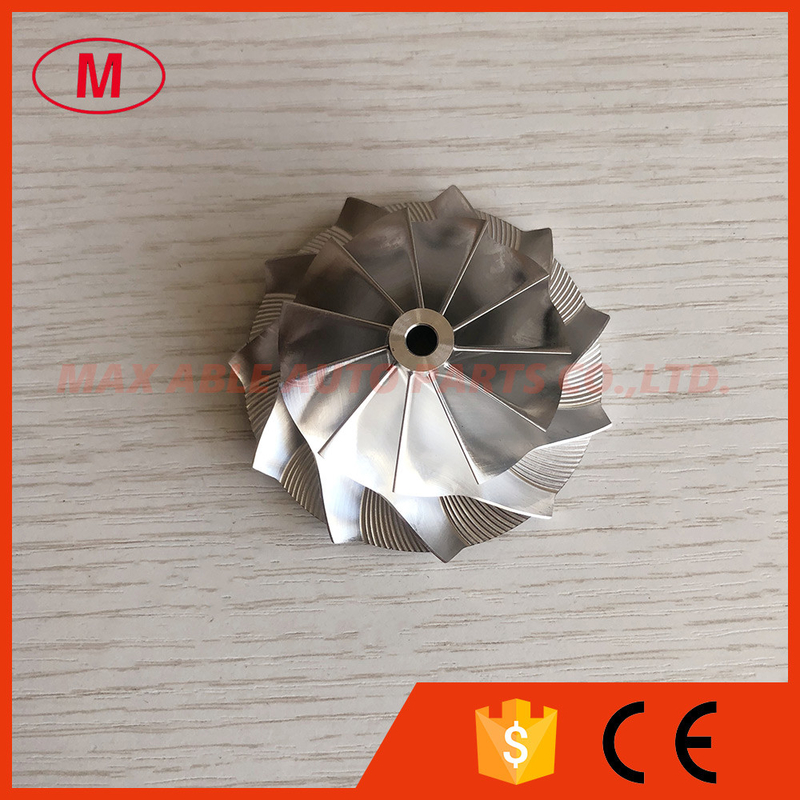

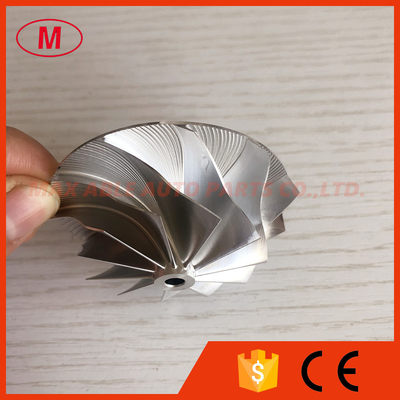

2.K04 45.78/61.98mm 11+0 blades high performance turbo billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:9.82mm
inducer:45.78mm
Exduder:61.98mm
Tapered tip exducer:65.97mm
Tip height:4.55mm
Superback:2.67mm
Overall height:25.48mm
bore size :4.61mm
Trailing Angle:50 degree
Cutback:9.0
Blades height:21.11mm
SP height Angle:0.00
Splitter height:0.00mm
11+0 blades
Forward rotation
Tapered tip angle:30 degree
It is for custom size ,please check carefully before buyig.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
