| Brand Name: | NO |
| Model Number: | TD07S |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD07S forward

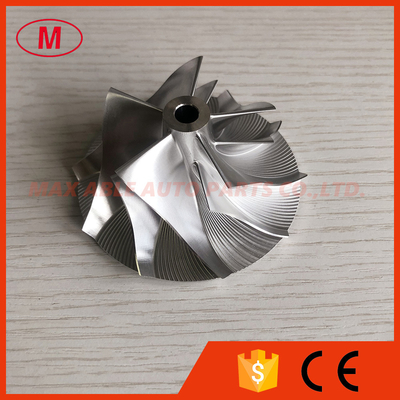

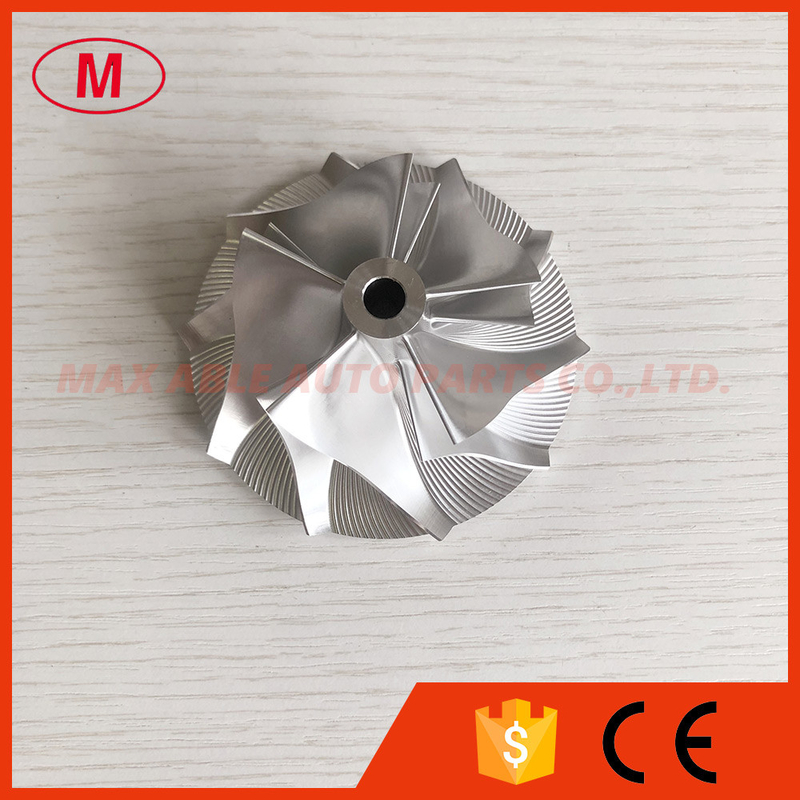

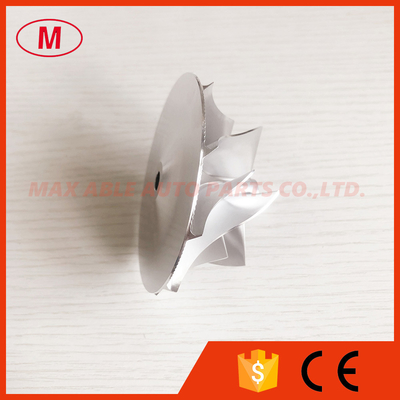

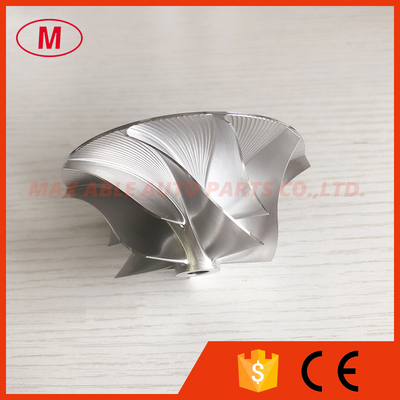

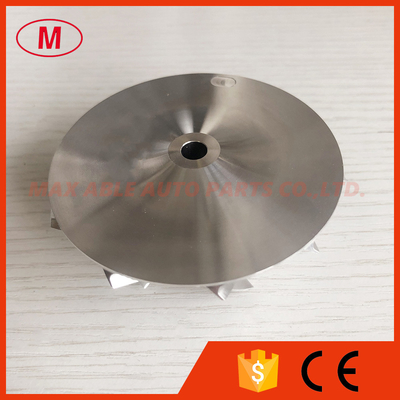

2.TD07S forward 53.91/78.00mm 5+5 blades high performance turbo billet/milling /aluminum 2618 compressor wheel
3.size:
Nose diameter:13.92mm
inducer:53.91mm
Exduder:78.00mm
Tapered tip exducer:81.95mm
Tip height:4.42mm
Superback:2.70mm
Overall height:36.99mm
bore size :7.00mm
Trailing angle:50
Cutback:0.0
SP Height angle:-7.00
Blades height:31.83mm
Splitter height:22.80mm
5+5 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
