Home ProductsBillet compressor wheel

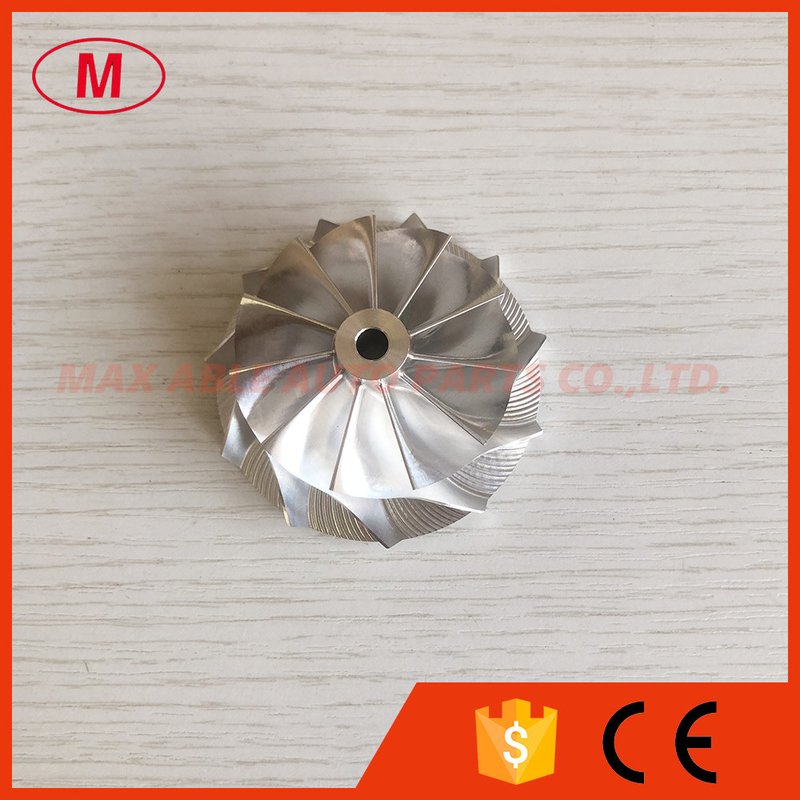

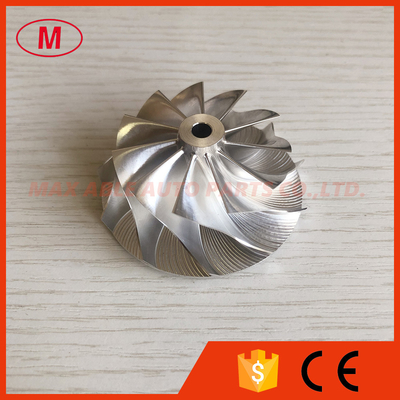

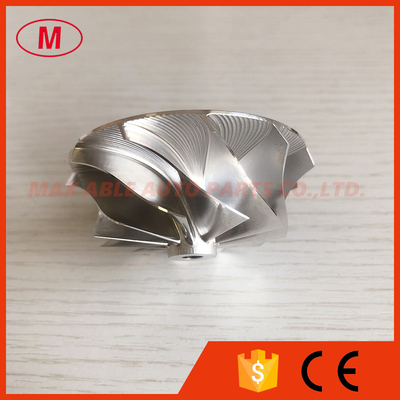

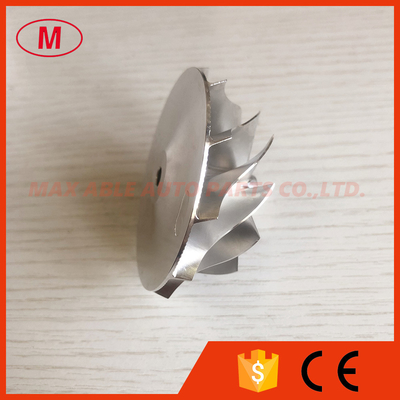

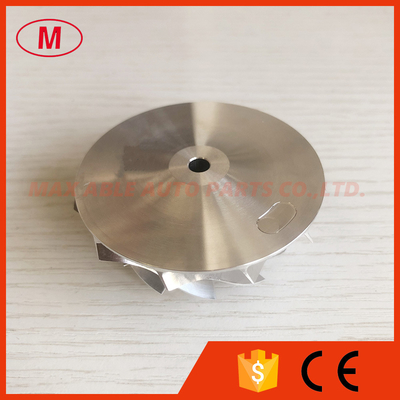

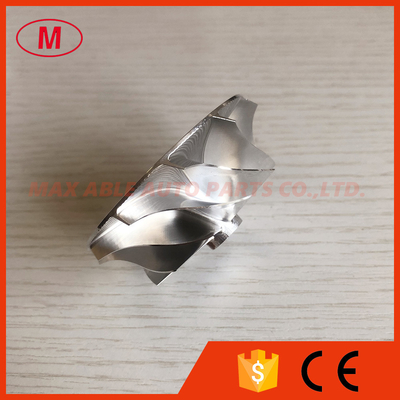

TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0

TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0

    • TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0
    • TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0
    • TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0
    • TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0
    • TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0
    • TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0
    • TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0

    Product Details:

    Brand Name: NO
    Model Number: TD04HL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD04HL 19T forward
    2.TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:11.66mm
    Inducer:46.02mm
    exducer:58.00mm
    Tapered tip exducer:60.77mm
    Tip height:5.26mm
    Superback:1.90mm
    Overall height:26.13mm
    bore size :5.00mm
    Trailing angle:60
    Cutback:6.0
    SP Height angle:0.00
    Blades height:21.53mm
    Splitter height:0.00mm
    11+0 blades
    forward rotation
    Tapered tip angle:18 degree
    Fits OE Compressor Housing
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
    skype : maxabledieselparts
    wechat/whatsapp:+86-18018657719

    TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0



    TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0TD04HL 19T 46.02/58.00mm 11+0 blades 49189-X BILLET Turbocharger aluminum 2618/billet compressor wheel cutback:6.0
