| Brand Name: | NO |
| Model Number: | TD05h |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H 20G forward

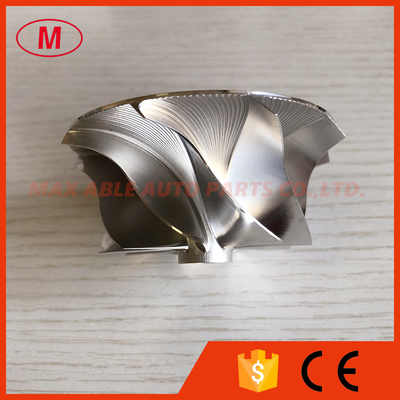

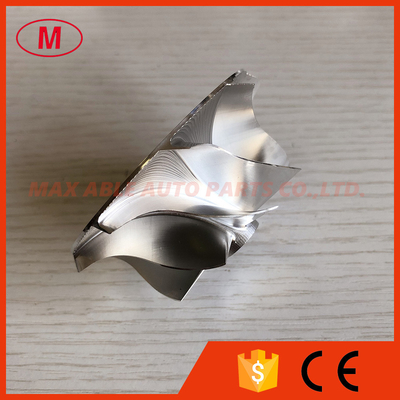

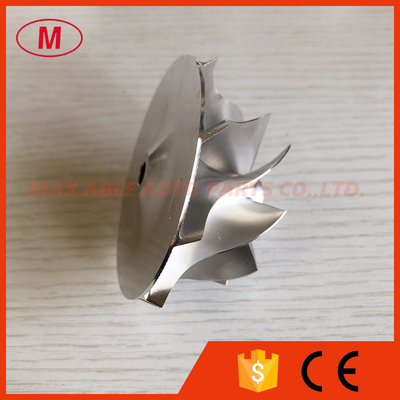

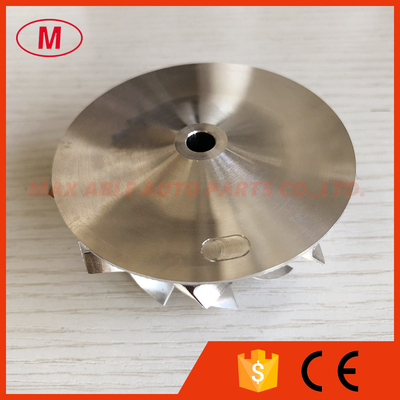

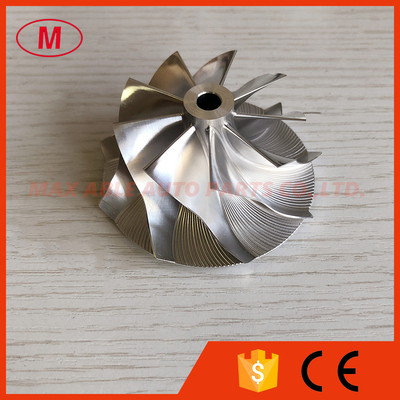

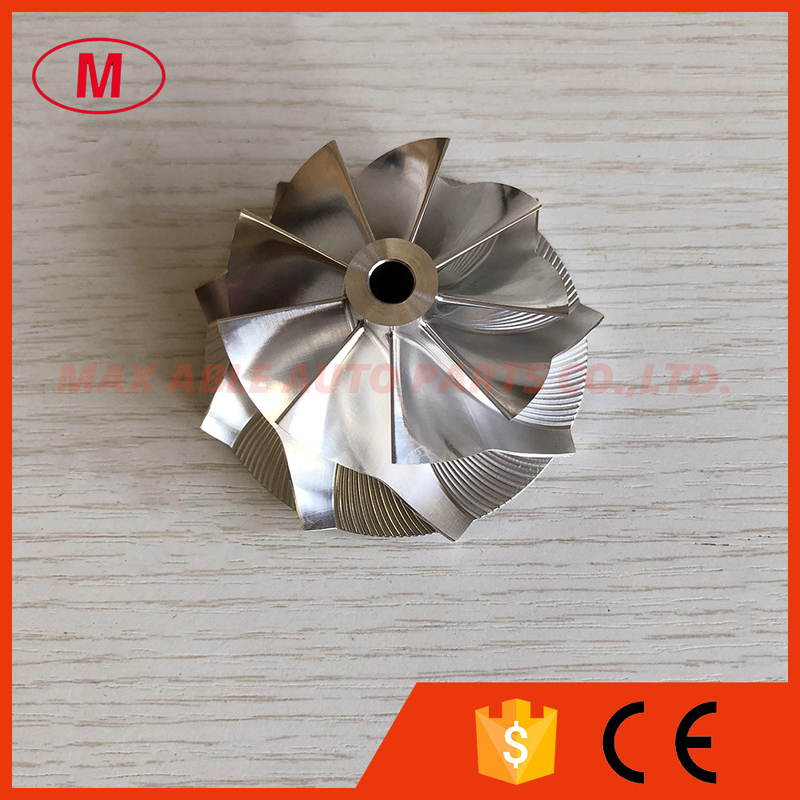

2.TD05H 20G forward 52.56/68.01mm 49179-43400 9+0 blades high performance high blade height Turbo Billet/milling/aluminum 2618 compressor wheel for MITSUBISHI
3.Size:
Nose diameter:13.51mm
Inducer:52.56mm
Exducer:68.01mm
Tapered tip exducer:73.05mm
Tip height:5.37mm
Superback:2.90mm
Overall height:35.00mm
bore size :6.50mm
Trailing Angle:45
Cutback:0.0
sp Height angle:0.00
Blade height :28.90mm
Splitter height:0.00
Tapered tip Angle:30 degree
9+0 BLADES.
forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
