| Brand Name: | NO |
| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD04HL forward

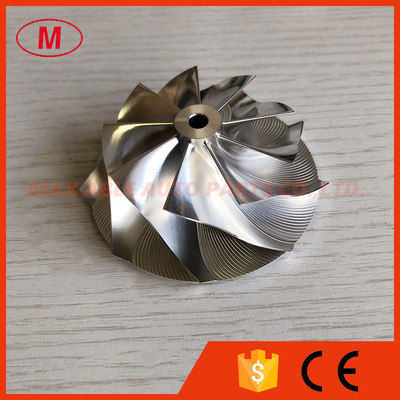

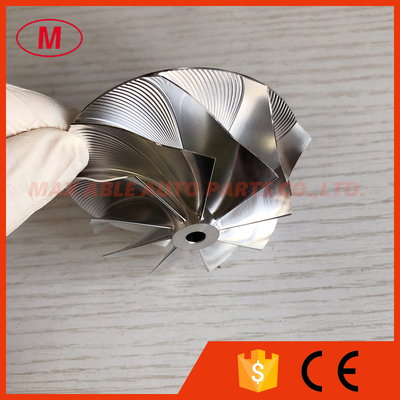

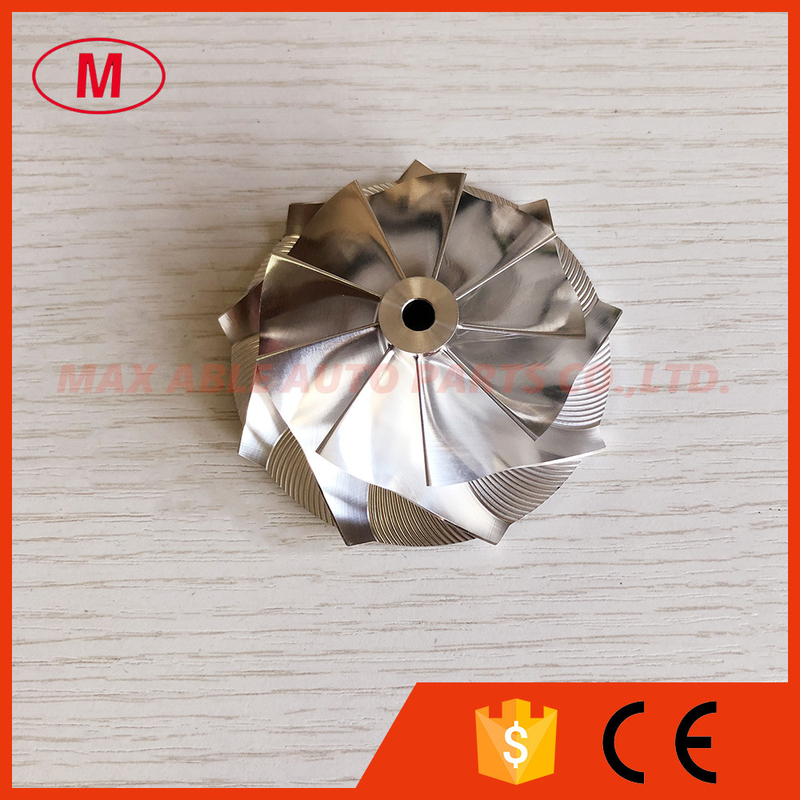

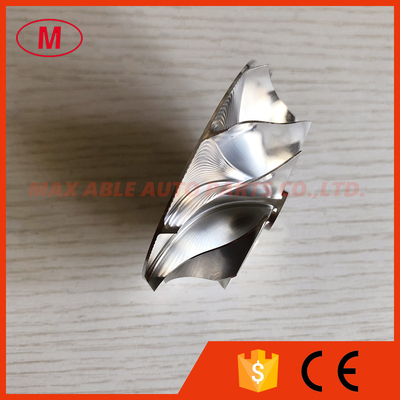

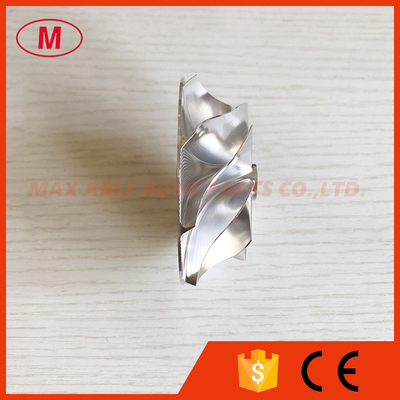

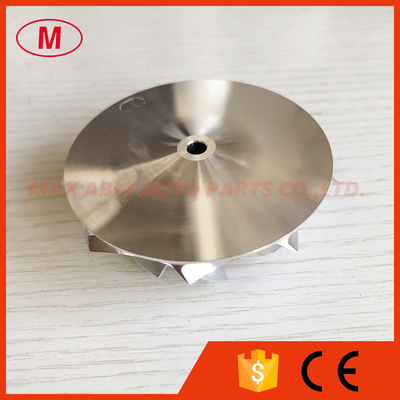

2.TD04HL 52.50/68.00mm 9+0 blades high performance turbo billet/milling/aluminum 2618 compressor wheel .
3.Size:
Nose diameter:12.50mm
inducer:52.50mm
Exduder:68.00/mm
Tapered tip exducer:72.45mm
Tip height:4.85mm
Superback:1.90mm
Overall height:26.50mm
bore size :5.01mm
Trailing Angle:55
Cutback:5.0
Splitter height:0.00mm
SP height angle:0.0
Blades height:22.94mm
9+0 blades
Tapered tip Angle:30 degree
Forward rotation
It is custom size ,PLEASE check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
