| Place of Origin: | CHINA |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | MGT1446 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:MGT1446 FORWARD

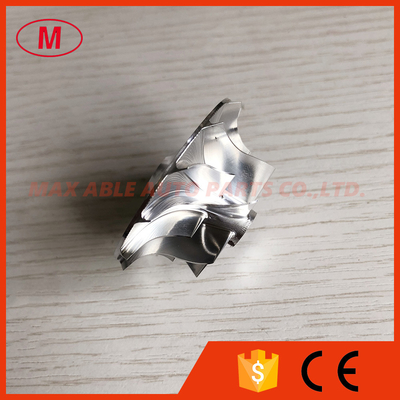

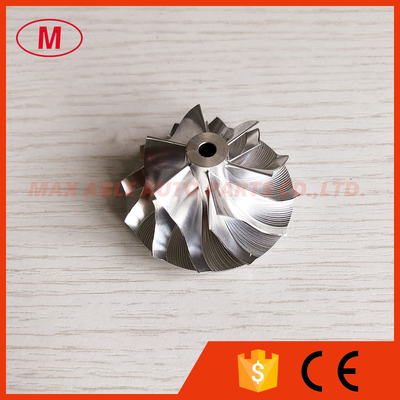

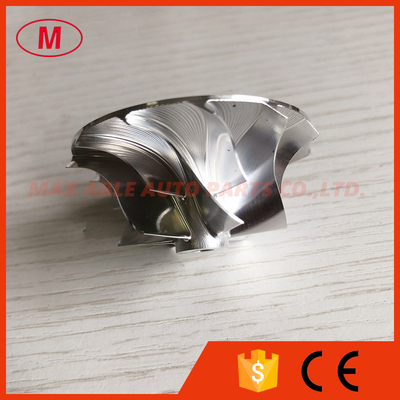

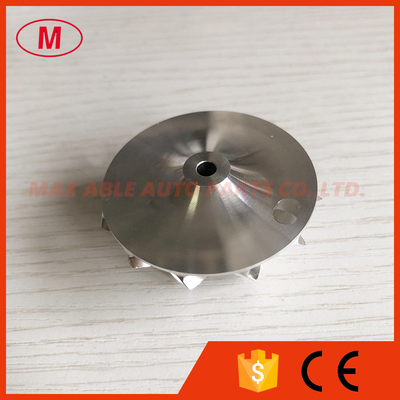

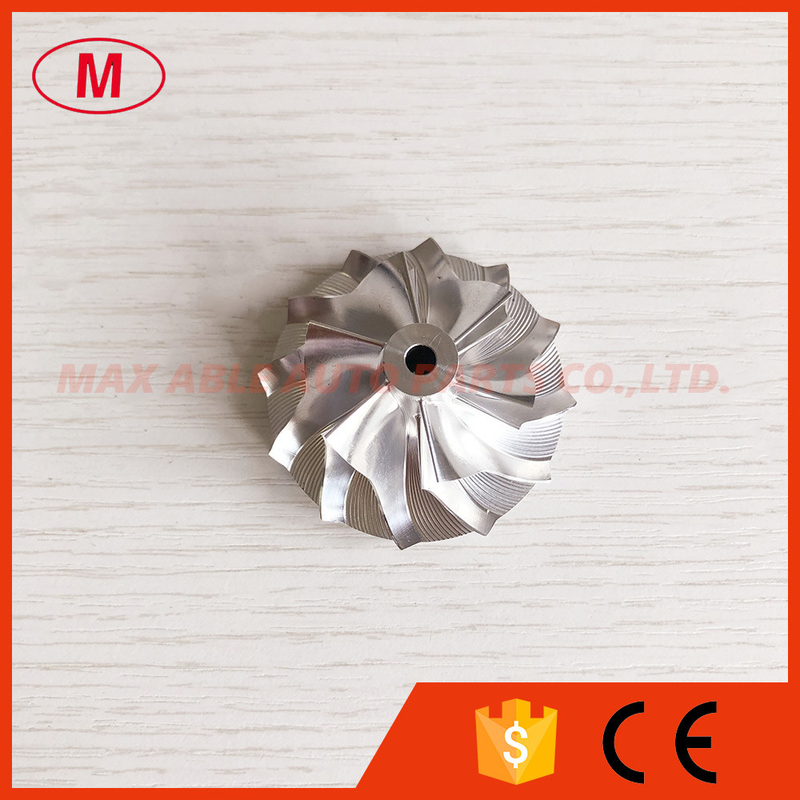

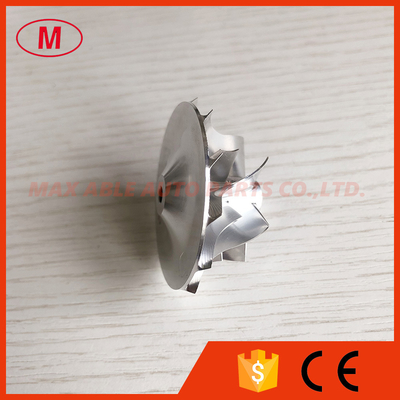

2.MGT1446 786555-0003 6+6 blades 32.50/46.00mm high performance turbo milling/aluminum 2618/billet compressor wheel FOR 781504-0001/0004/0005/789533-0001/792290-0002/0003/795090-0003/803955-0003/0005 turbo/CHRA
3.Size:
Nose diameter:10.20mm
inducer:32.50mm
Exduder:46.00mm
Tapered tip exducer:48.80mm
Tip height:3.43mm
Superback:3.90mm
Overall height:25.15mm
bore size :4.08mm
Bore type:Threaded-M4x0.7LHT
Trailing Angle:45
Cutback:3.5
Blades height:19.30mm
Splitter height:11.70mm
SP height angle:0.00
Tapered tip Angle:30 degree
6+6 blades
forward rotation
Fit for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
