| Place of Origin: | CHINA |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | T04S |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:T04S reverse

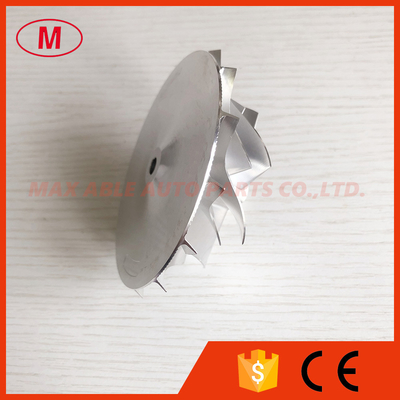

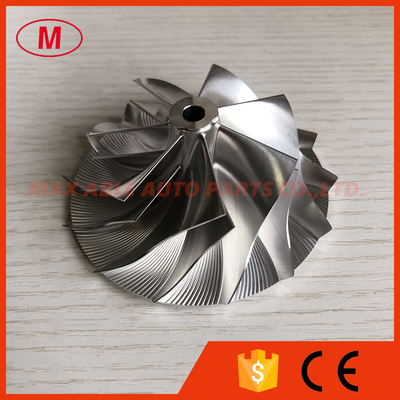

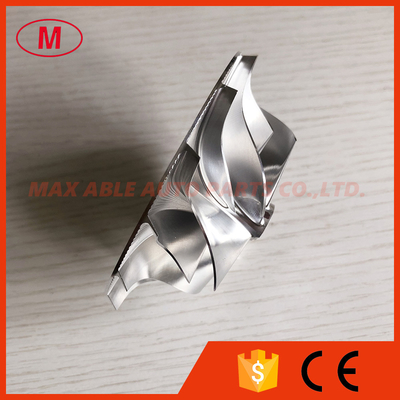

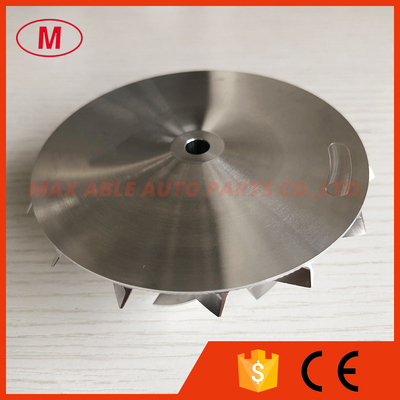

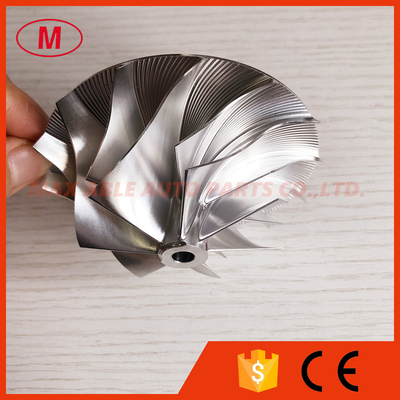

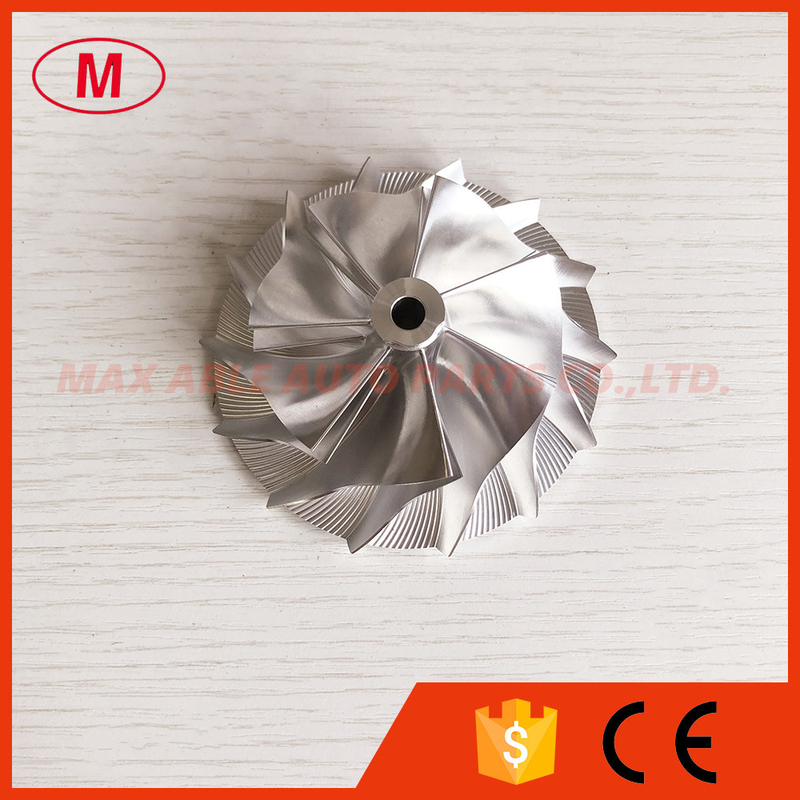

2.T04S reverse 8635R P00767 62.30/86.15mm 7+7 blades High performance turbo Billet/aluminum 2618/milling compressor wheel for racing
3.Size:
Nose diameter:14.08mm
inducer:62.30mm
Exduder:86.15mm
Tapered tip exducer:91.42mm
Tip height:5.56mm
Superback:2.20mm
Overall height:36.10mm
bore size :6.35mm
Trailing Angle:70 degree
Cutback:11.0
SP Height angle:0.00
Blades height:31.61mm
Splitter height:20.05mm
7+7 blades
reverse rotation
Tapered tip angle:30 degree
It is Custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
