| Place of Origin: | CHINA |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H reverse

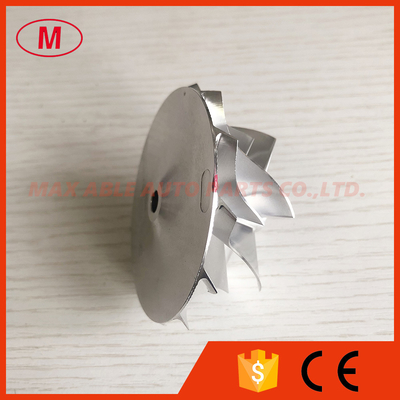

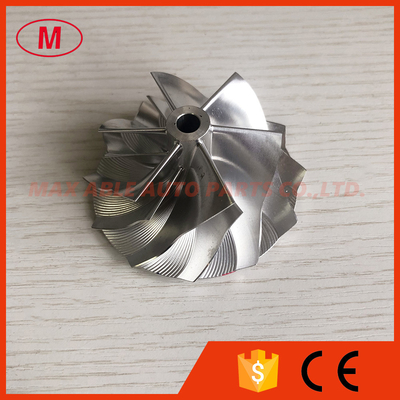

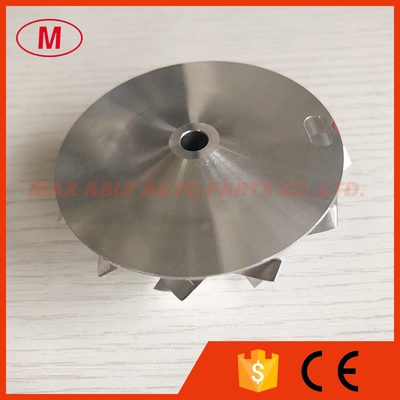

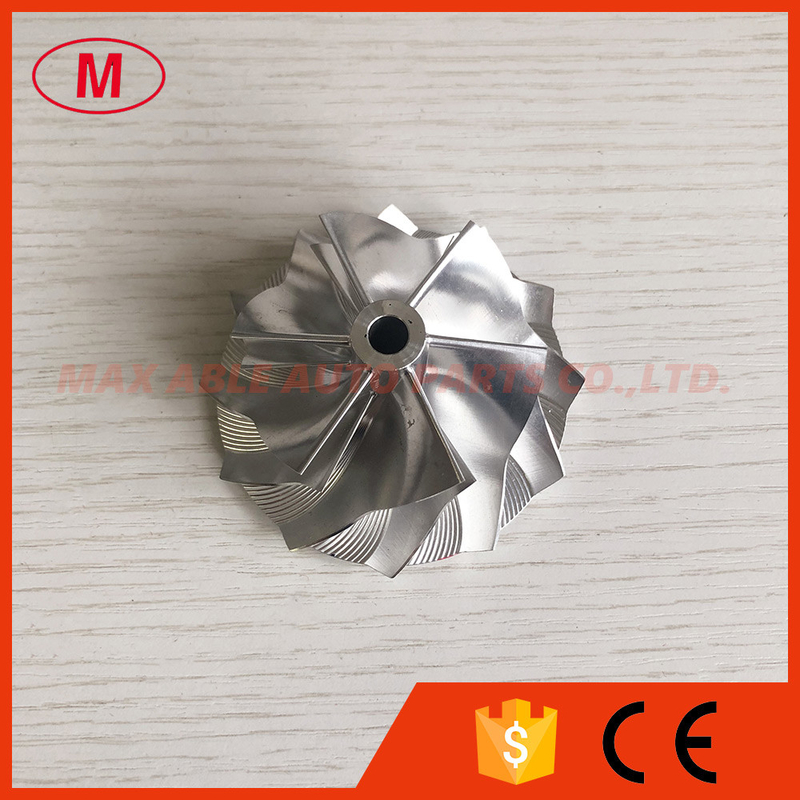

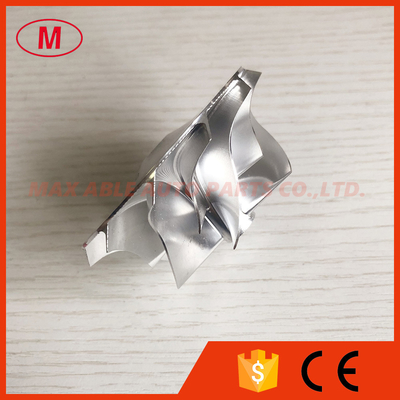

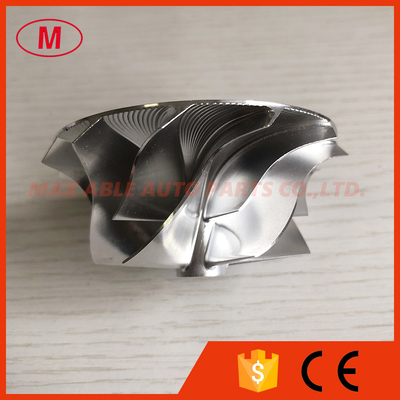

2.TD05H 52.00/68.01mm 6+6 blades reverse high performance Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.52mm
Inducer:52.00mm
Exducer:68.01mm
Tapered tip exducer:73.05mm
Tip height:5.37mm
Superback:2.90mm
Overall height:35.00mm
blades height:30.12mm
bore size :6.50mm
bore type:through
Trailing angle:45
Cutback:6.0
SP height angle:0.00
Splitter height:19.30mm
Tapered tip angle:30 degree
6+6 Blades
reverse rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced
we can also produce as your requirement.
