| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | CT10V |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:CT10V Forward

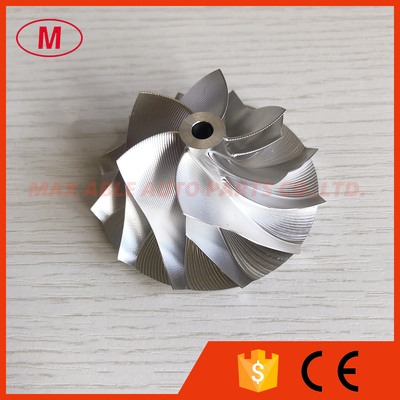

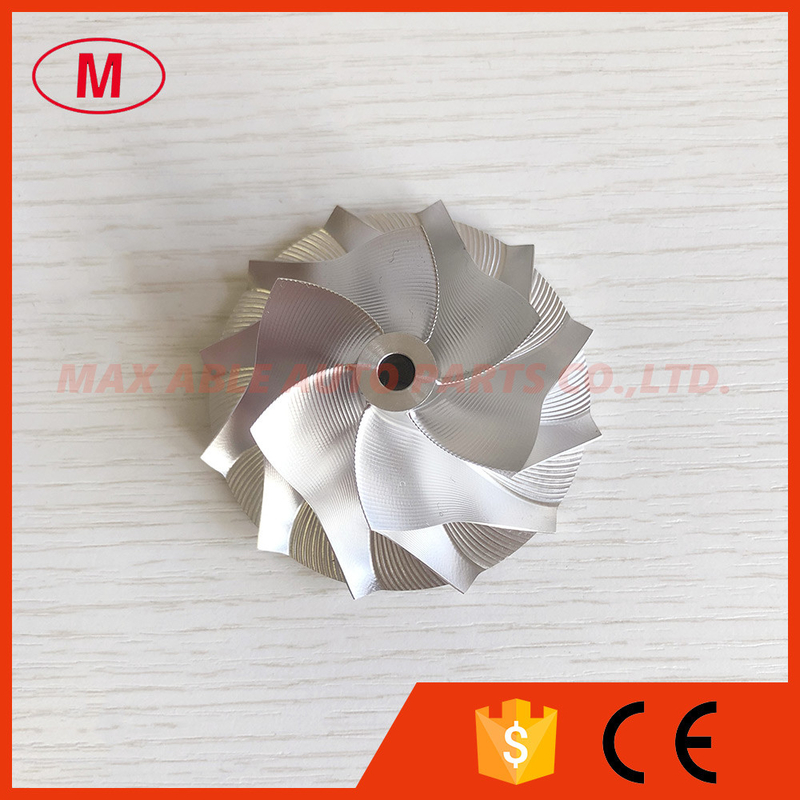

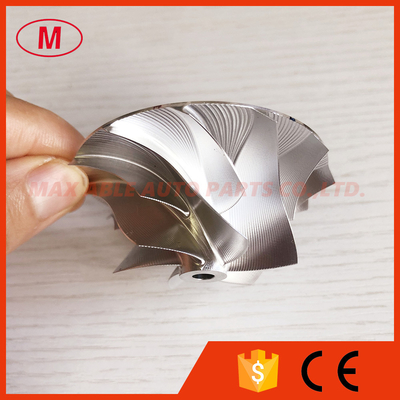

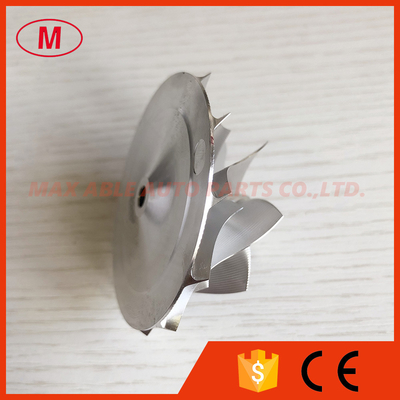

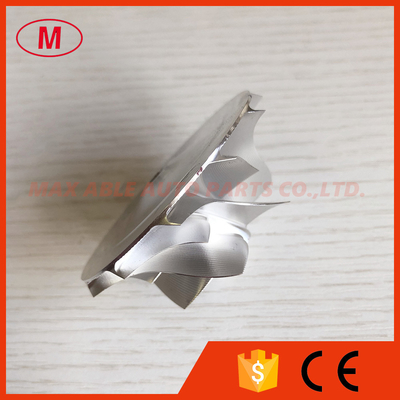

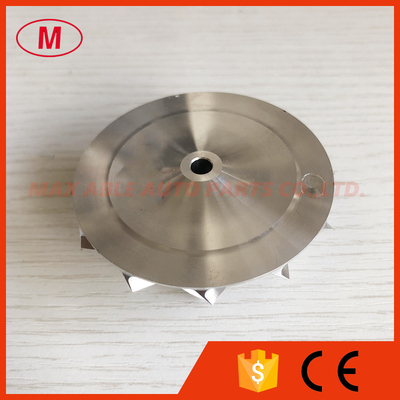

2. CT10V 17291-0L040 Upgrade 42.87/62.00mm 6+6 blades Point Milling, Air Curve, Performance Design turbo billet/milling/aluminum 2618 compressor wheel for 17201-0L040 Upgrade
3.Size:
Nose diameter:11.04mm
inducer:42.87mm
Exducer:62.00mm
Tapered tip Exducer:65.59mm
Tip height:4.11mm
Superback:2.45mm
Overall height:28.61mm
Bore size:5.10mm
Trailing angle:45
Blades height:24.16mm
Cutback:0.0
6+6 blades
Splitter height:0.00mm
sp height nagle:0.00
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me,we have many size.
All the compressor wheel have been balanced.
