| Brand Name: | NO |
| Model Number: | GTA15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 43.41/56.02mm | Type: | Turbochargers |
|---|

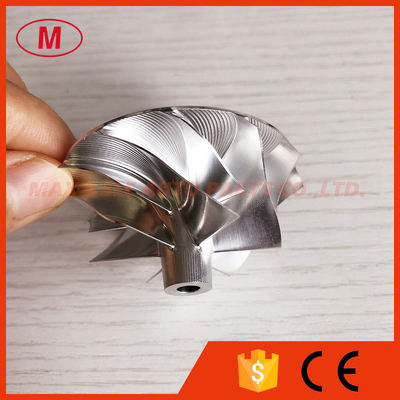

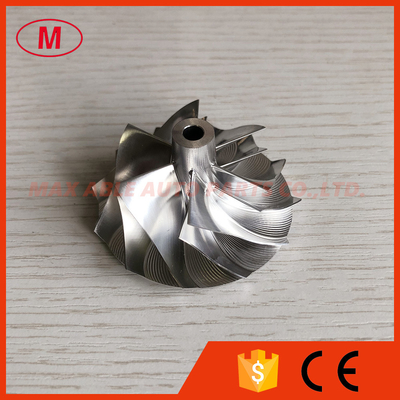

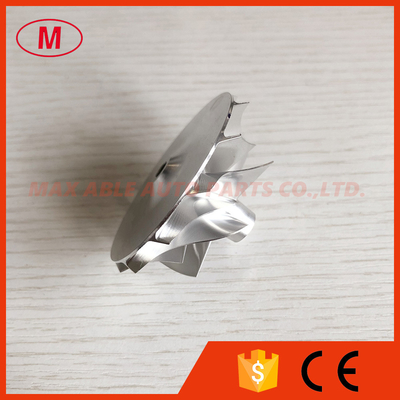

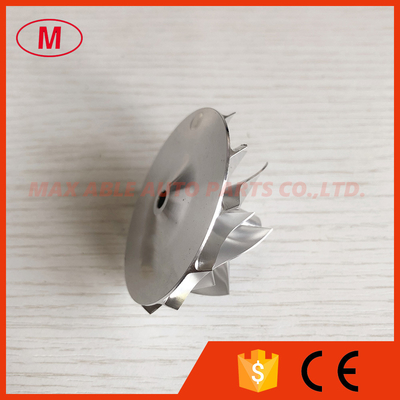

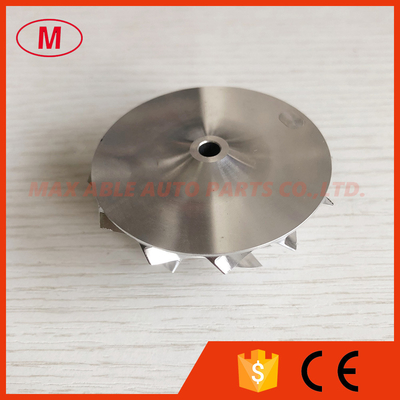

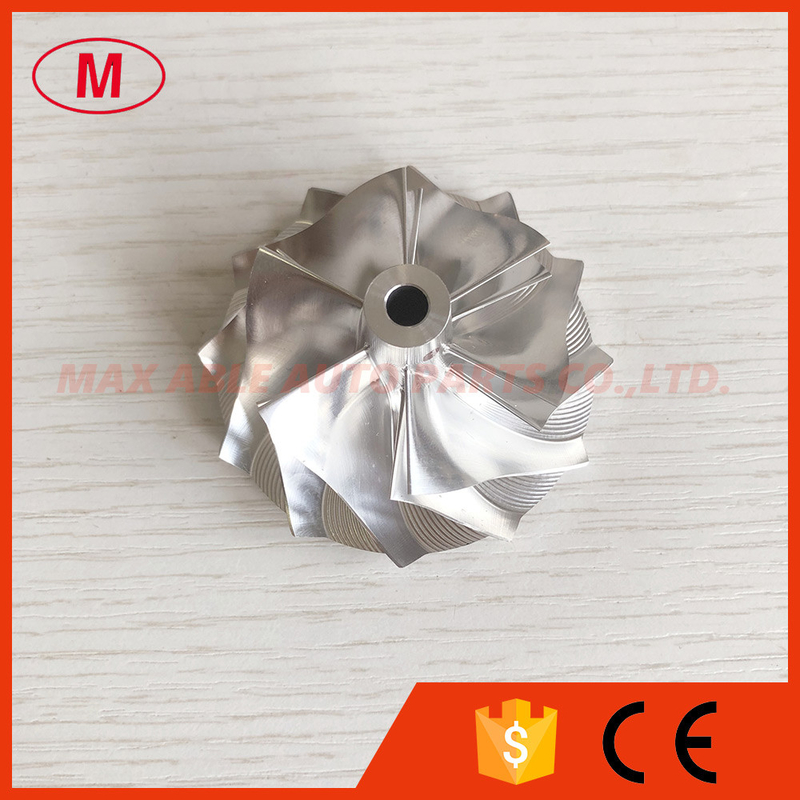

1.Model:GTA15-25 forward
3.Size:
Nose diamter:11.43mm
inducer:43.41mm
Exduder:56.02mm
Tapered tip exducer:59.92m
Tip height:4.38mm
Superback:2.39mm
Overall height:24.67mm
bore size :5.08mm
Trailing Angle:45
Cutback:0.00
SP height angle:0.0
Blade height:20.17mm
Splitter height:0.00mm
It is for OE compressor housing
11+0 blades
forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
