62.23/88.20mm 7+7blades turbo Turbocharger milling/aluminum 2618/billet compressor wheel

Model Number:	-

Contact Now

Detailed Product Description

Type:	Turbochargers

1. MODEL:forward

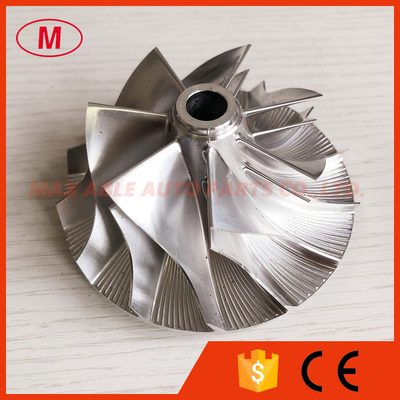

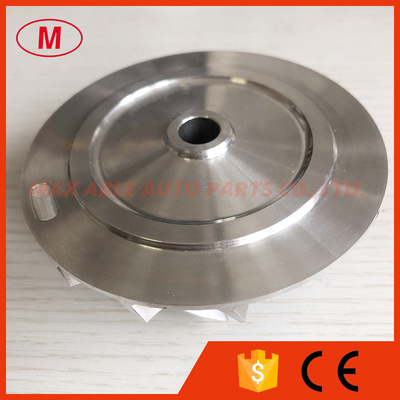

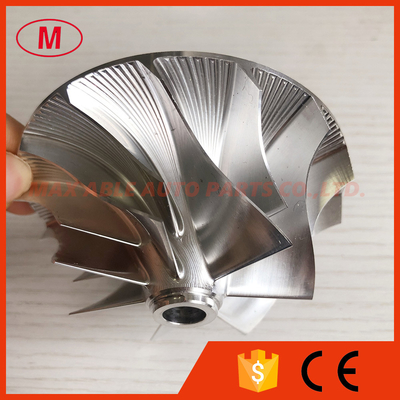

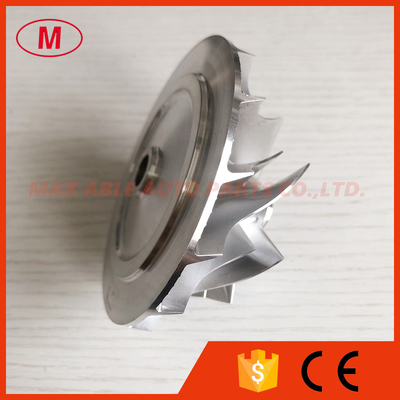

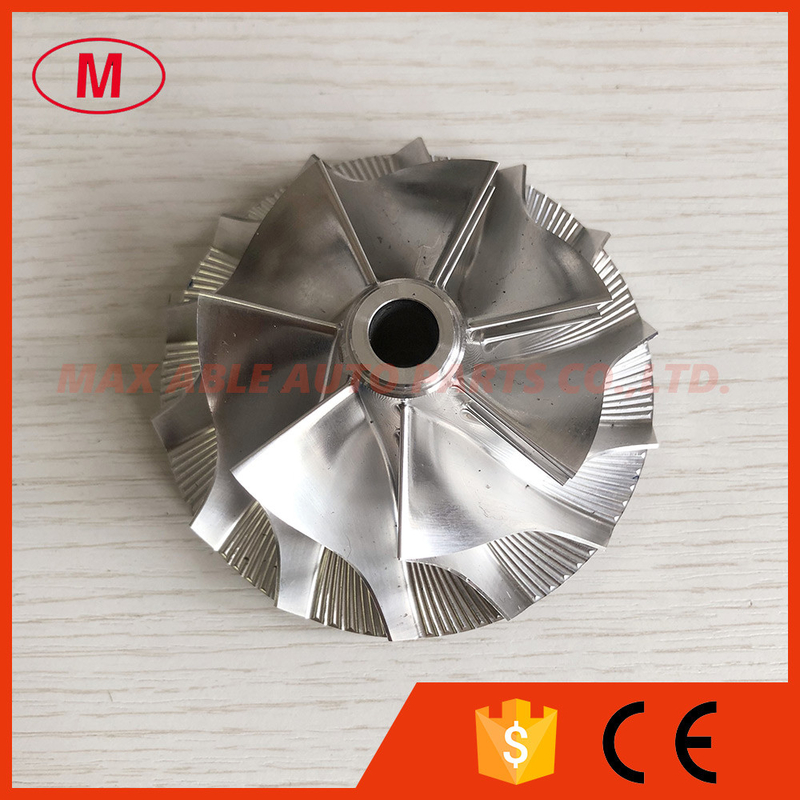

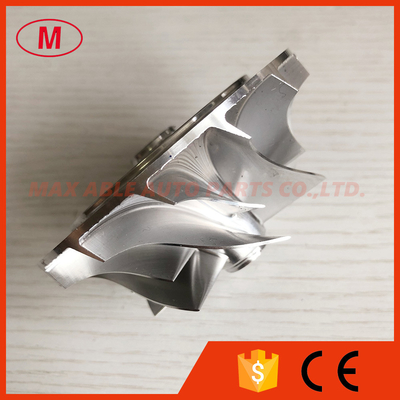

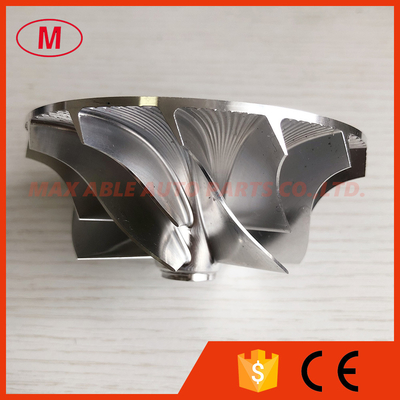

2. 62.23/88.20mm 7+7blades turbo Turbocharger Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:17.89mm

Inducer:62.23mm

exducer:88.20mm

Tip height:8.60mm

Superback:5.00mm

Overall height:42.68mm

bore size :9.99mm

bore type:Through

Trailing Angle:60

Cutback:-0.3

SP height angle:-0.30

Blades height:32.62mm

Splitter height:23.43mm

7+7 blades forward

Tapered tip angle: 0 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

SKYPE: maxabledieselparts

wechat/whatsapp:+86-18018657719
