Model Number: | T04Z |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000 |
Size: | 70.30/94.00mm | Type: | Turbochargers |
---|
1. MODEL:T04Z Forward

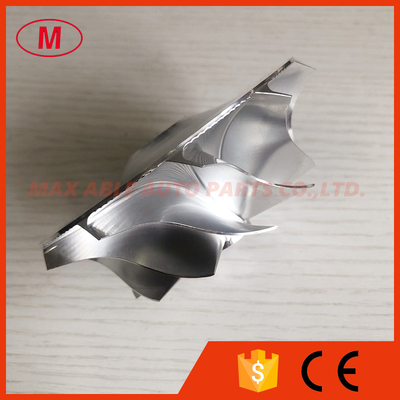

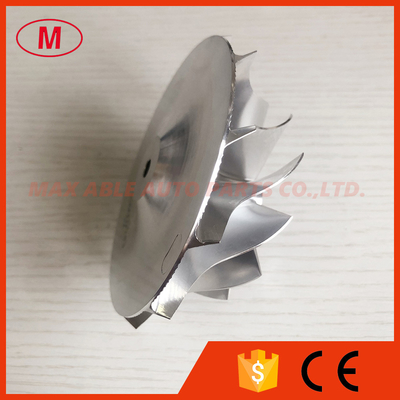

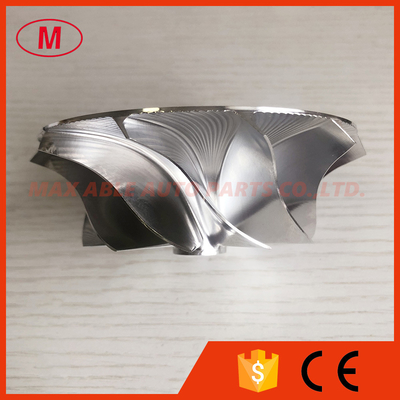

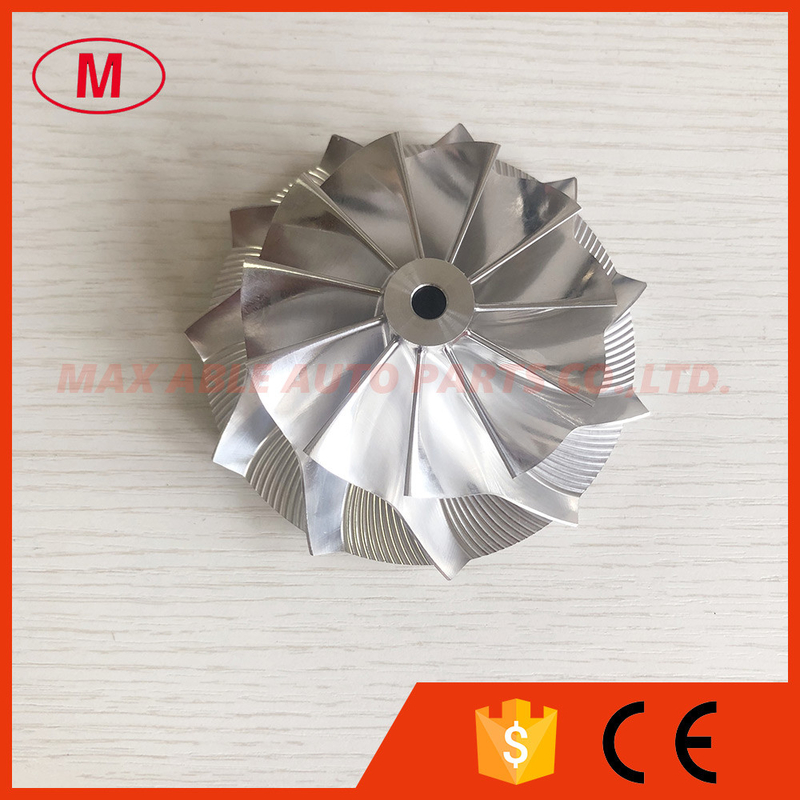

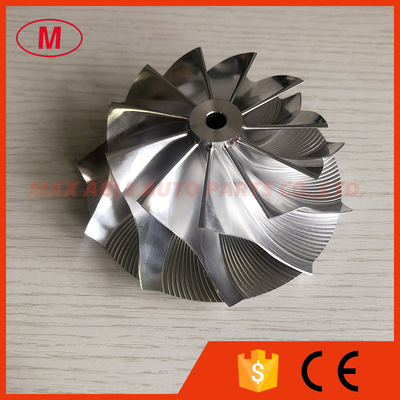

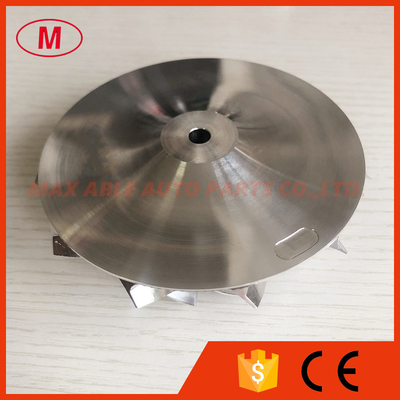

2.T04Z 70.30/94.00mm 11+0 blades Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:16.50mm
Inducer:70.30mm
Exducer:94.00mm
Tapered tip exducer:100.50mm
Tip height:6.63mm
super back:4.75mm
overall height:40.00mm
bore size :6.35mm
Trailing angle:45
Cutback:2.0
Splitter height:0.00mm
SP height angle:0.00
Blades height:32.60mm
11+0 blades
forward rotation
Tapered tip angle:30 degree
It is for custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
