| Place of Origin: | China |
| Brand Name: | no |
| Model Number: | K16 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days after payment |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 10000pcs |
1. MODEL:K16 forward

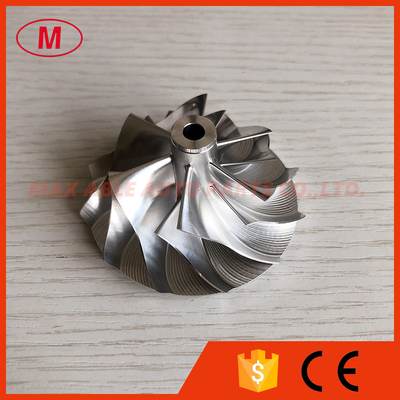

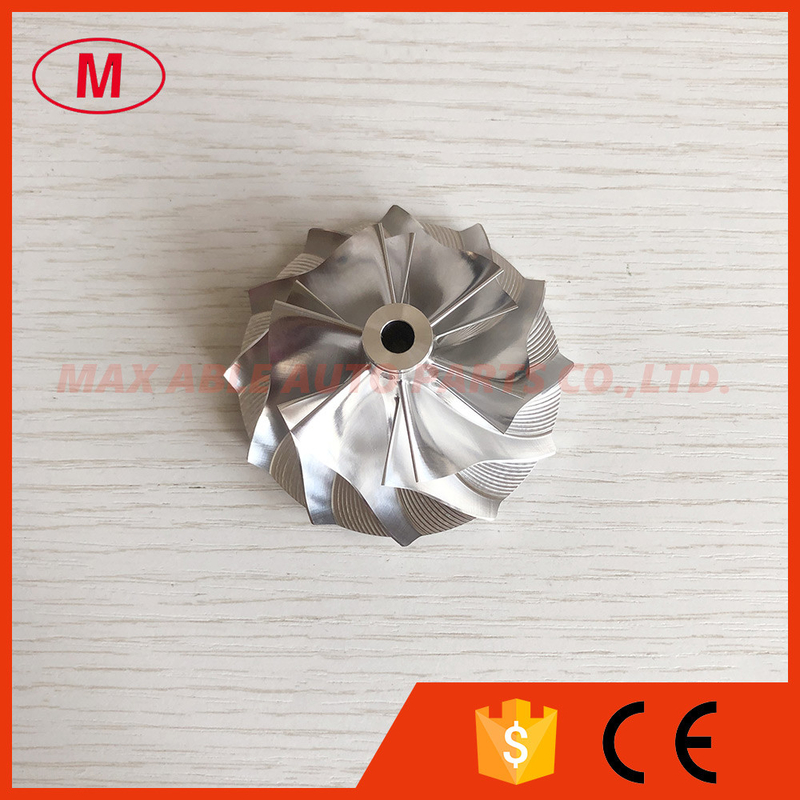

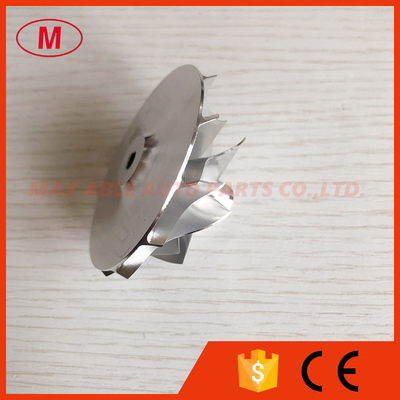

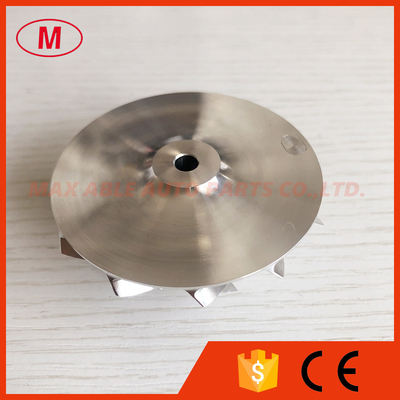

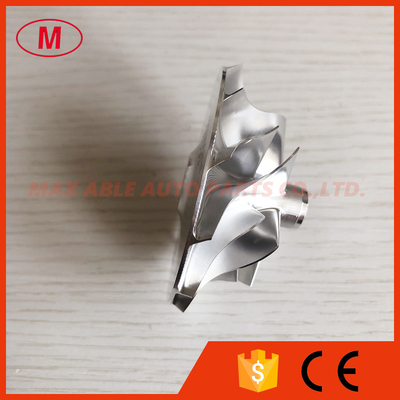

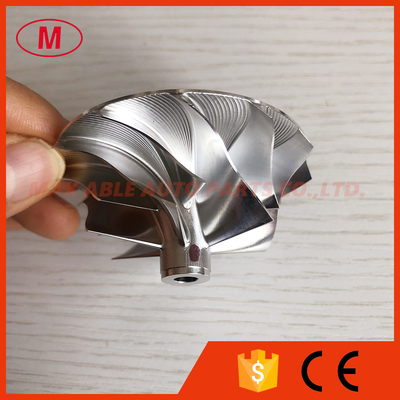

2.K16 5324-123-2201 45.78/61.98mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 5324-970-7401 / 5324-970-740
3.Size:
Nose diameter:11.69mm
inducer:45.78mm
Exduder:61.98mm
Tapered tip exducer:65.58mm
Tip height:4.63mm
Superback:2.67mm
Overall height:32.37mm
bore size :5.41mm
Trailing Angle:50
Cutback:8.0
Splitter height:16.15mm
sp height angle:-6.00
Blades height:23.25mm
6+6 blades
Forward rotation
Tapered tip angle:27 degree
Fit for OE compressor housing
Application:
5324-970-7401
5324-970-7400
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
