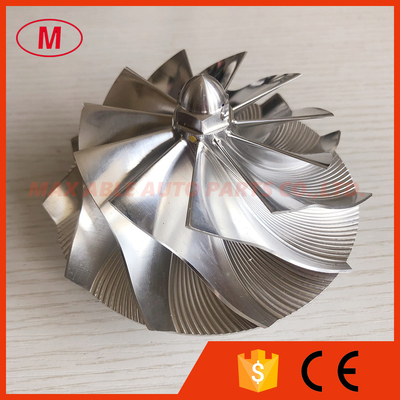

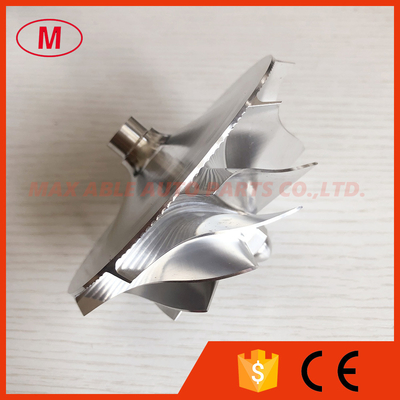

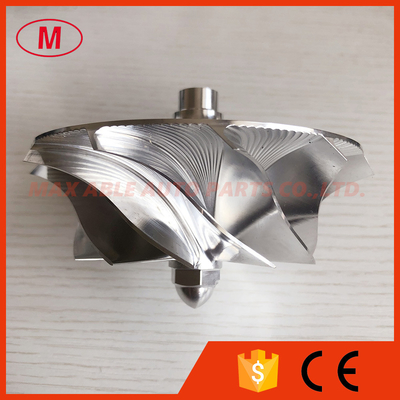

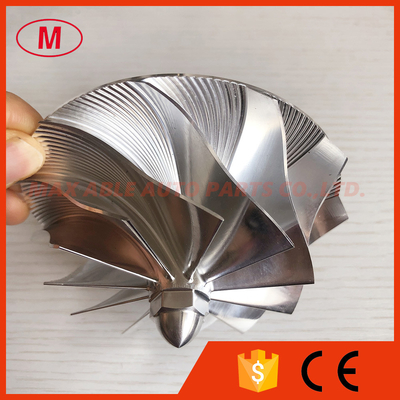

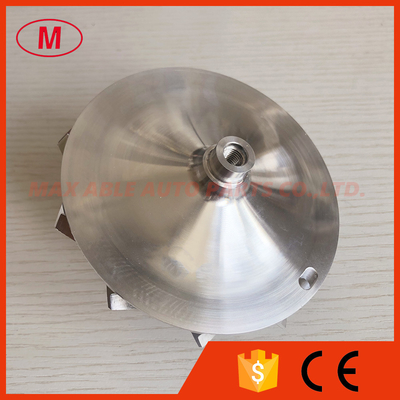

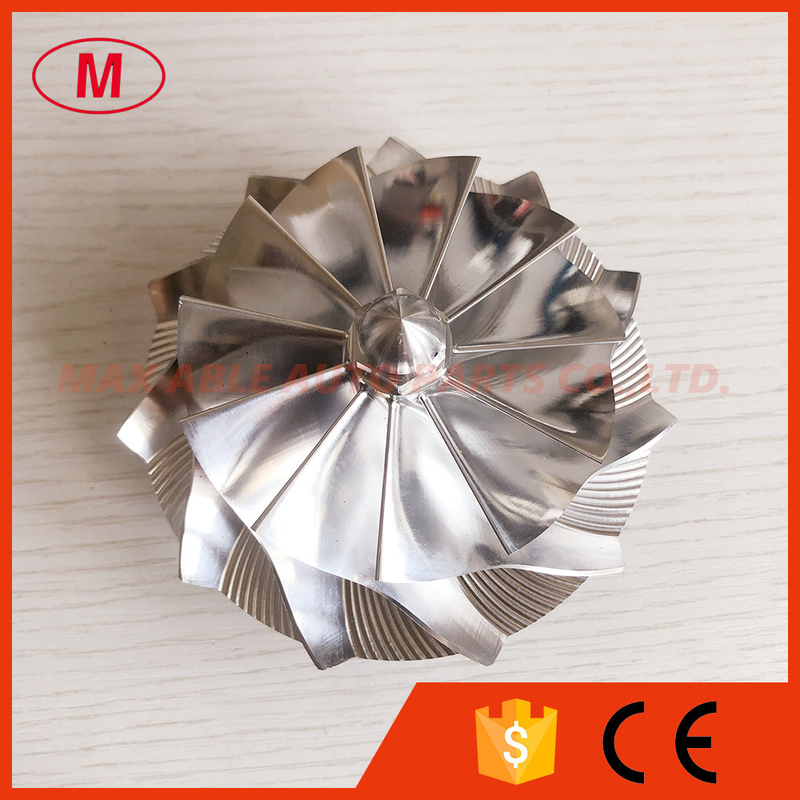

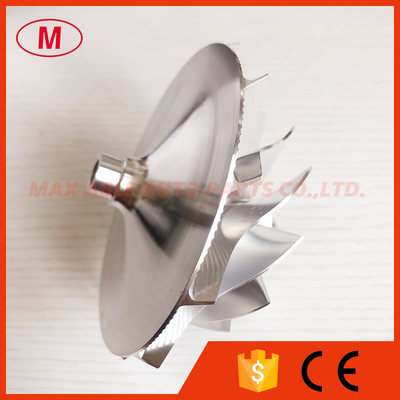

GTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D Upgrade

GTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D Upgrade

    • GTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D Upgrade
    • GTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D Upgrade
    • GTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D Upgrade
    • GTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D Upgrade
    • GTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D Upgrade
    • GTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D Upgrade
    • GTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D Upgrade
    • GTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D Upgrade

    Product Details:

    Place of Origin: China
    Brand Name: no
    Model Number: GTB4702

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Packaging Details: neutral packing
    Delivery Time: 3-7 days after payment
    Payment Terms: TT,western union ,paypal
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:GTB4702 forward
    2.GTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D Upgrade
    3.Size:
    Nose diameter:17.40mm
    Inducer:76.00mm
    exducer:102.38mm
    Tapered tip exducer:108.67mm
    Tip height:6.94mm
    Superback:20.83mm
    bore size :8.27mm
    Bore type:Boreless-M8x1.0LHT
    Overall height:70.06mm
    Cutback:0.0
    Splitter height:0.00mm
    SP height angle:0.00
    Trailing Angle:55
    Blades height:33.23mm
    11+0blades forward
    It is custom size ,please check carefully before buying.
    Tapered tip Angle:30 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
    GTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D UpgradeGTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D UpgradeGTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D UpgradeGTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D UpgradeGTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D UpgradeGTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D UpgradeGTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D UpgradeGTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D UpgradeGTB4702 76.00/102.38mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for 14201-00Z1D Upgrade
