Customer Satisfy is the eternal pursue of corporation.
Place of Origin: | CHINA |
Brand Name: | NO |
Model Number: | TD05 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000 |
1. MODEL:TD05 reverse

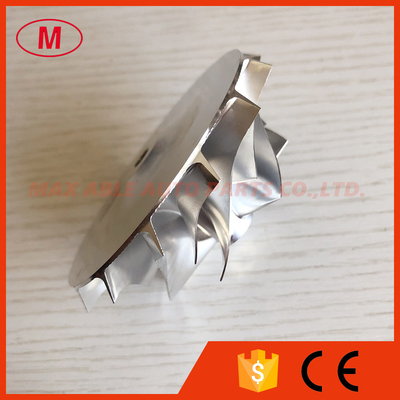

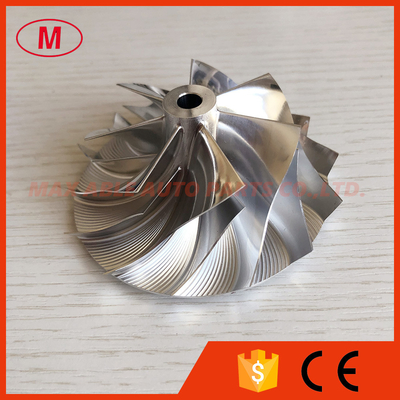

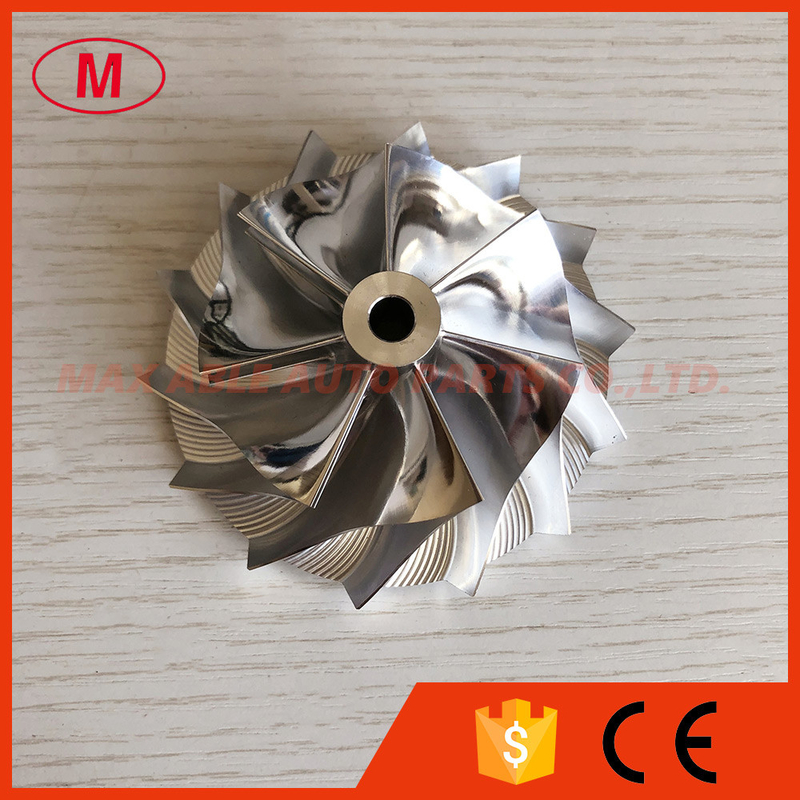

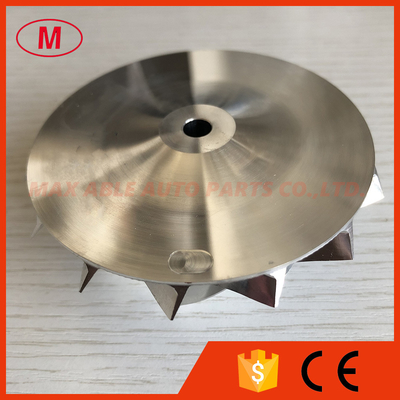

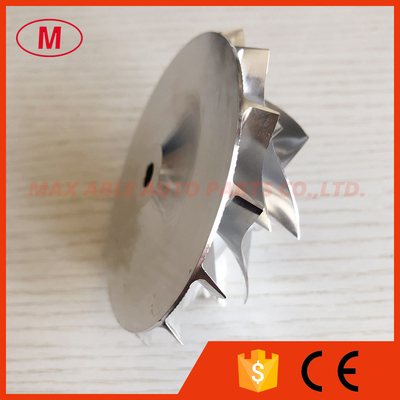

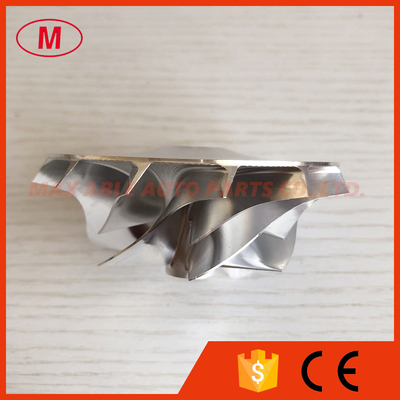

2. TD05 reverse 57.69/78.00mm 7+7 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
inducer:57.69mm
exducer:78.00mm
Nose diameter:14.20mm
tapered tip exducer:85.06mm
tip height:7.11mm
super back:2.90mm
Overall height:35.57mm
bore size :6.50mm
bore type:through
Trailing angle:70 degree
Cutback:7.0
Splitter height:19.30mm
SP height angle:-7.90
blades height:29.67mm
7+7 blades
reverse rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced
We can produce as your requirement.
Skype: maxabledieselparts
Wechat/Whatsapp:+86-18018657719
