Customer Satisfy is the eternal pursue of corporation.
Brand Name: | NO |
Certification: | ISO |
Model Number: | B03G |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL: B03G reverse

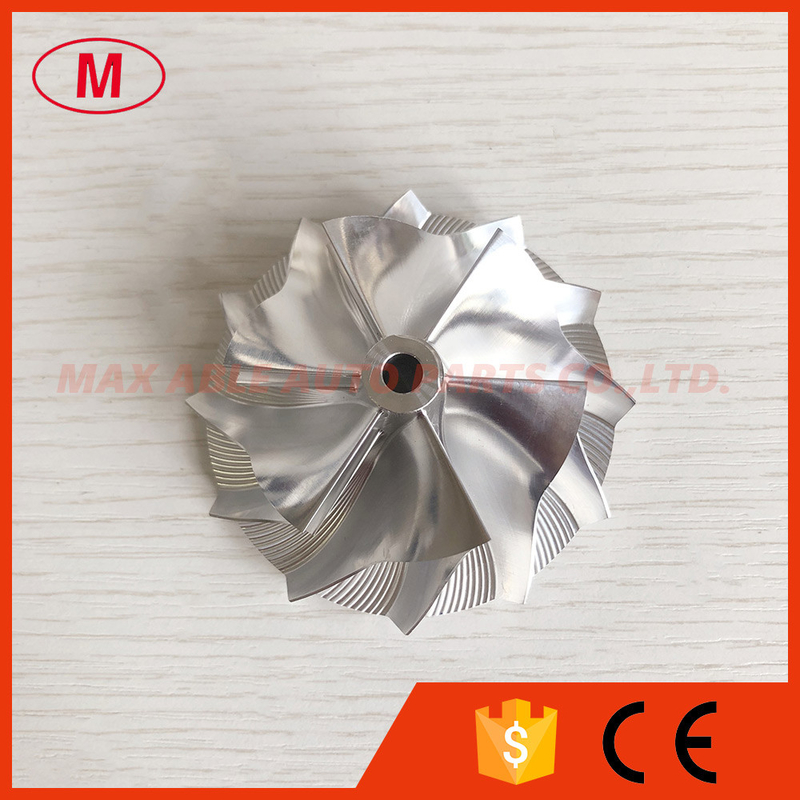

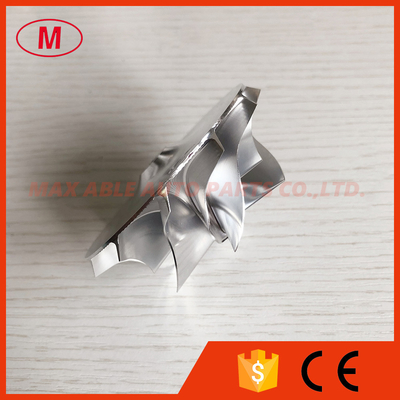

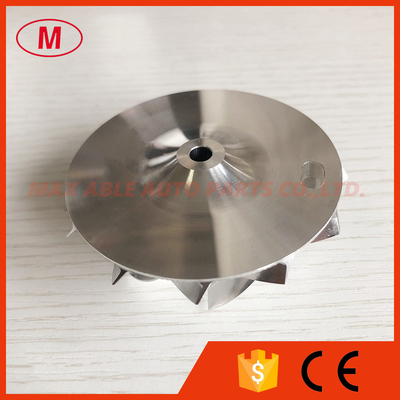

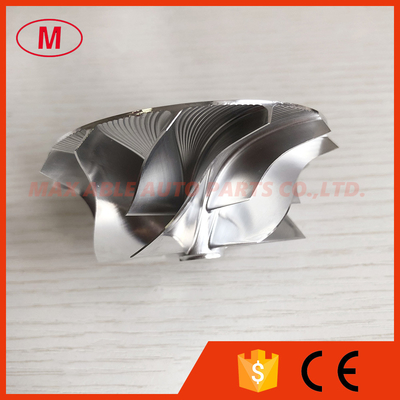

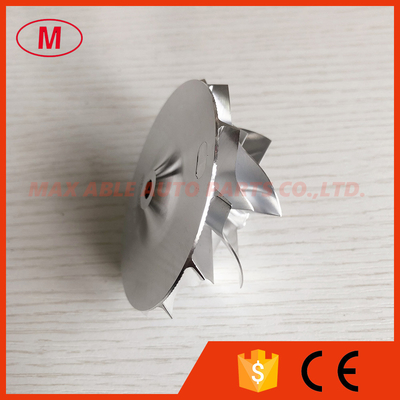

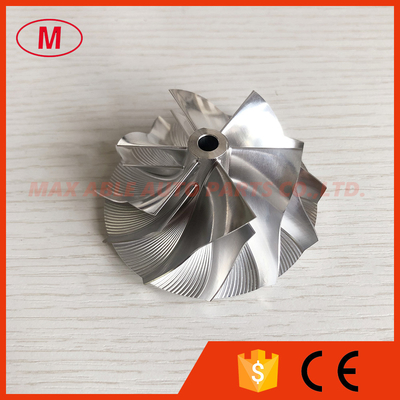

2.B03G reverse 51.00/68.00mm 6+6 blades high performance turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.40mm
Inducer:51.00mm
exducer:68.00mm
Tapered tip exducer:72.97mm
Tip height:5.30mm
Superback:3.81mm
bore size :5.61mm
Overall height:32.00mm
Cutback:0.0
Trailing Angle:60
Sp height angle:-1.00
Blade height:26.20m
Splitter height :17.70mm
6+6blades reverse
It is Custom size ,please check carefully before buying.
Tapered tip Angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
|
