Home ProductsBillet compressor wheel

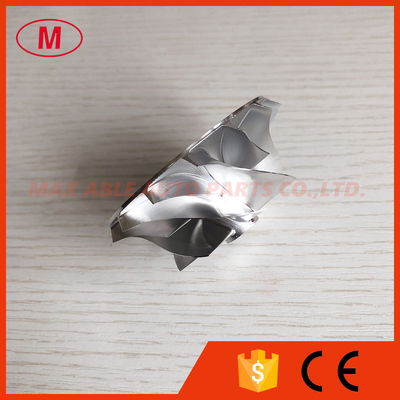

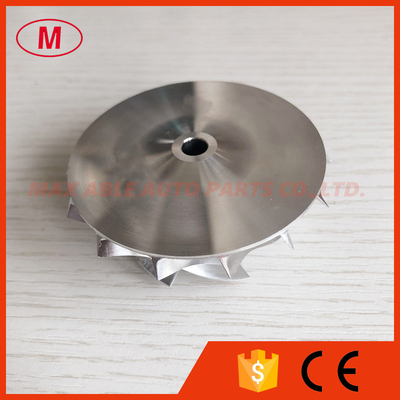

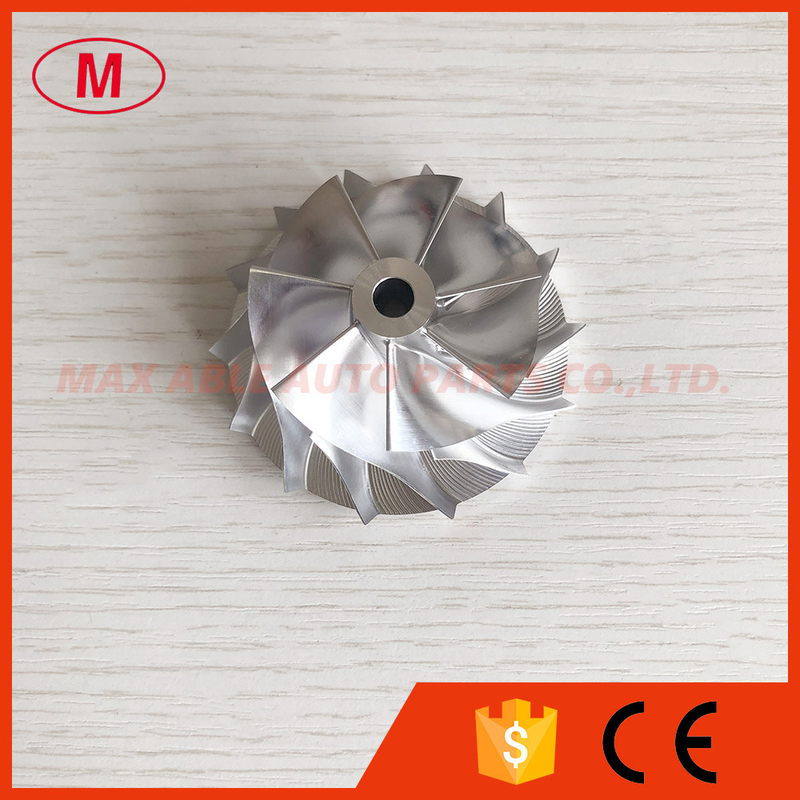

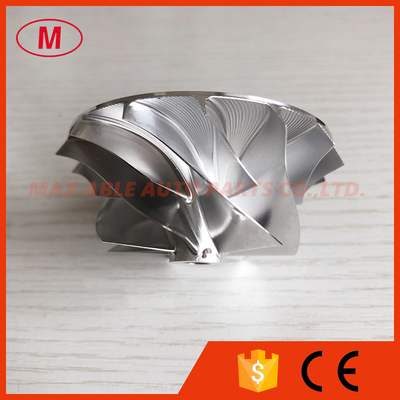

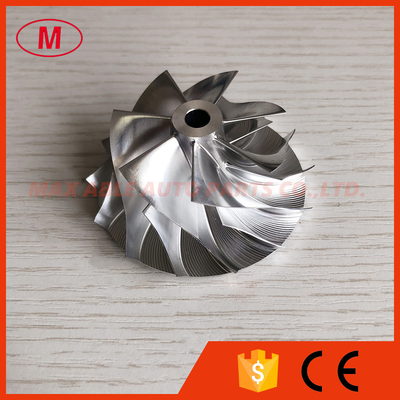

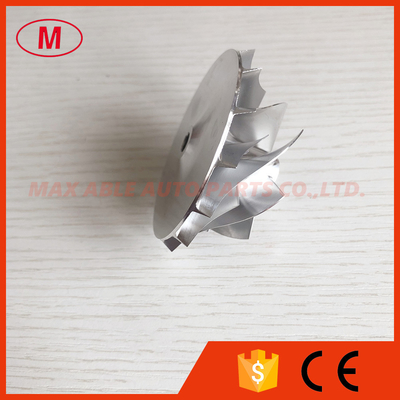

RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171

RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171

    • RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171
    • RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171
    • RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171
    • RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171
    • RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171
    • RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171
    • RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171

    Product Details:

    Model Number: RHF5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Delivery Time: 3-7 days after payment
    Payment Terms: TT,western union ,paypal
    Contact Now
    Detailed Product Description

    1. MODEL:RHF5 forward
    2.RHF5 45.28/60.00mm 7+7 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for VF23/1441AA171
    3.Size:
    Nose diameter:12.50mm
    Inducer:45.28mm
    exducer:60.00mm
    Tapered tip exducer:65.06mm
    Tip height:5.39mm
    Superback:1.85mm
    bore size :6.11mm
    Overall height:29.32mm
    Trailing angle:75
    Cutback:3.0
    SP Height angle:2.00
    Blades height:25.40mm
    Splitter height:14.05mm
    7+7 blades
    forward rotation
    Tapered tip angle:30 degree
    It is for OE compressor housing
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
    RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171
