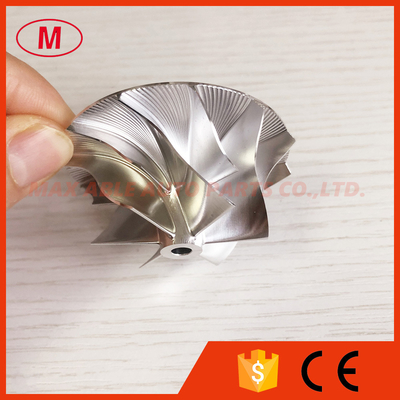

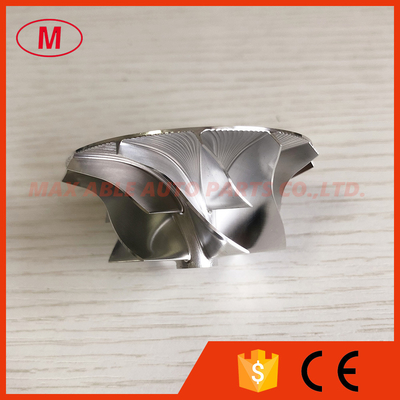

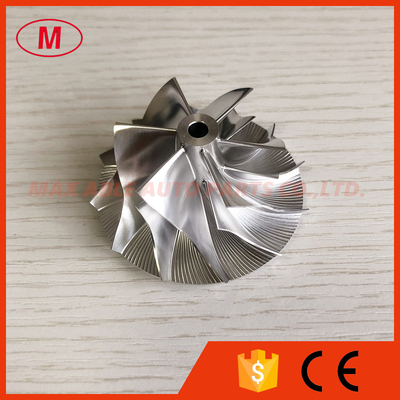

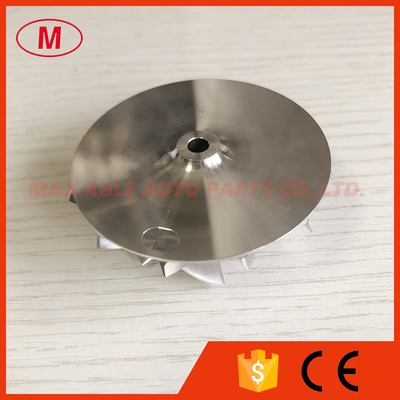

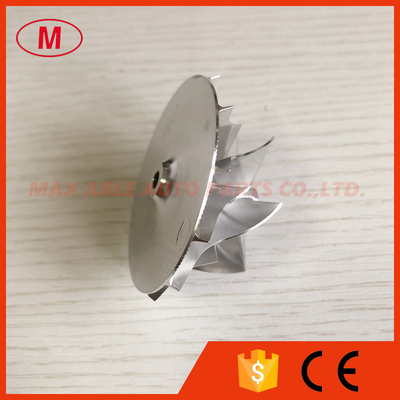

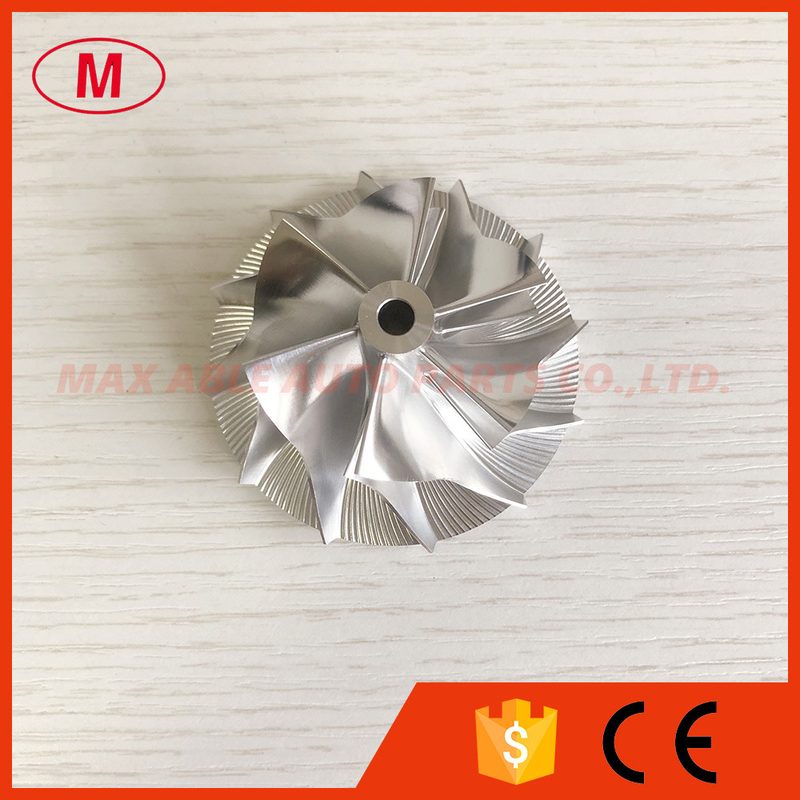

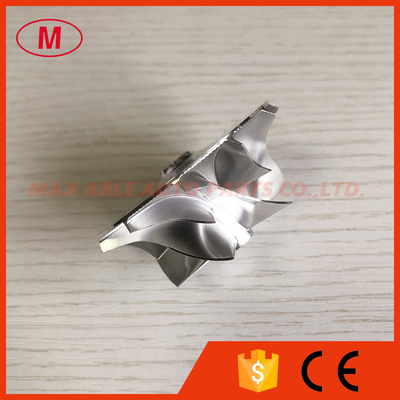

K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel

K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel

    • K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
    • K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
    • K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
    • K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
    • K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
    • K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
    • K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
    • K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel

    Product Details:

    Model Number: K04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description
    Size: 40.50/56.08mm Type: Turbochargers

    1. K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel for 5304-970-0126 VW  Amarok

    2.SIZE:

    Nose diameter:9.68mm

    inducer:40.50mm

    Exducer:56.08mm

    Tapered tip exducer :59.22mm

    tip height:3.55mm

    trailing angle:75 degree

    Tip height:3.55mm

    Superback:2.60mm

    Overall height:27.70mm

     bore size :4.61mm

    cutback:0.0

    splitter height:13.80mm

    sp height angle:-4.00

    Blade height:23.30mm

    6+6 blades

    It is for OE compressor housing.

    tapered tip angle:30 degree

    4.Good quality and competitive price

    5.Please send email to me or talk to me on online ,if you want to know more details.

    All the billet compressor wheel have been balanced.

    K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheelK04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheelK04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheelK04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheelK04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheelK04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheelK04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
