| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:GT15-25 forward

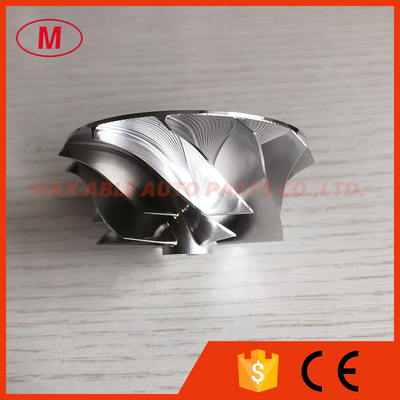

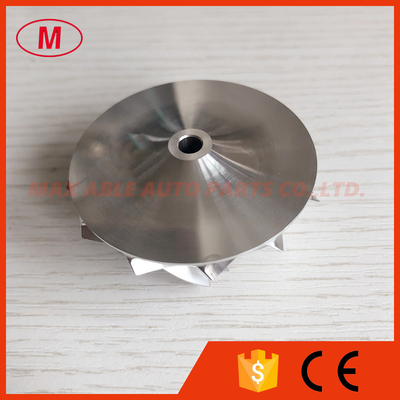

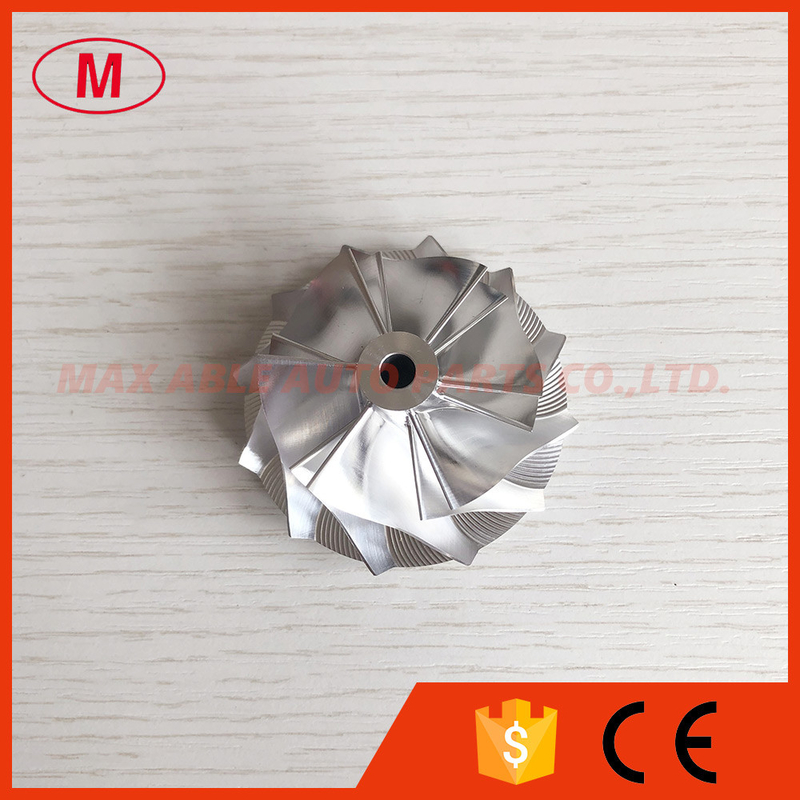

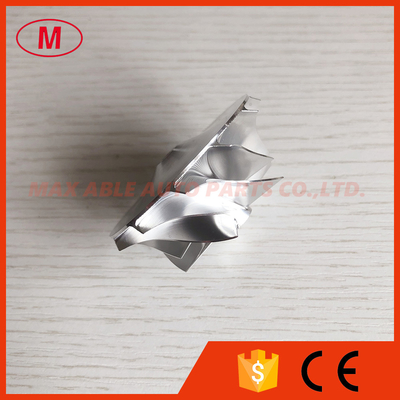

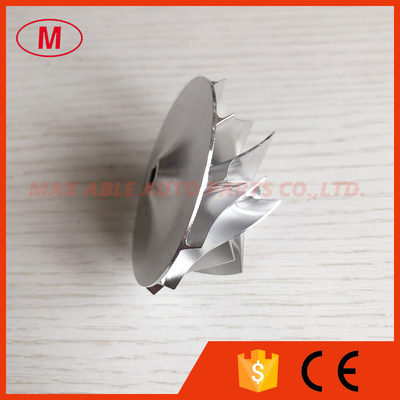

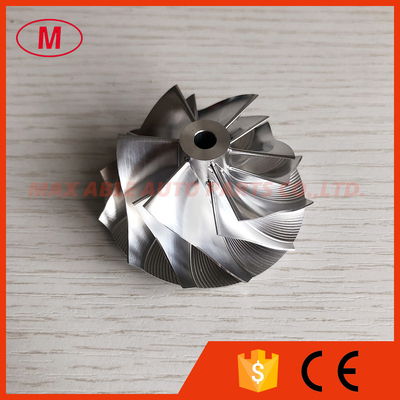

2.GT15-25 41.80/54.00mm 6+6 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel for GTI MK7 / 06K145702R Upgrade
3.Size:
Nose diameter:11.74mm
Inducer:41.80mm
Exducer:54.00mm
Tapered tip exducer:57.53mm
Tip height:4.06mm
super back:3.90mm
overall height:28.00mm
Trailing angle:60
bore size :5.08mm
Cutback:3.0
Splitter height :17.00mm
sp height angle:-3.70
Blade height:22.10mm
6+6 blades
It is custom size ,please check carefully before buying.
Tapered tip angle: 30 degree
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced
