1.Model:GTA2052V forward

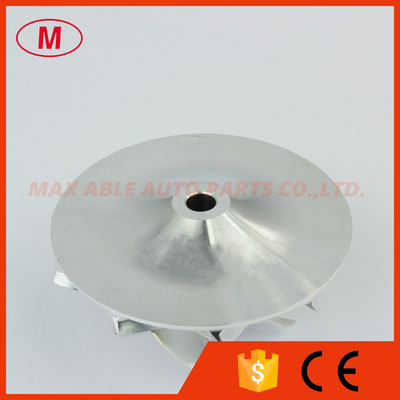

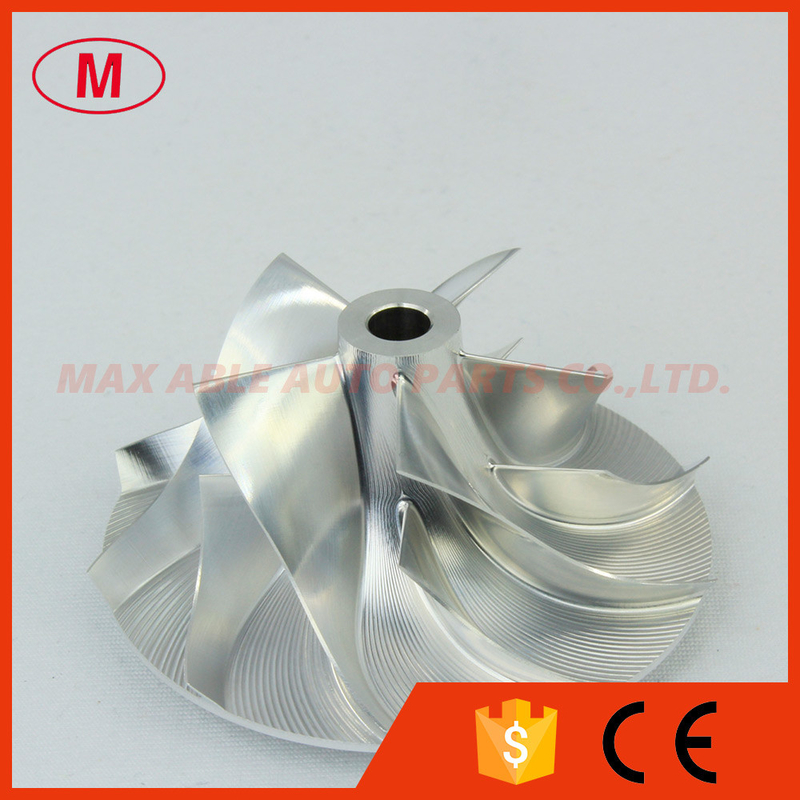

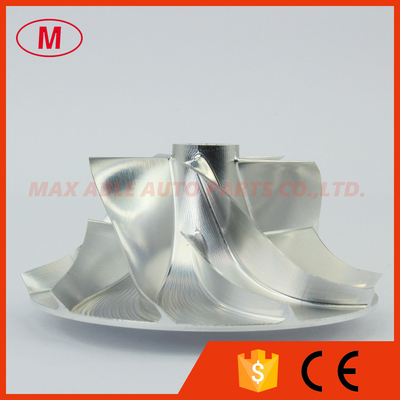

2.GTA2052V 717697-0003 34.85/52.00mm 5+5 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 752610-0009 , 752610-0010 , 752610-0012 , 752610-0013 , 752610-0015 , 752610-0025 , 752610-0026 , 752610-0029 , 752610-0032 , 752610-5009S , 752610-5010S , 752610-5012S , 752610-5013S , 752610-5015S , 752610-5025S , 752610-5026S , 752610-5029S , 752610-5032S
3.SIZE:
Nose Diameter:10.00mm
inducer:34.85mm
Exducer:52.00mm
Ttapered tip exducer:54.92mm
Tip height:3.53mm
Superback:3.90mm
Overall height:27.00mm
bore size :5.08mm
bore type:through
Trailing angle:60 degree
Cutback:0.0
SP Height angle:-10.10
Blade height:21.10mm
Splitter height:11.90mm
5+5blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
Application:
752610-0009 ,
752610-0010 ,
752610-0012 ,
752610-0013 ,
752610-0015 ,
752610-0025 ,
752610-0026
, 752610-0029 ,
752610-0032 ,
752610-5009S ,
752610-5010S ,
752610-5012S ,
752610-5013S ,
752610-5015S ,
752610-5025S ,
752610-5026S ,
752610-5029S ,
752610-5032S
4.Good quality and competitive price
5. aluminum 2618/milling/ billet high performance compressor wheel
6.Please send email to me or talk to me on online ,if you want to know more details.
All the compressro wheels have been balanced.
we can produce as your requirement ,the minimun order 5pcs
