1.Model:GT3271 Forward

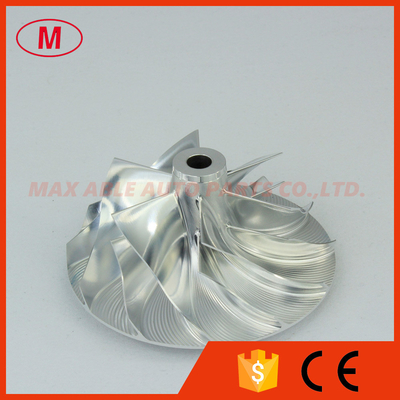

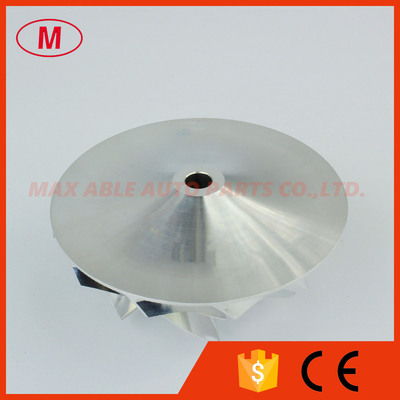

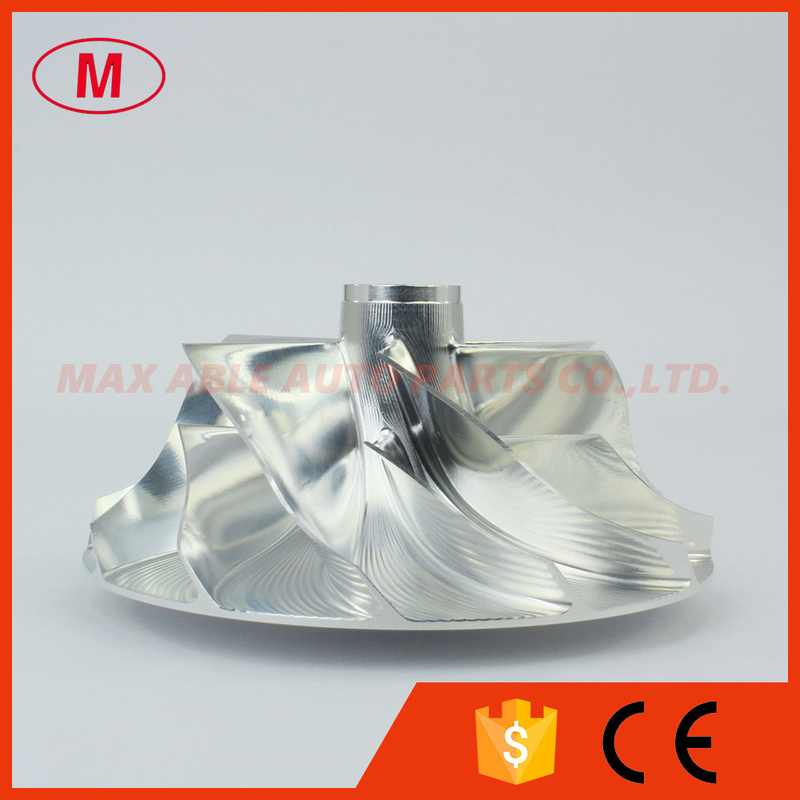

2.GT3271 434244-0012 51.16/70.97mm 6+6Blades turbo billet/aluminum 2618/Milling compressor wheel for 479017/704409 HINO
3.Size:
Nose diameter:14.10mm
Inducer:51.16mm
Exducer:70.97mm
Tip height:5.89mm
Trailing angle:50
Superback:4.75mm
Bore:6.35
Cutback:0.0
Overall height:36.05mm
SP Height angle:-5.40
Blades height:24.72mm
Splitter height:16.10mm
6+6 blades
Tapered tip angle:0 degree
forward rotation
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
6.Application:
479017/704409
All the compressor wheel have been balanced.
we can produce as your requirement ,the minimum order is 5pcs.
