Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | gtx3071 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

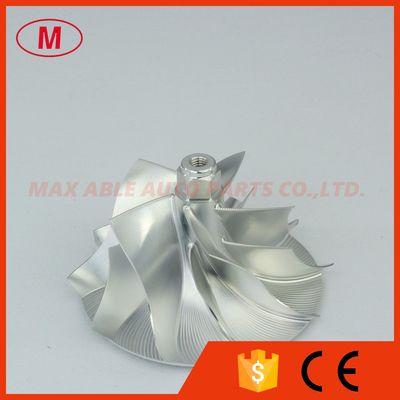

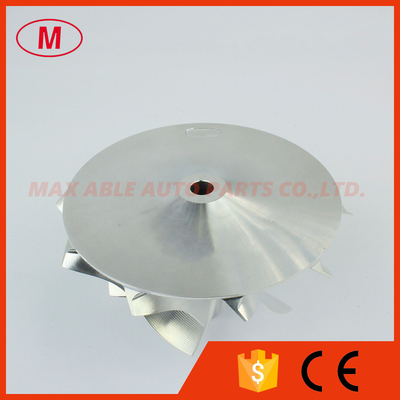

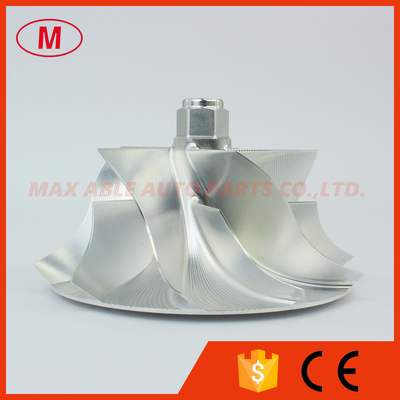

1.Model:GTX3071 forward
3.Size:
Nose diamter:14.00mm
inducer:54.70mm
Exduder:72.00mm
Tapered tip exducer:79.67mm
Tip height:4.84mm
Superback:2.36mm
Overall height:46.00mm
bore size :5.99mm
bore type:Threaded-M5x0.8LHT
Trailing angle:45 degree
Cutback:0.0
SP Height angle:0.00
Blades height:32.00mm
Splitter height:20.00mm
5+5 blades
Forward rotation
Tapered tip angle:45 degree
it is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The minimun order is 5pcs
The more models we also have.
