Home ProductsBillet compressor wheel

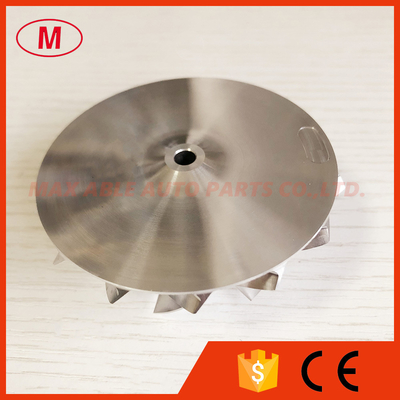

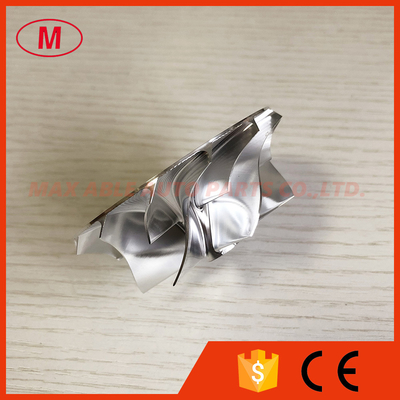

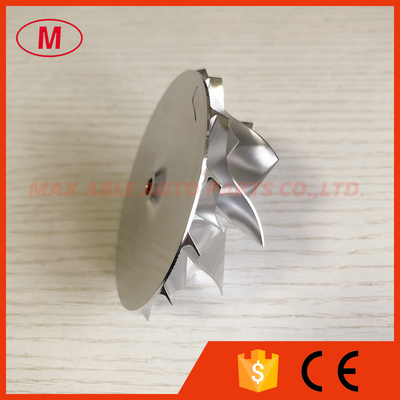

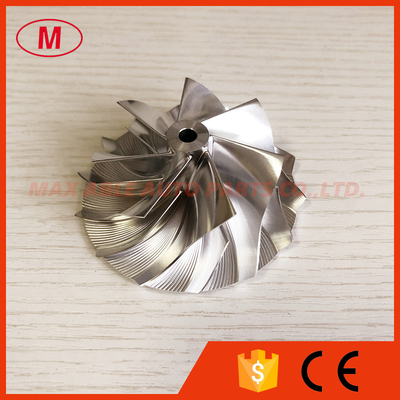

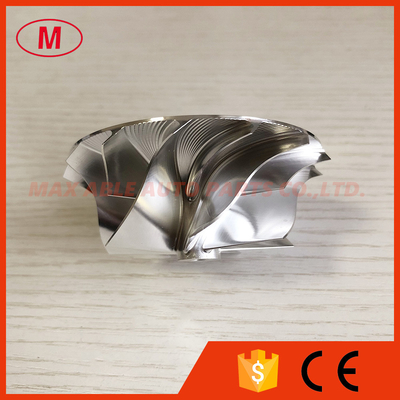

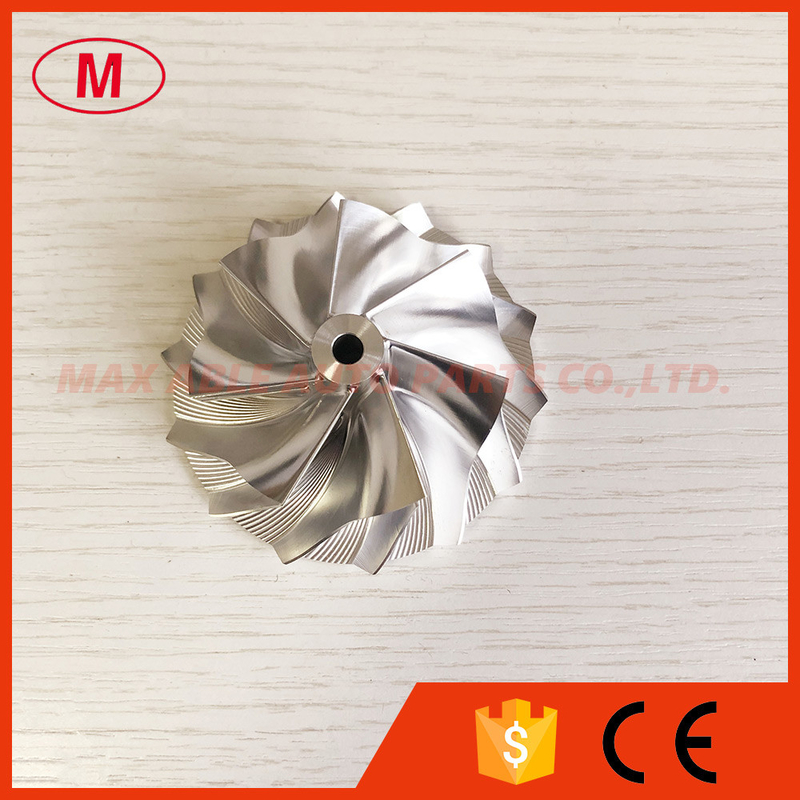

RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo milling/aluminum 2618/billet compressor wheel

RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo milling/aluminum 2618/billet compressor wheel

    • RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Model Number: RHF5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: Bosch
    Delivery Time: 3-7 days after payment
    Payment Terms: TT,western union ,paypal
    Contact Now
    Detailed Product Description

    1. MODEL:RHF5 reverse
    2.RHF5 reverse 54.50/70.00mm 7+7 blades High performance Turbo Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:12.00mm
    Inducer:54.50mm
    exducer:70.00mm
    Tapered tip exducer:74.16mm
    Tip height:4.60mm
    Superback:1.53mm
    bore size :5.10mm
    Bore type:through
    Overall height:30.00mm
    Cutback:3.0
    Trailing Angle:50
    SP height angle:0.00
    Blade height:26.37mm
    Splitter height:13.00mm
    7+7 blades reverse
    It is custom size ,please check carefully before buying.
    Tapered tip Angle:30 degree



    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
