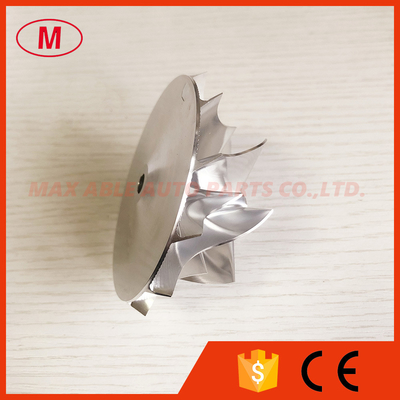

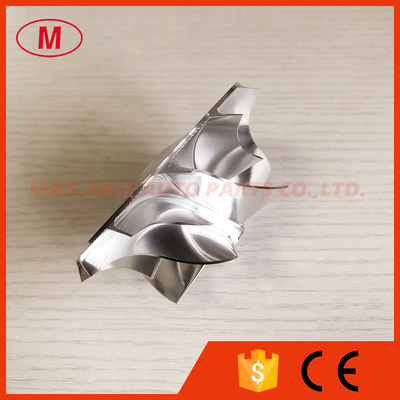

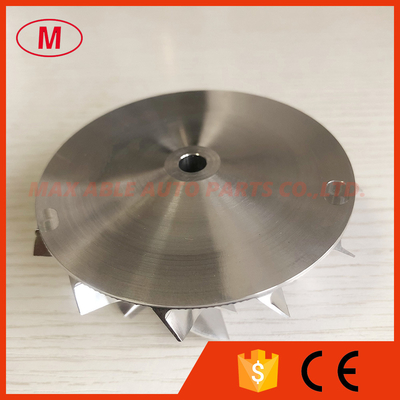

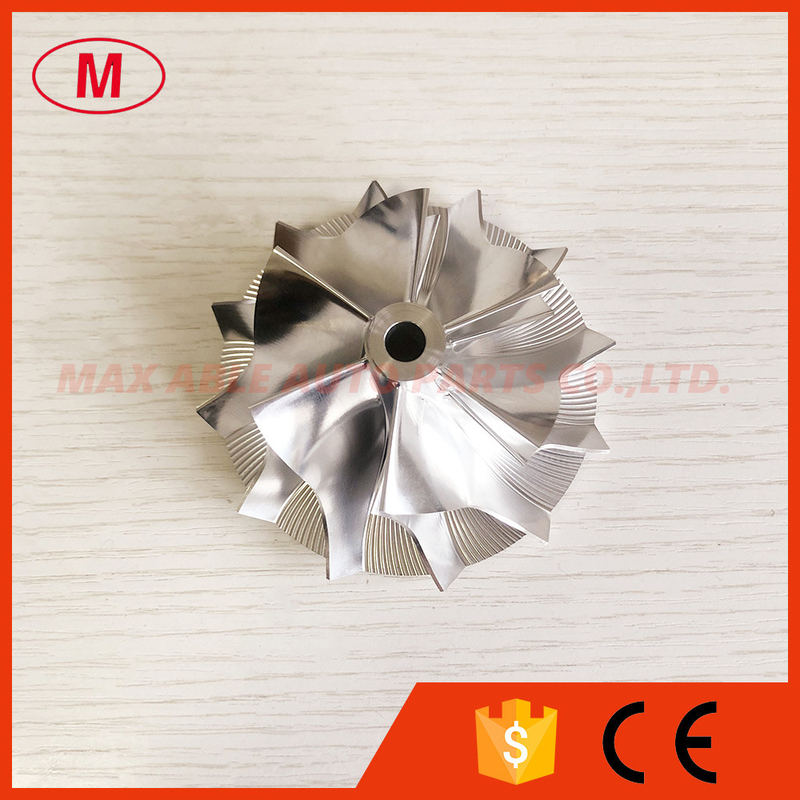

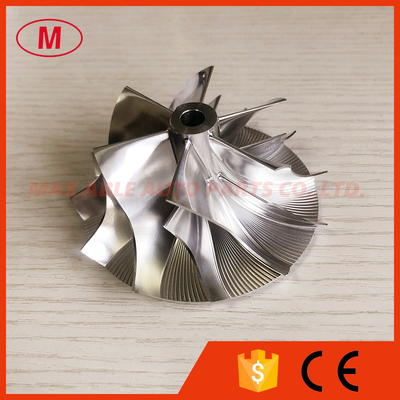

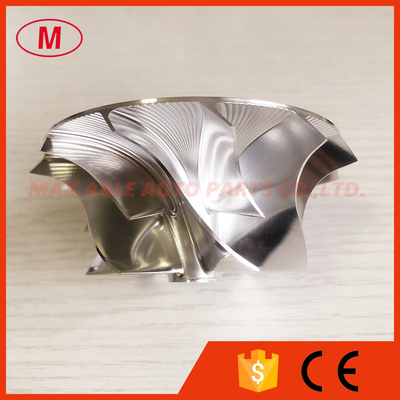

TD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel

TD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel

    • TD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
  • TD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel

    Product Details:

    Place of Origin: CHINA
    Brand Name: NO
    Model Number: td07s

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT/western union/paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description

    1. MODEL:TD07S FORWARD

    2. TD07S 57.69/78.00mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel

    3.Size:

    Nose diameter:13.92mm

    inducer:57.70mm

    exducer:78.00mm

    Tapered tip exducer:85.05mm

    tip height:7.71mm

    superback:2.70mm

    Overall height:38.00mm

    bore size :7.00mm

    Trailing angle:50

    Cutback:0.0

    splitter height:21.90mm

    sp height angle:-11.70

    blades height:33.10mm

    6+6 blades

    forward rotation ​Tapered tip angle:30 degree ​

    It is custom size ,please check carefully before buying.

    4.High quality and competitive price.

    5.Any questions please send email to me.



    All the compressor wheel have been balanced.



    We can produce as your requirement.

    TD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheelTD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheelTD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheelTD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheelTD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheelTD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
