| Brand Name: | NO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF5 forward

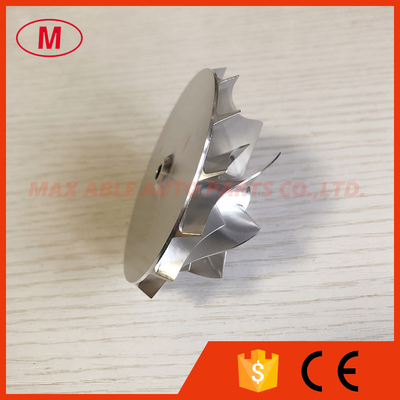

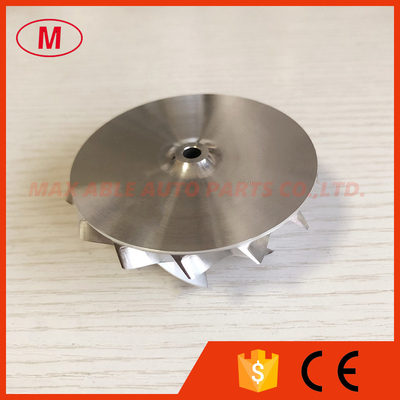

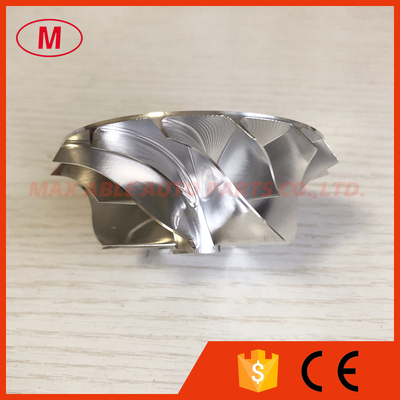

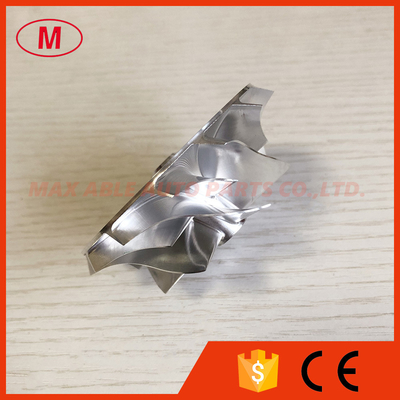

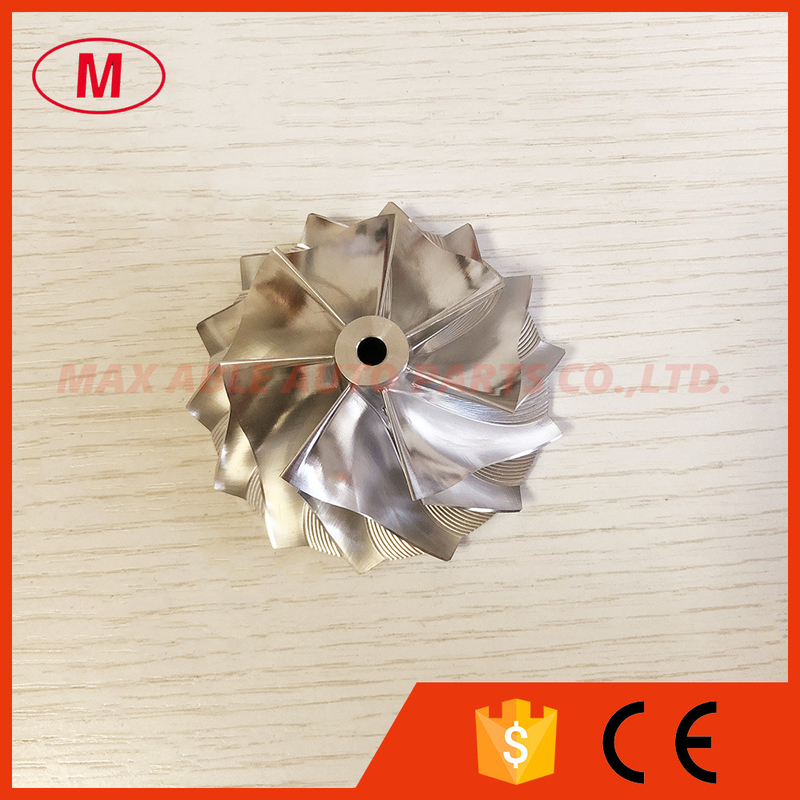

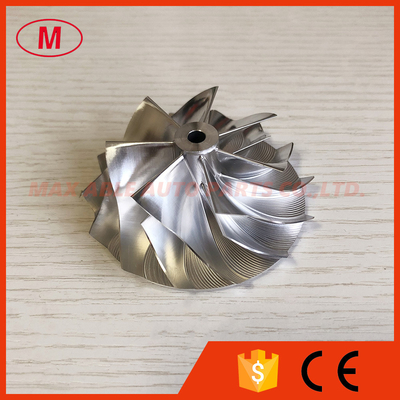

2.RHF5 52.56/68.00mm 7+7 blades high performance turbochargeraluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:12.90mm
Inducer:52.56mm
exducer:68.00mm
Tapered tip exducer:74.04mm
Tip height :6.23mm
superback:1.90mm
Overall height:29.00mm
Bore size:5.10mm
Trailing Angle:55
Cutback:0.0
Sp height Angle:0.00
Blades height:25.05mm
Splitter height:15.00mm
7+7 blades
Forward rotation
Tapered tip Angle:30 degree
It is custom size,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
