| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TB25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TB25 forward

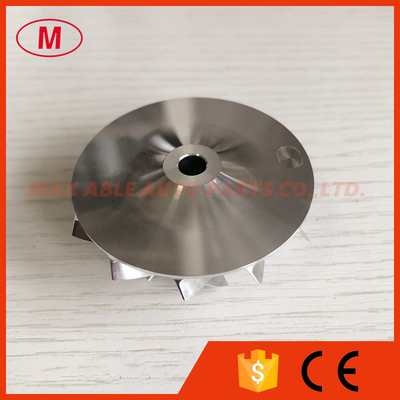

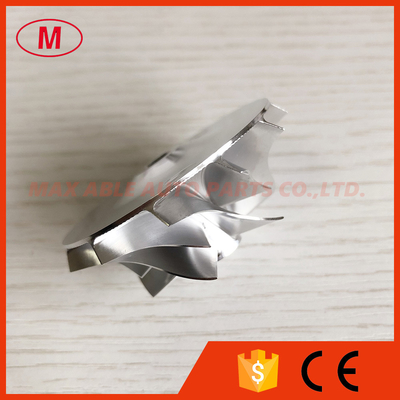

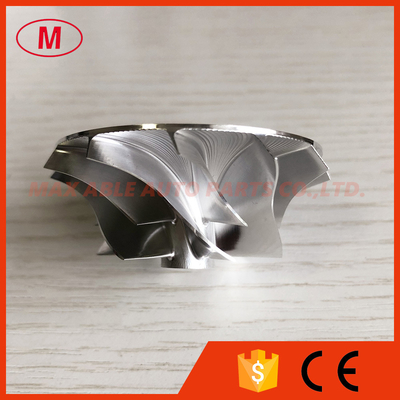

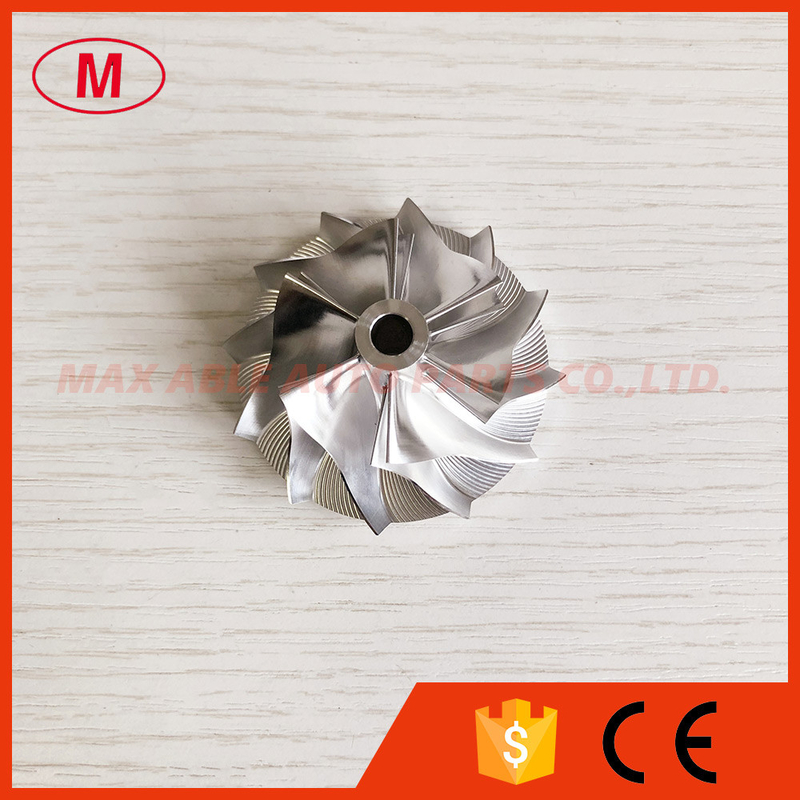

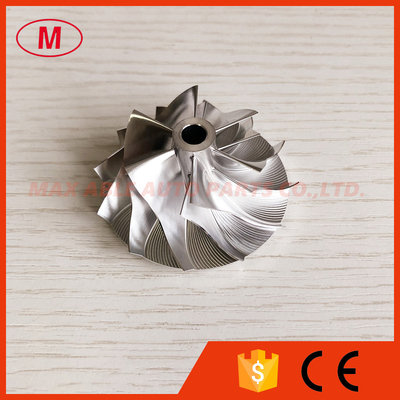

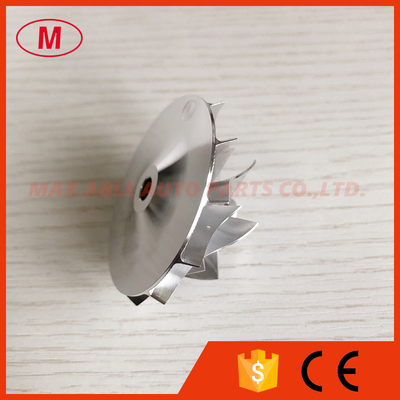

2.TB25 431350-0017 36.30/51.37mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel 454096-0001/465247-0001/465475-0002/465489-0004/0005/465589-0001/0002/0003/0004/466888-0001/466974-0002/0005/0008
3.Size:
Nose diameter:10.60mm
inducer:36.30mm
Exduder:51.37mm
Tapered tip exducer:55.85mm
Tip height:4.88mm
Superback:2.24mm
Overall height:24.50mm
bore size :5.99mm
Trailing Angle:65
Cutback:0.0
Splitter height:14.50mm
SP height angle:-5.20
Blades height:20.15mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
Fit for OE compressor housing
Application:
454096-0001
465247-0001
465475-0002
465489-0004
465489-0005
465589-0001
465589-0002
465589-0003
465589-0004
466888-0001
466974-0002
466974-0005
466974-0008
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
