Customer Satisfy is the eternal pursue of corporation.
Place of Origin: | China |
Brand Name: | no |
Model Number: | RHF5 |
Minimum Order Quantity: | 1PCS |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days after payment |
Payment Terms: | TT,western union ,paypal |
Supply Ability: | 10000pcs |
1. MODEL:RHF5 REVERSE

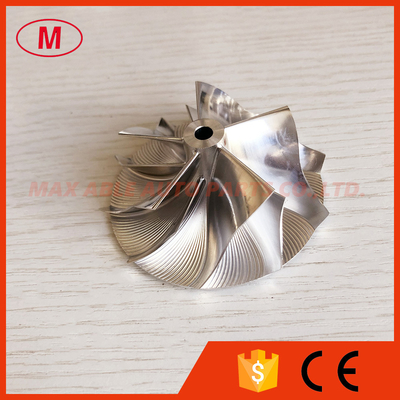

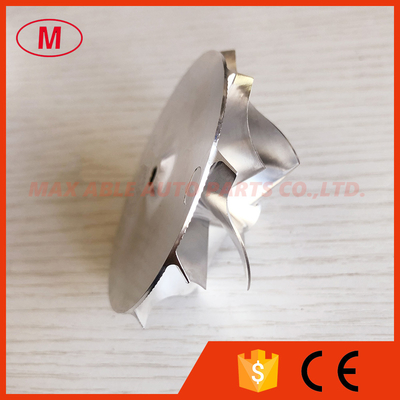

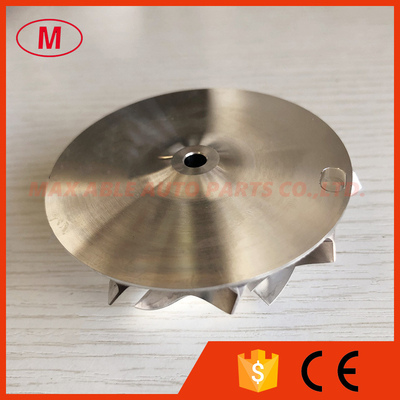

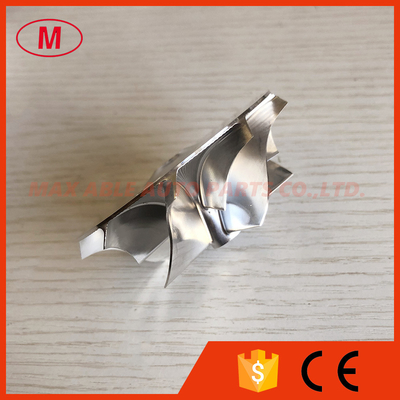

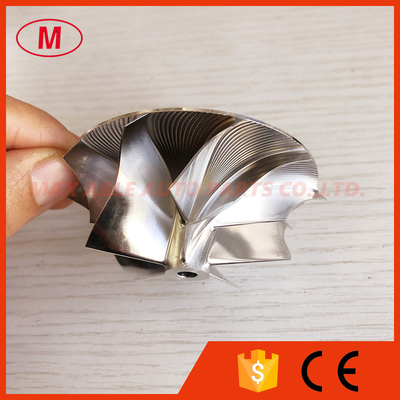

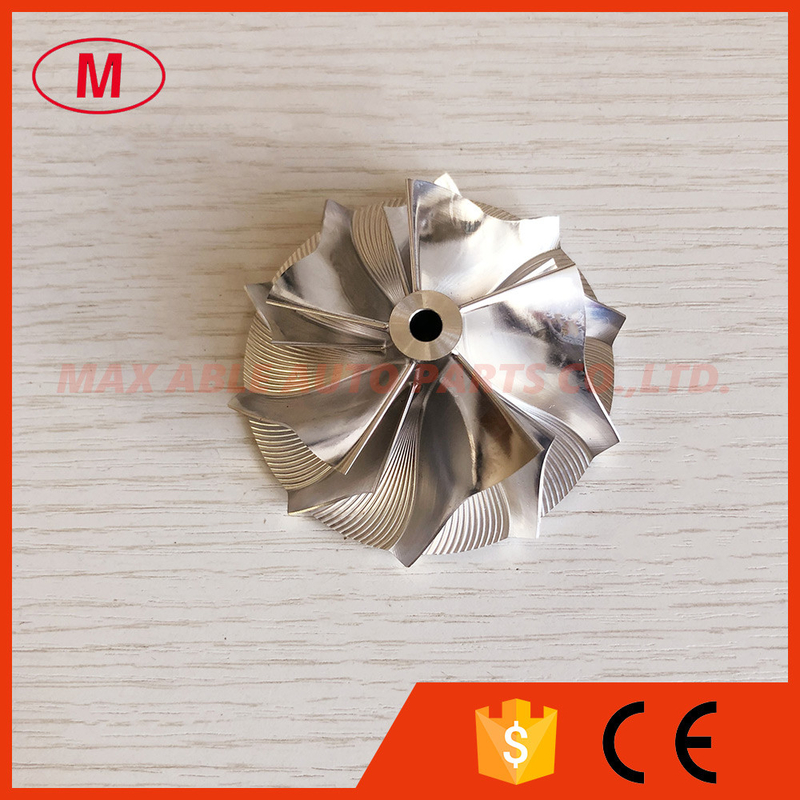

2.RHF5 reverse 52.56/68.01mm 5+5 blades high performance aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:11.60mm
Inducer:52.56mm
exducer:68.01mm
Tapered tip exducer:73.05mm
Tip height :5.36mm
superback:1.53mm
Overall height:28.70mm
Bore size:5.10mm
Trailing Angle:60
Cutback:3.0
SP height angle:-1.20
Blade height:25.20mm
Splitter height:15.90mm
5+5 blades
reverse rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
