| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD04HL 16T FORWARD

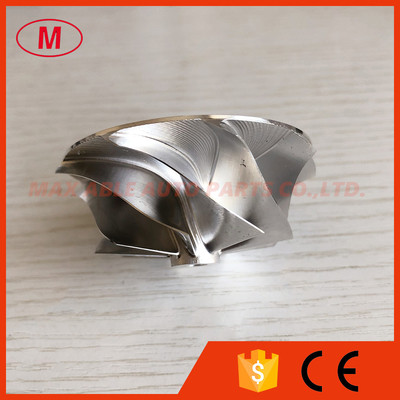

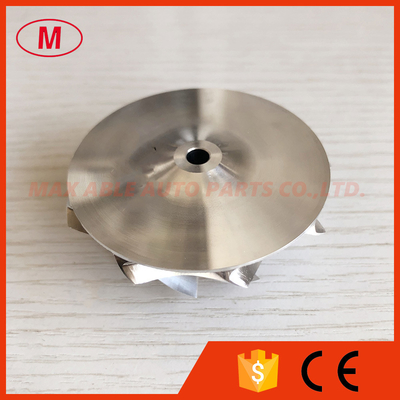

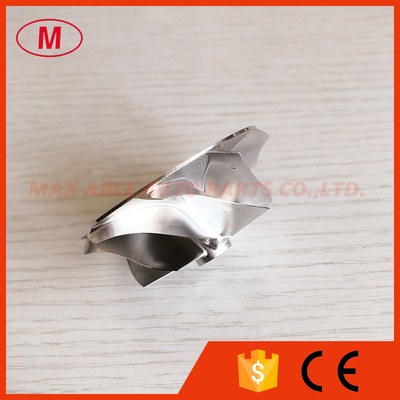

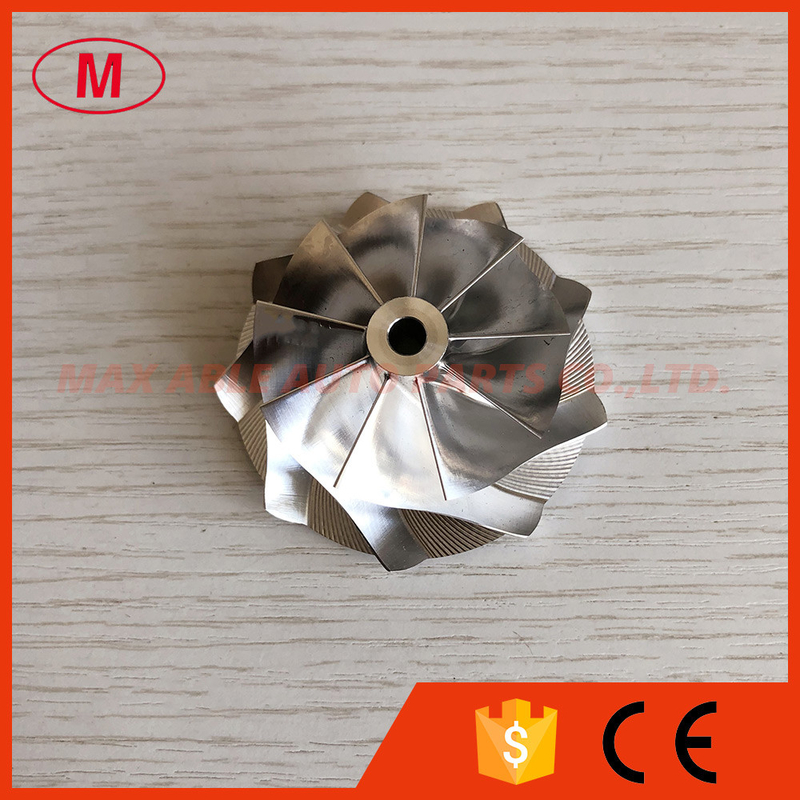

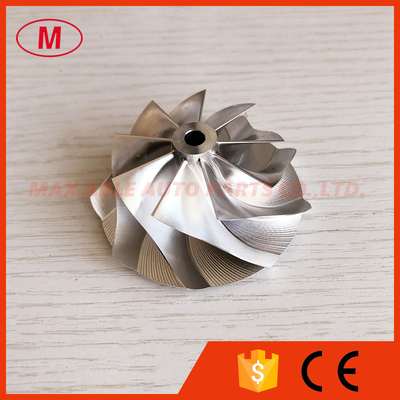

2. TD04HL 16T 49189-00016 43.43/56.02mm 9+0 blades high performance Turbo milling/aluminum 2618/billet compressor wheel for VOLVO 49189-01330/1350/1450/49377-00221
3.Size:
Nose diameter:10.73mm
Inducer:43.43mm
Exducer:56.02mm
Tapered tip exducer :60.10mm
Tip height:4.53mm
Super back:1.83mm
Overall height:25.80mm
Bore size:5.00mm
Trailing angle:35
Cutback:6.6
SP height angle:0.00
Splitter height:0.00
Blade height:22.00mm
9+0 blades
Forward rotation
Tapered tip angle:30 degree
Fit for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
